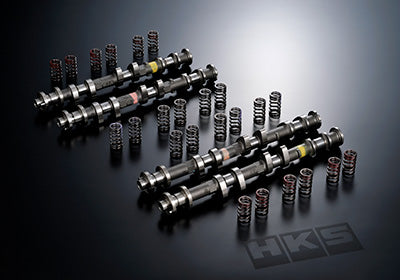

HKS Camshaft Step2+V/Spring Set for Nissan GTR R35 270In/278Ex
HKS Camshaft Step2+V/Spring Set for Nissan GTR R35 270In/278Ex
SKU: SKU: 22002-AN038
Couldn't load pickup availability
for VR38DETT/R35GT-R
This product was designed for high performance without losing the power at all engine RPM range and with well-balanced power curve. Using the Valve Spring designed for this specific engine and this newly designed and high lift camshaft can dramatically improve the performance.
Furthermore, once this product is combined with the HKS STEP2 parts and GT800 Full Turbine Kit, the boost pressure can provide smooth and quick engine power increase and achieve 850ps or more.
Features
POINT-1 HKS Original Materials
- Exclusive chill camshaft material for HKS is used.
POINT-2 Must be used with the special Valve Spring.
- Duration and valve lift were both designed larger than a stock.
- The Valve Spring included in this set must be used with this high lift camshaft.
POINT-3 Optimized Camshaft Profile
- Lift volume was decided after the cylinder head measurement and flow test.
- Duration was decided to be well-balanced with a selected lift volume on the power curve at all range.
- The camshaft profile was optimized to clear points of the valve flow and/or cam lobe friction.
POINT-4 Stock Valve Timing.
- The knock pin phase to position the cam pulley is the same as a stock so the valve timing can be same as a stock.
- The cam sensor trigger position is the same as a stock so the malfunction of the stock ECU won't happen.
POINT-5 Higher Reliability by In-house Design & Production
- HKS controls from the production, inspection, package, and shipment for quality assurance.
- MADE IN JAPAN (HKS In-house Production)
Specification
| Stock | HKS | |
|---|---|---|
| IN Valve Lift (mm) | 9.2 | 11.0 |
| EX Valve Lift (mm) | 9.5 | 11.0 |
| IN Valve Duration | 238° | 270° |
| EX Valve Duration | 248° | 278° |
| Base Radius (mm) | 35.5 | 35.5 |
| IN-VP (mm) | － | 2.6 |
| EX-VP (mm) | － | 8.7 |
STEP2 CAMSHAFT ENGINE OUTPUT
Test vehicle specification
- GT800 FULL TURBINE
- FORGED PISTON+CONROD STEP2
- SUPERIOR SPEC-R
- EVC for R35
- FUEL UPGRADE KIT
- INTERCOOLER KIT
