HKS SQV4 BOV for Nissan GTR R35 (For Use With Stock Intake Pipes)
HKS SQV4 BOV for Nissan GTR R35 (For Use With Stock Intake Pipes)
SKU: SKU: 71008-AN029
Couldn't load pickup availability

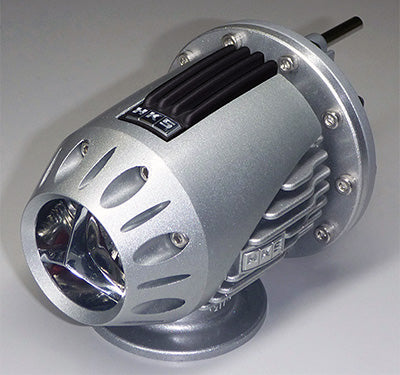

HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. The Super SQV will support new generations of turbocharged vehicles.
1.High Quality Aluminum Die-Cast Body
Silver-coated aluminum die-cast body. Combines the ultimate in looks and durability in the engine compartment.
2.High Stiffness Metal Die-Cast Valve
Secondary valve main portion is made of die cast metal. Reliable operation with beautiful looking.
3.Triple Fin design produces "Super Sound"
Triple Fins set at the center of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.
1.Pull-Type Relief Valve Operation
The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.
2.Primary Valve (Small)
Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.
3.Secondary Valve (Large)
This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.
Dual Valve Structure, Sequential System
At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.
Valves Closed
Primary Valve Opens
Secondary Valve Opens
Pull-Type blow off valves will work for any turbocharged vehicle, from stock to highly tuned.
Typical push-type blow off valves require spring load settings for each vehicle specification. If the spring load setting is too low, the valve may leak under high boost and the desired boost setting may not be reach. If the spring load setting is too strong, it may not open at low boost. The Super SQV will operate under any boost pressure setting without leaking.
SUPER SQV4 VEHICLE SPECIFIC KIT
Parts necessary for installation are included. SSQV4 can be easily installed on a vehicle with this kit.
Circulation Adapter is Included.
A triple fin and replacing type circulation adapter are included for a vehicle to install. (These parts are not included in the universal kit.)
Using this recirculation adapter allows suction return by fabricating the return piping.
(Some kits include Suction Return Kit.)
The vehicle specific Suction Return Kit (Blow-off parts) is available separately.
SUPER SQV4 UNIVERSAL KIT
SQV unit and accessories are included.
Appropriate kit parts are included to replace the SQV unit.
To install the unit to new vehicle, modification of SQV on the vehicle's side is required.
SUPER SQV4 UNIT KIT PARTS
SQV Unit, O-ring, C-ring, T-fitting φ6×φ4×φ6, T-fitting φ4×φ4×φ4, Air Filter and Tylap.
„ÄêSUPER SQV IV Black Edition„Äë
Concept and features
- HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows a stable operation accross the wide range of boost.
- Now available in new color - body and upper part painted with glossy black paint and funnel with grainy crystal black paint.
