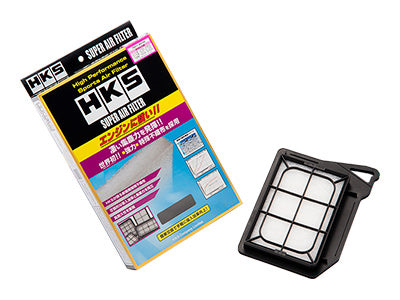

HKS Super Air Filter for Mazda RX-8 SE3P

Newly Developed Dry Non-woven Fabric Filter

• The density gradient structure where filter density becomes higher with each layer ensures all sizes of dust and other particles are caught in the most effective way. Optimizing the fiber components reduces the ventilation resistance.

Low Resistance & High Dust Collection Capacity

• Even though the intake resistance is reduced, the dust collection capacity is higher than previous model. (Collected more than 95% dust volume during in-house testing) Reliably capturing dust to provide clean air to the engine.

Long-term Low Resistance

• Even after long-term use of the filter, the intake resistance stays as low as new.

Filter Specifications

	Super Air Filter	Super Hybrid Filter
Filter
Material	Monolayer Polyester Non-woven Fabric (Density Gradient Structure）	Polyurethane Foam (Coarser&Thin Layer) + Nylon Woven Fabric
Color	White	Yellow Green
Thickness	25mm ±3mm ※1	20mm ±3.2mm

※1. Due to the thickness increase, the gap between the upper and lower frame may be too large to fit. If this is the case, push the frame in to install the filter.

Filter Structure Comparison

• A pleated type sports filter usually collects various sizes of dust on its surface; therefore, air passage becomes narrower which easily causes filter clogging even initial ventilation resistance is low.
• HKS Super Air Filter utilizes the density gradient structure where filter density becomes higher with each layer ensures all sizes of dust and other particles are caught gradually which maintains proper air passage resulting in a long product life.

Super Air Filter Replacement

Super Air Filter replacement. Easyily remove the old filter to replace the new one without changing the frame.
3 sizes (S, M and L) avaible for cutting.

70017-AK101„ÄÄS Size (255X143)

Compatible with
70017-AD102	70017-AN101	70017-AS106
70017-AD103	70017-AN103	70017-AS107
70017-AH108	70017-AN107	70017-AT112
70017-AH110	70017-AN108	70017-AT117
70017-AH113	70017-AS101	70017-AT120
70017-AH114	70017-AS102	70017-AT123
70017-AH116	70017-AS103	70017-AT127
70017-AH117	70017-AS104	70017-AZ101
70017-AH118	70017-AS105

„ÄÄ„ÄÄ„ÄÄ„ÄÄ Doesn't require cutting

70017-AK104　M2 Size（255×232）

Compatible with
70017-AF101	70017-AT104	70017-AT130
70017-AH104	70017-AT111	70017-AT131
70017-AH106	70017-AT115	70017-AZ102
70017-AH112	70017-AT116	70017-AZ108
70017-AH115	70017-AT121	70017-AZ109
70017-AM105	70017-AT122	70017-AZ110
70017-AS108	70017-AT124

70017-AK103„ÄÄL Size (345X197)

Compatible with
70017-AH111	70017-AT114	70017-AZ106
70017-AM107	70017-AT119	70017-AZ107
70017-AN104	70017-AT126	70017-AZ111
70017-AN105	70017-AZ103
70017-AT105	70017-AZ104

„ÄÄ„ÄÄ„ÄÄ„ÄÄ Doesn't require cutting

Doesn't require cutting

1. Remove Super Air Filter from a vehicle.

2. Disassemble Super Air Filter frame and dispose an old filter. In case if the frame uses metal clips, undo metal clips first, then proceed to removing the filter. Please be careful not to damage the frame.

3. Prepare a new filter by cutting a replacement filter material (this product), if necessary. (Details below)

4. Fit a prepared filter into the frame. Part with letters [‚óã‚óã‚óã‚óã-T] should be on the top of a coarse filter surface. Confirm that there are no gaps between the filter and frame sides.

5. Assemble the frame. In case if the frame uses metal clips, use metal clips to fixate the frame.

6. Install Super Air Filter Assembly into vehicle.
You may need to press on the assembly to fixate the frame when installing, as there might be a gap due to difference in thickness of the filter inside the frame in top and bottom part.

Instructions for Filter Cutting:

a. Lay old filter on top of the new filter material.

b. Trace edges of an old filter to draw a line for new filter with oil based ink pen.

Rough/Coarse Surface should face air inlet side, Finer surface should face engine side

c. Use drawn lines to cut out a new filter
