Ohlins Advanced Trackday Coilovers for BMW M4 (F82)

The ultimate choice for track day fans, these complete sets feature Ohlins TTX® twin-tube technology adjustable front struts and rear shock absorbers designed and tuned for the corresponding car model. Each set is designed to be used with model-specific, high-performance Ohlins front and rear top mounts, and front drop links.

Ohlins TTX dampers offer separate adjustability in compression and rebound as well as spring preload to ensure a wide range of settings for track and road performance. The complementary high-performance adjustable (camber and caster) front top mounts, rear top mounts and adjustable drop links are equipped with spherical bearings. Adjustable drop links - also equipped with spherical bearings - provide even greater adjustability for discerning drivers. All sets are designed to accommodate popular wheel sizes and clearances and are tested and validated for use with R-compound tyres.

The TTX46 front and rear dampers are used with great success in the GT4, TCR and WTCR Racing. The 2019 WTCR team championship was won with the same type of dampers.

General Features

• TTX technology
• 2-way adjustable
• Height adjustable
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty

Features Front

• McPherson strut, upside down
• Twin-tube technology
• Separate compression and rebound adjusters
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• Aluminium Top Mounts with adjustable camber

Features Rear

• Conventional shock absorber
• Twin-tube technology
• Separate compression and rebound adjusters
• Spring preload adjuster
• Approx. 20 mm lower than standard with recommended setup
• New Solid top mount

Included Parts

• 4 x Shock Absorbers
• 4 x Springs
• 4 x Helper Springs
• 2 x Aluminium Top Mounts with adjustable camber
• 2 x Solid rear top mounts.
• 4 x Adjustable sway bar end links
• C-Spanner (for spring preload adjustment)

Fitment: 2014-2020 BMW M4 (F82)

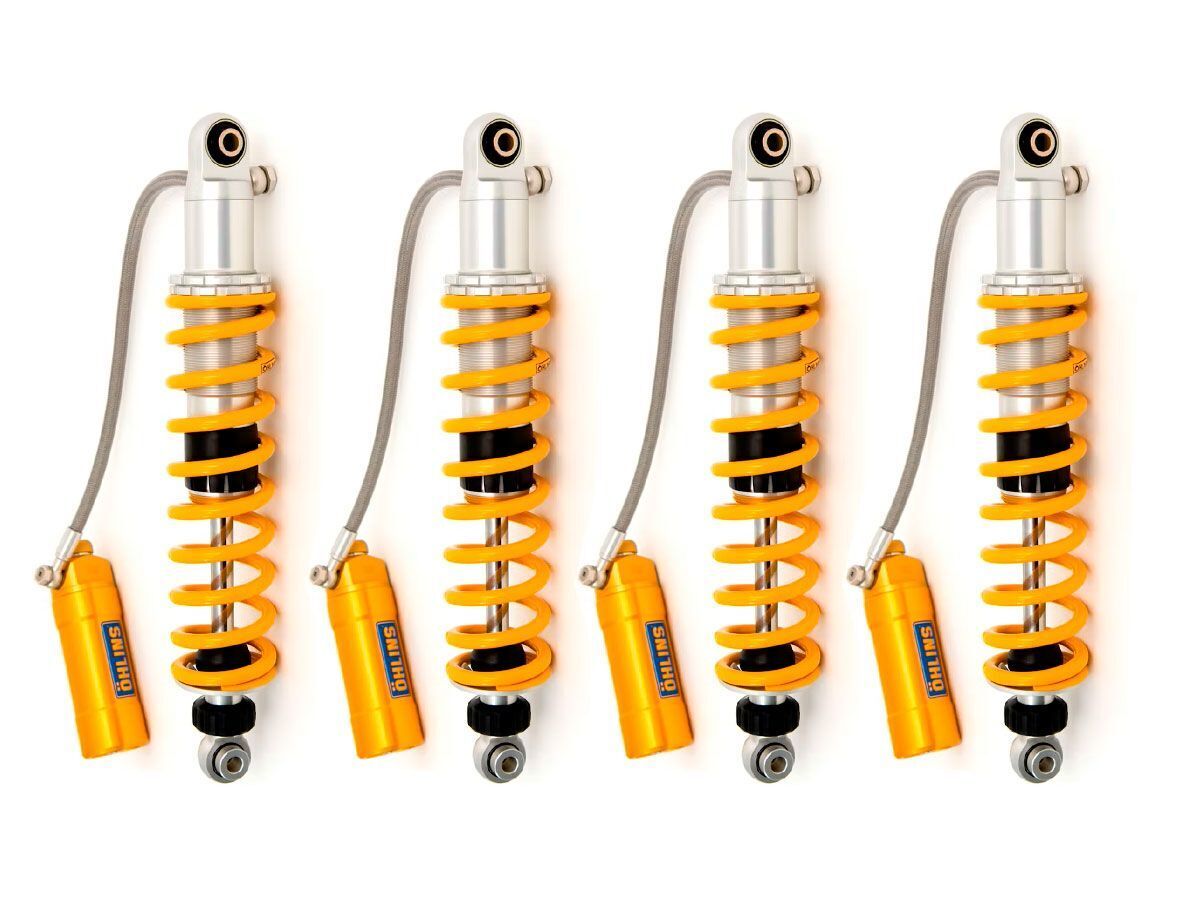

*Image is for reference only and may not show exact kit being sold
