P3 Gauges V3 OBD2 Gauge for BMW 6 Series F12/F13/F06 (2011-2018)

P3 V3 OBD2 Gauge Basic Features

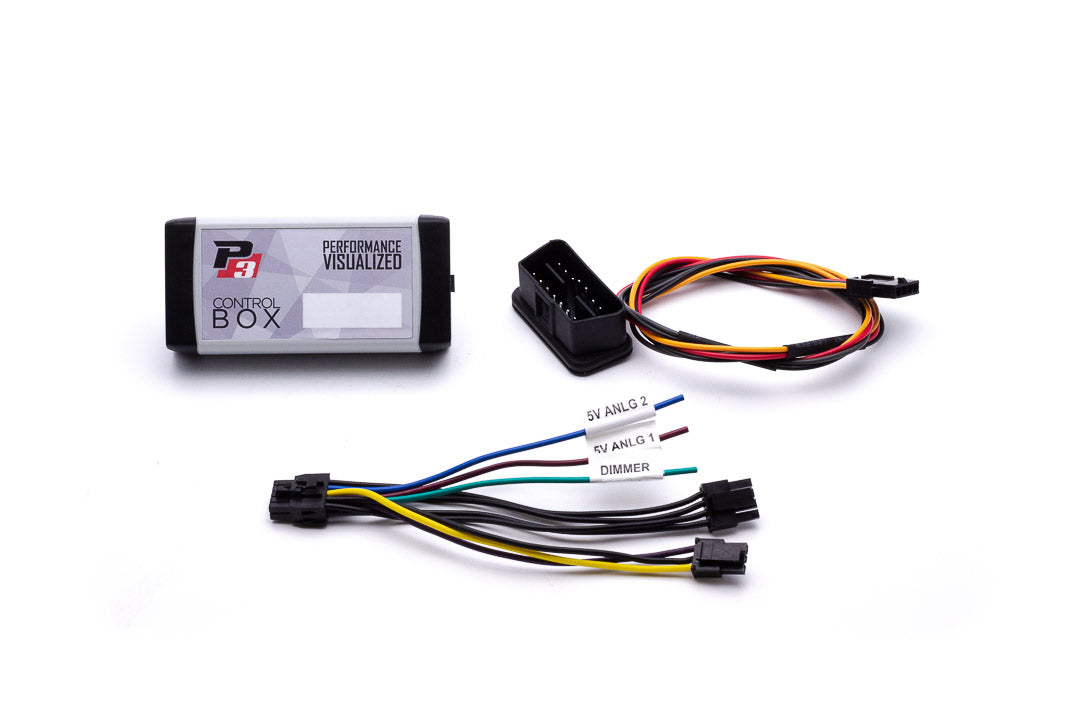

• Plug and Play Install - plugs directly into your OBD2 port (Want to keep your OBD2 port open? The P3 hard-wire harness kit also available)
• OEM Integration¬†- installs in your vent for a sleek install while retaining air flow
• Versatility¬†- read boost from multiple OEM sensors through OBD2 port or using optional P3 analogue boost sensor
• Code Reading/Clearing¬†- read and clear diagnostic trouble codes (DTCs) on the fly

P3 V3 Gauge Readouts (all readouts can be individually configured to read in either Imperial or Metric units)

• Boost (via OBD2 port using OEM sensors or P3 analogue boost sensor)
• Coolant temperature
• Air/Fuel ratio (AFR or Lambda)
• Vehicle speed¬†(can be calibrated in 1% increments from -9% to +20%)
• Intake air temperature
• Throttle angle
• Ignition timing
• Engine RPM
• Exhaust gas temperature
• Battery voltage
• Programmable shift light
• analogue input 1¬†(brown wire) can allow gauge to read any 0-5 volt linear output sensor
• analogue input 2¬†(blue wire) can allow gauge to read any 0-5 volt linear output sensor
• Acceleration timers¬†(0-60mph/0-100mph/60-130mph)
• Braking timers¬†(60-0mph/100-0mph)

Optional Add-Ons

• P3 analogue Boost sensor¬†- plugs directly into gauge harness, no wiring required)
• Boost tubing kit¬†- Approx. 5' of 5/32" O.D. flexible plastic boost tubing with vacuum "T" and 3 sections of 5/32" I.D. vaccum hose. Includes 3 zip ties
• P3 ESVA (Ethanol Sensor Voltage Adaptor)¬†allows your gauge to read ethanol content and fuel temperature directly from the common Continental/GM flex fuel sensor.¬†*Ethanol sensor NOT included
• Trim Removal Kit¬†- this tool kit will help you remove your vent and interior trim while minimizing the chance of scratching or damaging your trim
• OBD2 Splitter¬†- attach multiple devices to your OBD2 port.¬†*some devices will not function while another device is attached to the OBD2 port
