TEIN RX1 Coilovers for Toyota GT86 ZN6/ZNA (12-21)

The TEIN RX1 coilover is equipped with a new feature; the Hydraulic Bump Stopper (HBS) which has been tested and proven effective in the world's harshest motorsports including World Rally Championship and European Rally Championship.

When a lowered vehicle goes over big bumps, urethane or rubber bump stopper often causes a big upward jolt and/or rebound and can disturb controllability. On the TEIN RX1, HBS is mounted inside the shock absorber, effectively generating damping force near and/or at full-bump, to absorb big impact smoothly.

Specifications

• Full-length ride height adjustment feature - Adjustment with little or no change in ride quality
• Twin-tube structure for low resiliency and securing sufficient stroke
• Damping force adjustment system - 16-level Linear damping force adjustment system
• Complete kit with upper mount - Exclusively designed upper mounts are included (except some models)
• Complete suspension kit of 4 Shock absorbers and springs
• New hydraulic bump stopper (HBS)
• Compatible with EDFC Series to enable in-car damping force adjustment (purchased separately)
• Highly durable and reliable
• Thorough-going rust proofing
• Highly rigid bracket and shell case
• Smooth ride height adjustment and unique adjusting wrench
• No-sag springs
• High-spec damper oil
• Available for overhaul and re-valving

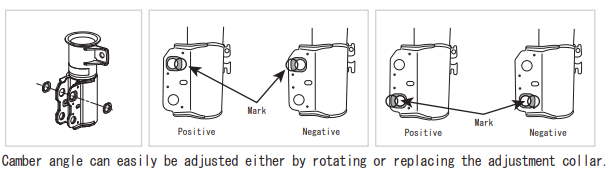

• New for the RX1: Front camber adjustment by bottom lower bracket
• Front Spring Rate: 6 kg/mm
• Rear Spring Rate: 6 kg/mm

Fitment: 2012-2021 Toyota GT86 2.0 RWD ZN6/ZNA

Note: Rear: Interior needs to be cut or removed to avoid interference
