Wagner Tuning Audi A4 B9 & A5 F5 3.0TDI Competition Intercooler Kit

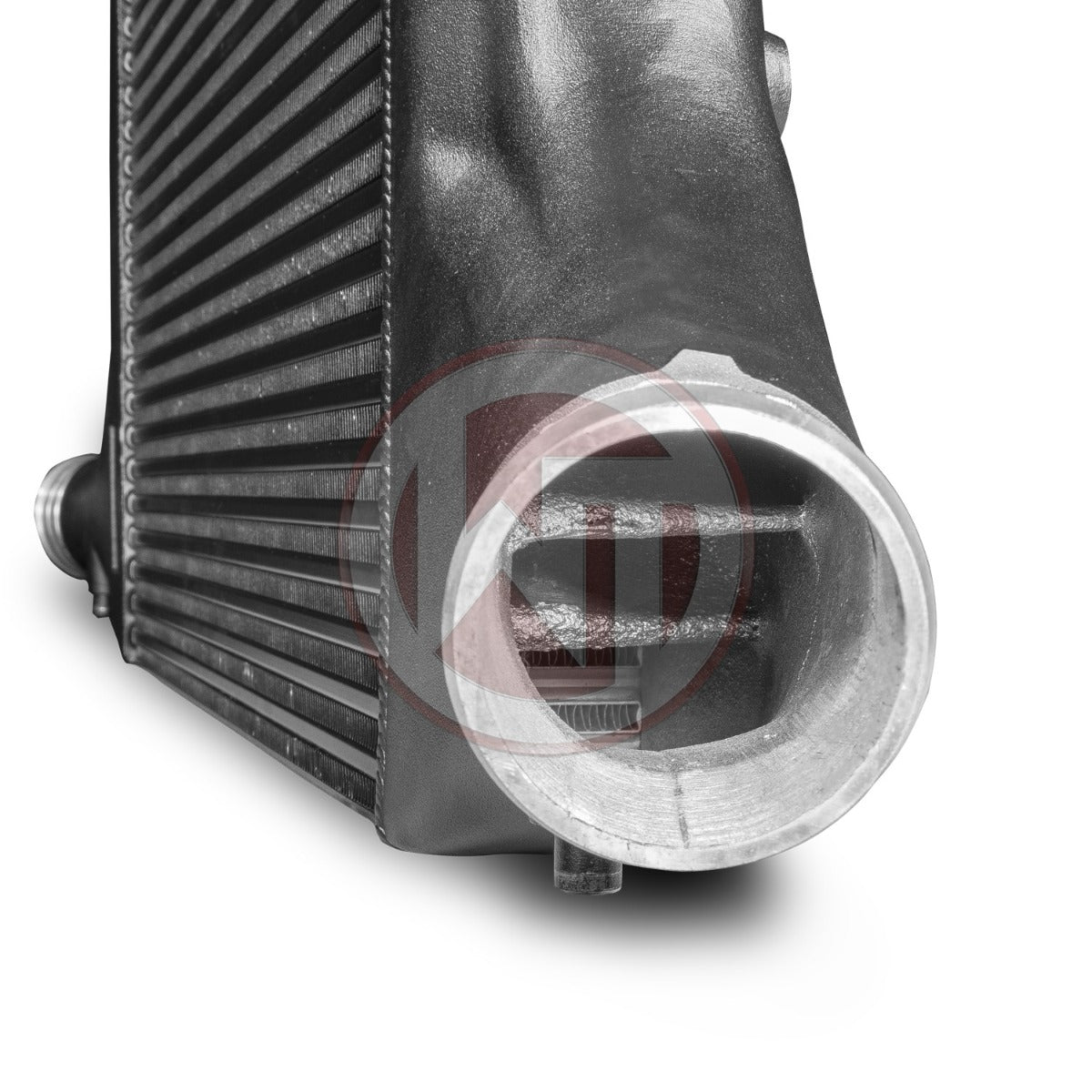

The high performance intercooler core provides a 134% larger frontal area and 105% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminium end tanks optimisedby CFD for best possible internal airflow.

The connection diameters are √ò62mm at the intercooler inlet and 67mm at the intercooler outlet.

The result is excellent cooling properties and a lot less pressure drop then the stock intercooler. Despite of it´s size the weight of the complete intercooler is only 9,5kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissapating character. Optimal cooling with clearly more power. Kit is ready for installation, 100% plug and play. All of our products undergo rigorous quality control.

Dimensions (Stock Intercooler)

720mm x 145mm x 80mm
V=8,35 Liter
A=1044 cm²

Dimensions (WAGNERTUNING Intercooler)

550mm x 445mm x 70mm
V=17,13 Liter
A=2447 cm²

Kit Includes

Intercooler (coated black)
Silicone hose (black)
Mounting material
Installation instruction

Fitment

Audi A4 B9 3,0,0TDI 160-200KW/218-272PS (2015-2018)
Audi A4 B9 45TDI 170KW/231PS (2019+)
Audi A4 B9 50TDI 210KW/286PS (2019+)
Audi A5 F5 3,0TDI 160-210KW/218-286PS (2017-2018)
Audi A5 F5 45TDI 170KW/231PS (2019+)
Audi A5 F5 50TDI 210KW/286PS (2019+)
