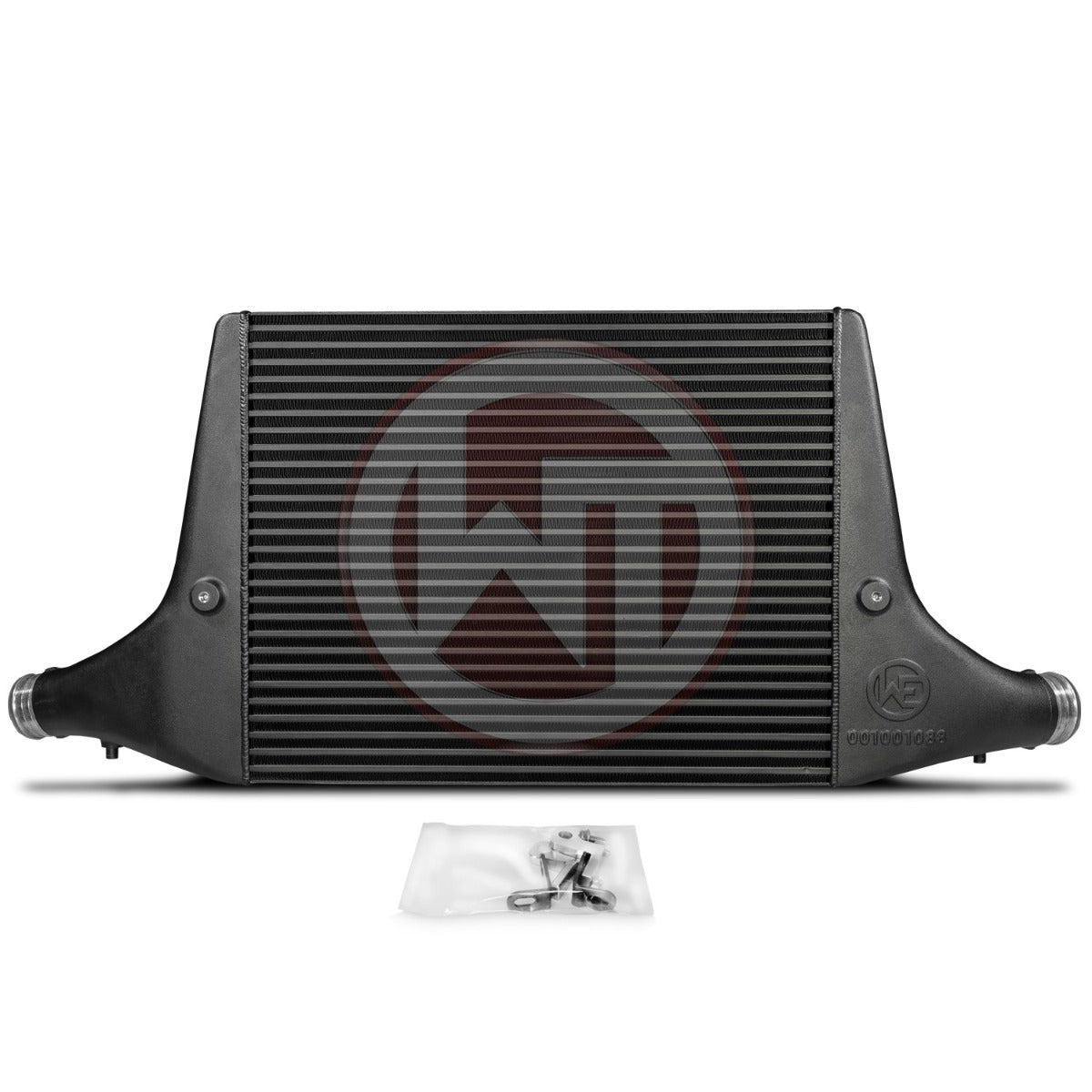

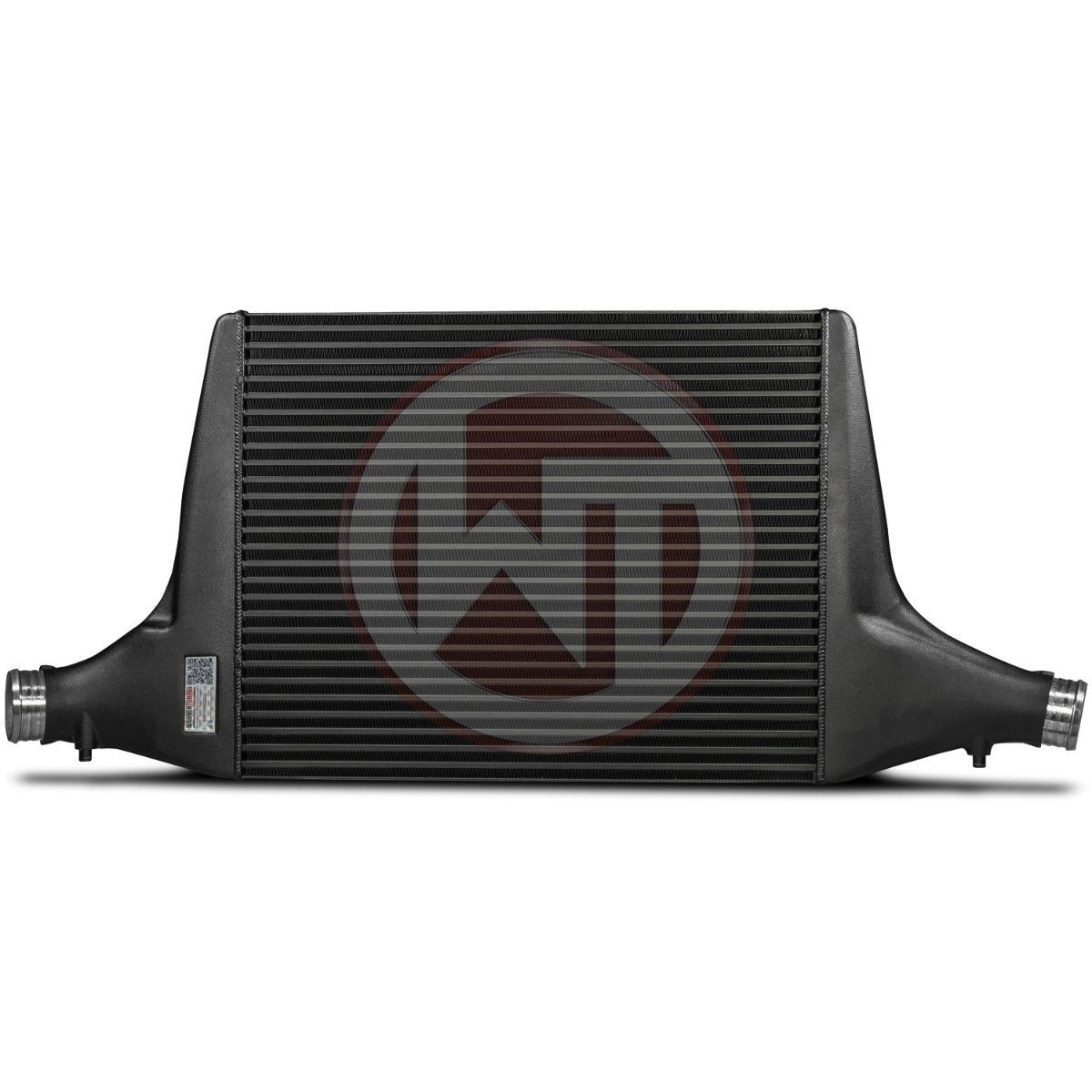

Wagner Tuning Audi S4 S5 (B9) Competition Intercooler Kit

The Audi S4 B9 3.0TFSI 260KW/354PS (2016+) high performance intercooler core provides a 134% larger frontal area and 105% more volume compared to the stock mounted intercooler. Along with this Wagner's engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.

We use our award winning WAGNERTUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminium end tanks optimised by CFD for best possible internal airflow.

The result is excellent cooling properties and a lot less pressure drop than the stock intercooler. Despite its size the weight of the complete intercooler is only 9.5kg. This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing. All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation, 100% plug and play. All of our products undergo rigorous quality control.

Stock Intercooler Dimensions

720mm x 145mm x 80mm
V=8,35 Litre
A=1044 cm²

WAGNERTUNING Intercooler Dimensions

550mm x 445mm x 70mm
V=17.13 Litre
A=2447 cm²

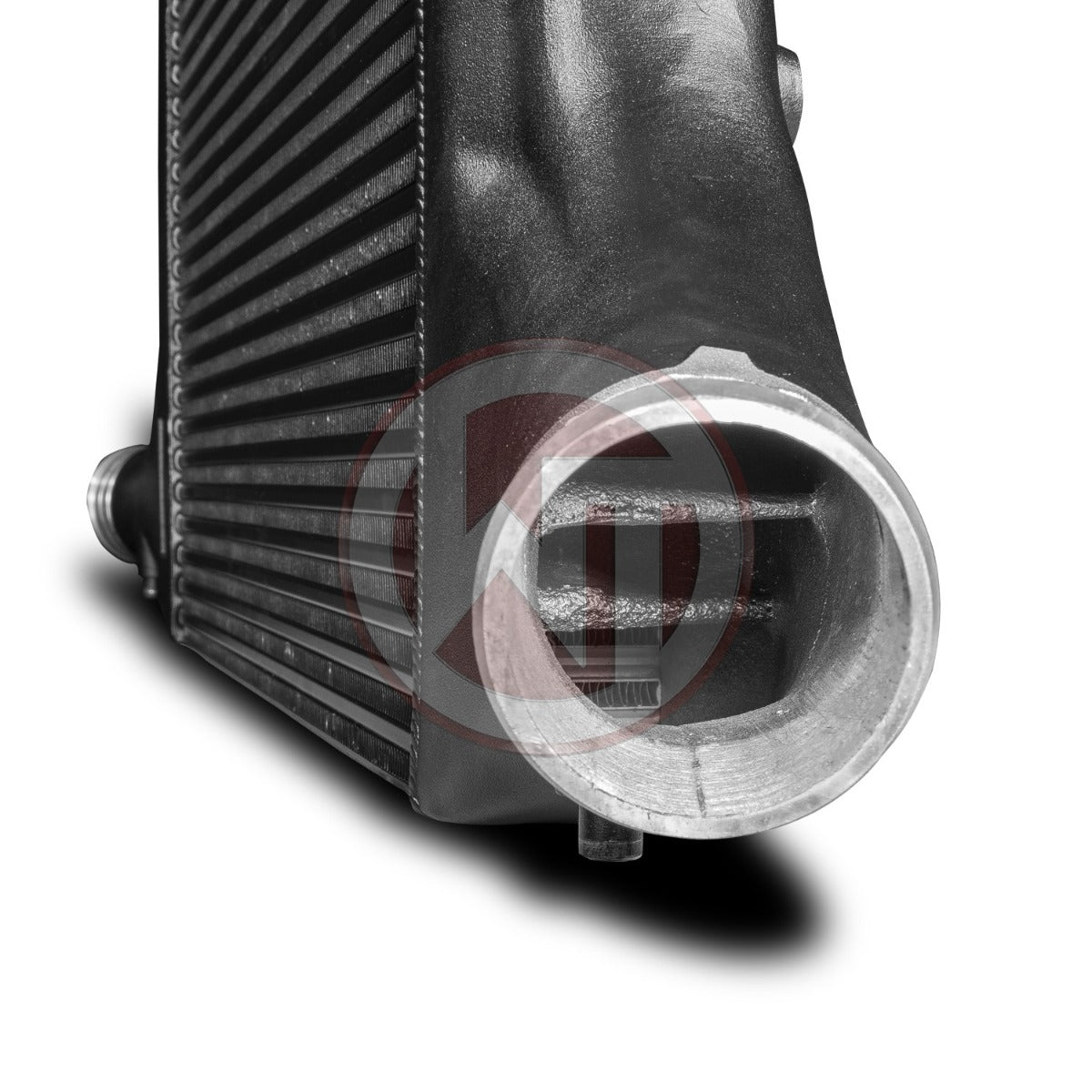

The connection diameters are √ò62mm at the intercooler inlet and √ò67mm at the intercooler outlet.

Kit Contains

Intercooler (coated black)
Mounting material
Installation instruction
