Wagner Tuning BMW 335d E90 E91 E92 E93 EVO3 Competition Intercooler Kit

Competition Intercooler Kit EVO3 for BMW 335d E90/91/92/93

The high performance intercooler core provides a 133% larger frontal area and 183% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.

We use our award winning WAGNER TUNING Competition Intercooler Core which is made specifically for this application. Constructed of the highest quality Tube Fin intercooler cores with inside turbulators combined with cast aluminium end tanks optimised by CFD for best possible internal airflow. The stock click connections have been eliminated and increased to a connection diameter of √ò70mm/2.75" for Inlet and Outlet, so this kit comes with reinforced silicone hoses. The result is excellent cooling properties and a lot less pressure drop than the stock intercooler.

This Intercooler Kit is the best choice when it comes to performance gains and low intake temperatures and also the right thing for racing.

Features

• All of our intercooler use an anti corrosion protective coating with perfect thermal heat dissipating character
• Optimal cooling with clearly more power
• Kit is ready for installation, 100% perfect fit
• Easy installation, only some little adjustments at the plastic cooler support are necessary
• All of our products undergo rigorous quality control
• Despite its bigger size, the weight of the complete intercooler is only 13.2kg.

Stock Intercooler Dimensions
V = 7.29 L / 433.27Inch³
A = 66300 mm² / 123.00Inch²

WAGNER TUNING Intercooler Dimensions
V = 20.65 L / 872.64Inch³
A = 154530 mm² / 177.46Inch²
Core dimensions 510mm x 303mm x 180mm / stepped, 20,65L

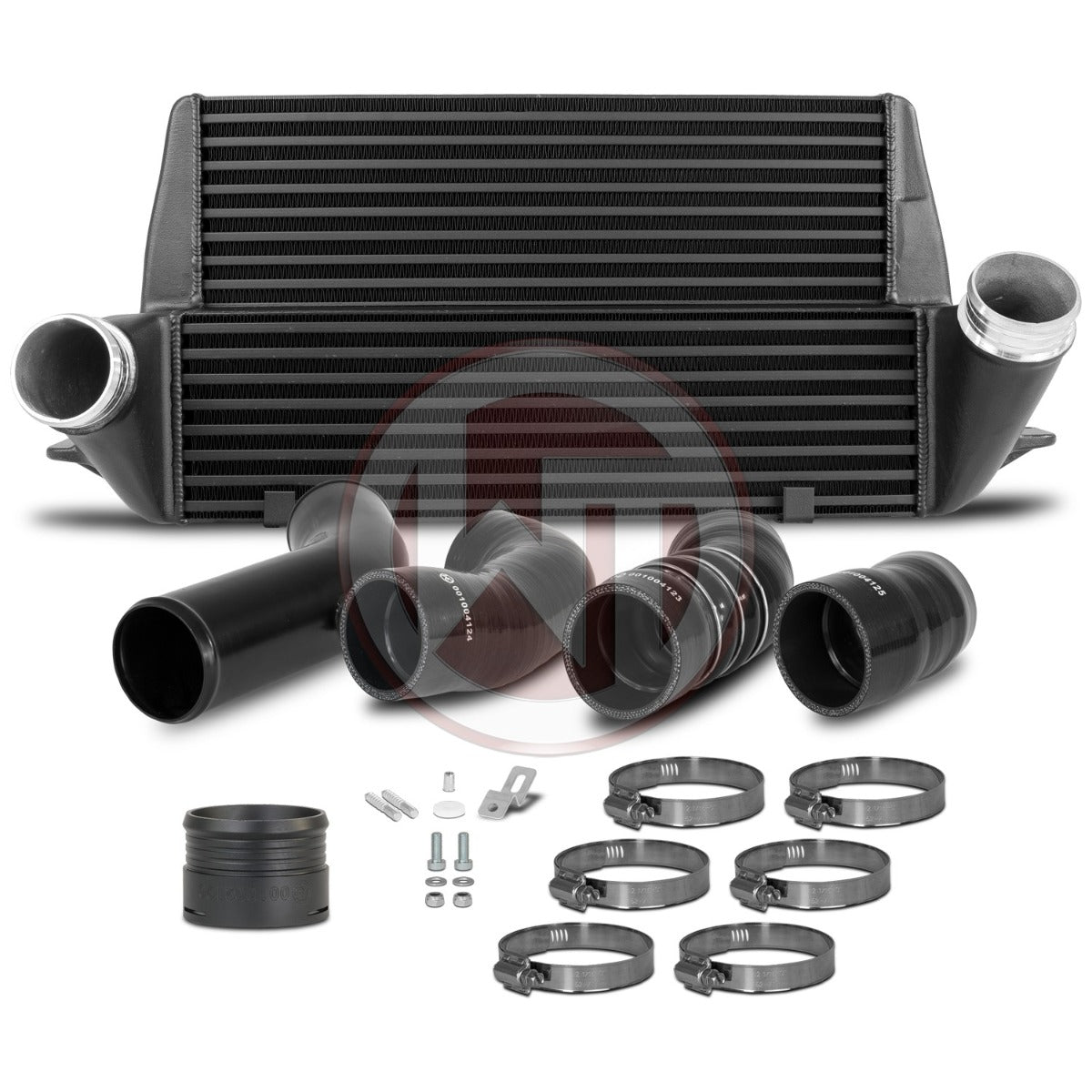

Kit Includes
Intercooler (Black)
3 x HD Silicone hoses
Aluminum adapter (anodised black)
Aluminum charge pipe (anodised black)
Mounting material
Installation instruction

Fitment: 2005-13 BMW 335d E90/91/92/93*

*Adjustments to the vehicle are necessary (see installation instructions)
