Wagner Tuning BMW M3 M4 (F80/F82/F83) Competition Radiator Kit

Wagner Tuning BMW M3 M4 (F80/F82/F83) Competition Radiator Kit
Competition Radiator Kit for the BMW F80/82/83 M3/M4

The 3.0 Litre S55B30 turbo engine for BMW M3/M4 models is equipped with an indirect charge-air cooling circuit. So the cooling of the charged air is not realized by the ambient air as cooling medium (as usual), but made with its own cooling water circuit. A reduction of the temperature of the cooling water is directly equated with an improved cooling performance of the charged air. This is exactly where the advantages of the WAGNER TUNING upgrade water cooler comes into play.

The newly developed competition racing cores of the WAGNER TUNING high performance water coolers increase the radiator volume of the OEM water coolers by 89% for front mounted and 94% for side mounted. The calculated ratio between the inner and outer cooling surface generates a maximum heat transfer and allows at the same time enough air flow for the surrounding components (for example the engine water cooler) for its own heat exchange. The water coolers are equipped with a heat-conductive anti corrosion coating to ensure a lasting cooling effect. The plug & play installation of the system is simple and easy to perform (installation instructions included).

OEM Front Mounted Radiator Dimensions
590 x 308 x 25 mm / 23.2 x 12.1 x 1.0"
Volume = 4.5 Litres
Area = 1817 cm² / 280.7Inch²

WT Front Mounted Radiator Dimensions
568 x 468.4 x 32 mm / 22.4 x 18.4 x 1.26"
Volume = 8.5 Litres (+89%)
Area = 2660.5 cm² / 412.2"² (+46.4%)

OEM Side Mounted Radiator Dimensions
250 x 165 x 40 mm / 9.8 x 6.5 x 1.6"
Volume = 1.65 Litres
Area = 412.5 cm² / 63.7"²

WT Side Mounted Radiator Dimensions
252 x 188 x 68 mm / 9.9 x 7.4 x 2.7"
Volume = 3.2 Litres (+94%)
Area = 473.8 cm² / 73.3"² (+14.9%)

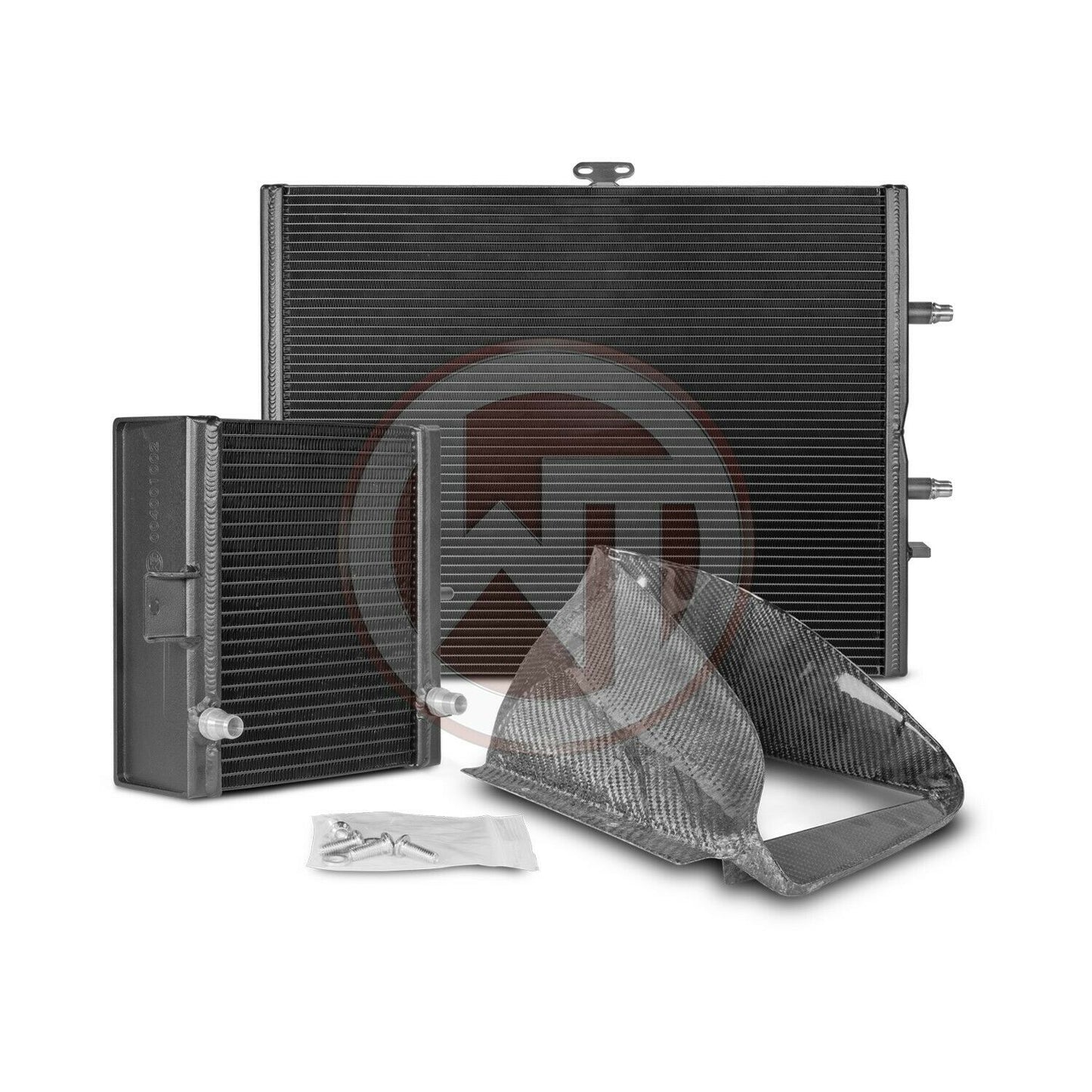

Kit Includes
Front mounted radiator (low-temperature circuit)
Side mounted radiator (low-temperature circuit)
Carbon air shroud for side mounted radiator
Mounting material
Installation instruction

Shop the full range of Wagner Tuning products and thousands of other tuning parts at ID-Workz!

PLEASE NOTE - Some Wagner products are made to order. Please allow 7-14 days for dispatch.
