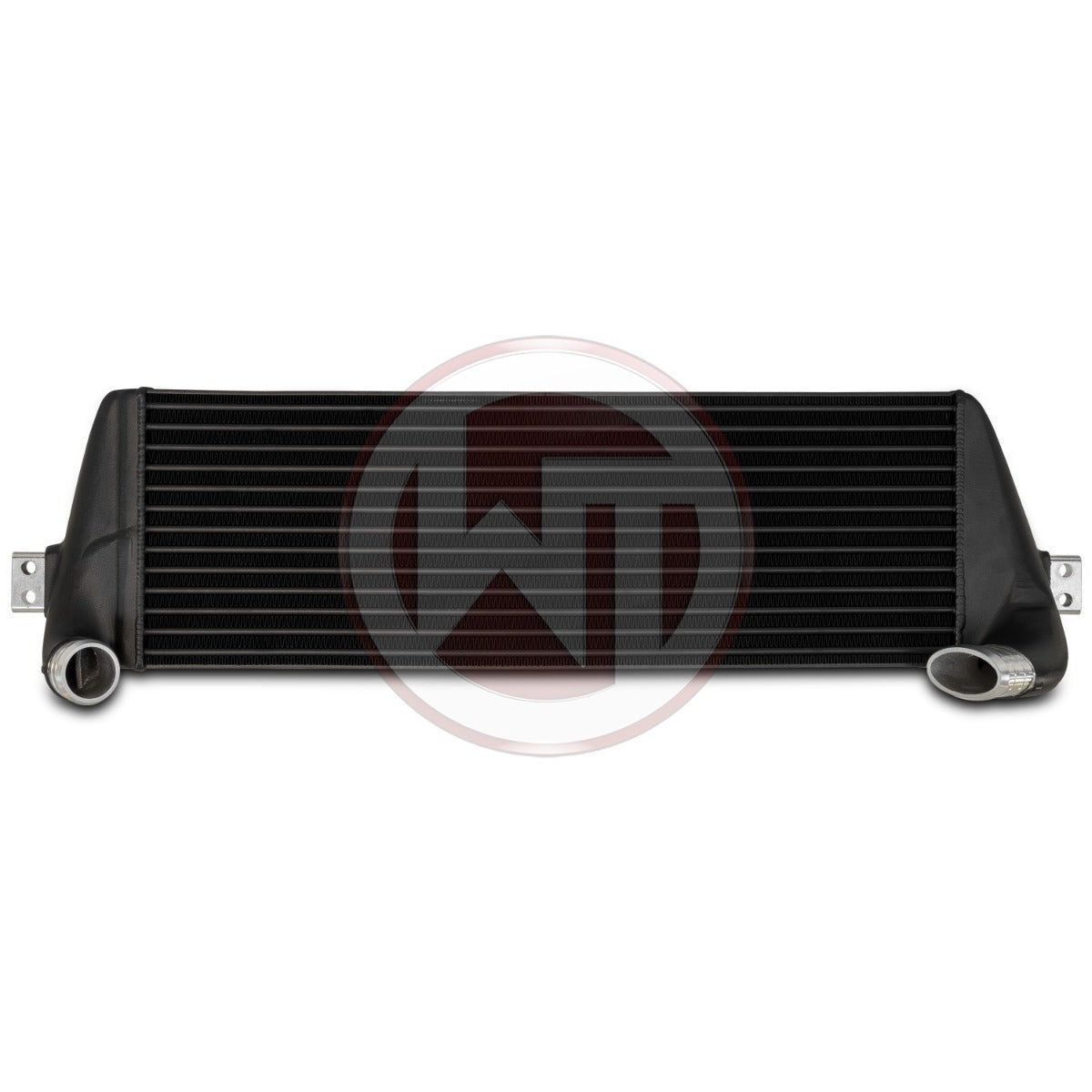

Wagner Tuning Fiat 500 Abarth (Manual) Competition Intercooler Kit

Wagner Tuning Fiat 500 Abarth (Manual) Competition Intercooler Kit

The WAGNER TUNING high performance intercooler has a new competition core (Tube Fin) which was developed especially for the requirements of the Fiat 500 Abarth. This high-performance core offers an 85% larger frontal surface and 131% more core volume compared to the stock intercooler. The aluminium cast end tanks were designed in CAD and optimised by using CFD simulations (for an ideal internal airflow).

For the best possible heat exchange, the WAGNER TUNING high-performance intercooler is installed in the front of the car, replacing the two original side intercooler. The newly developed elliptical hose connection at the outlet of this intercooler and the WAGNER TUNING silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.

An anti-corrosion coating with heat-conducting properties protects the WAGNER TUNING intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

Stock Intercooler Dimensions (2x):
190 x 175 x 64 mm
V = 4.3 Litres
A = 665 cm²

WAGNER TUNING Intercooler Dimensions:
600 x 205 x 80 mm
V = 9.8 Litres
A = 1227 cm²

Kit Includes
Intercooler (Black Coated)
Cross member (Black coated)
2 x Silicone hoses (Black)
Mounting material
Installation instruction

Fitment: 2008- Fiat Abarth 500 1.4 Turbo 99 KW/135 PS (Manual gearbox only)

Shop the full range of Wagner Tuning products and thousands of other tuning parts at ID-Workz!

PLEASE NOTE - Some Wagner products are made to order. Please allow 7-14 days for dispatch.
