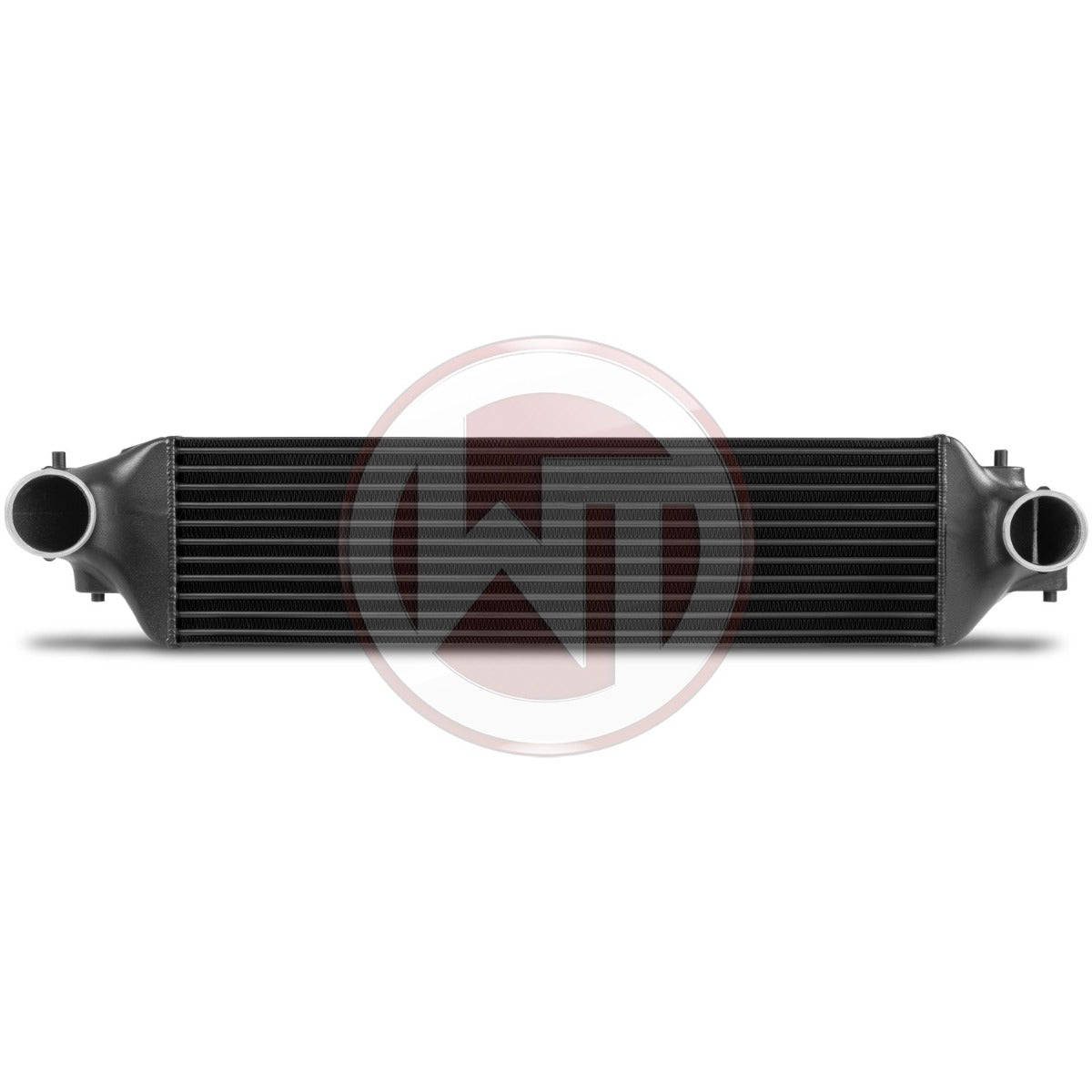

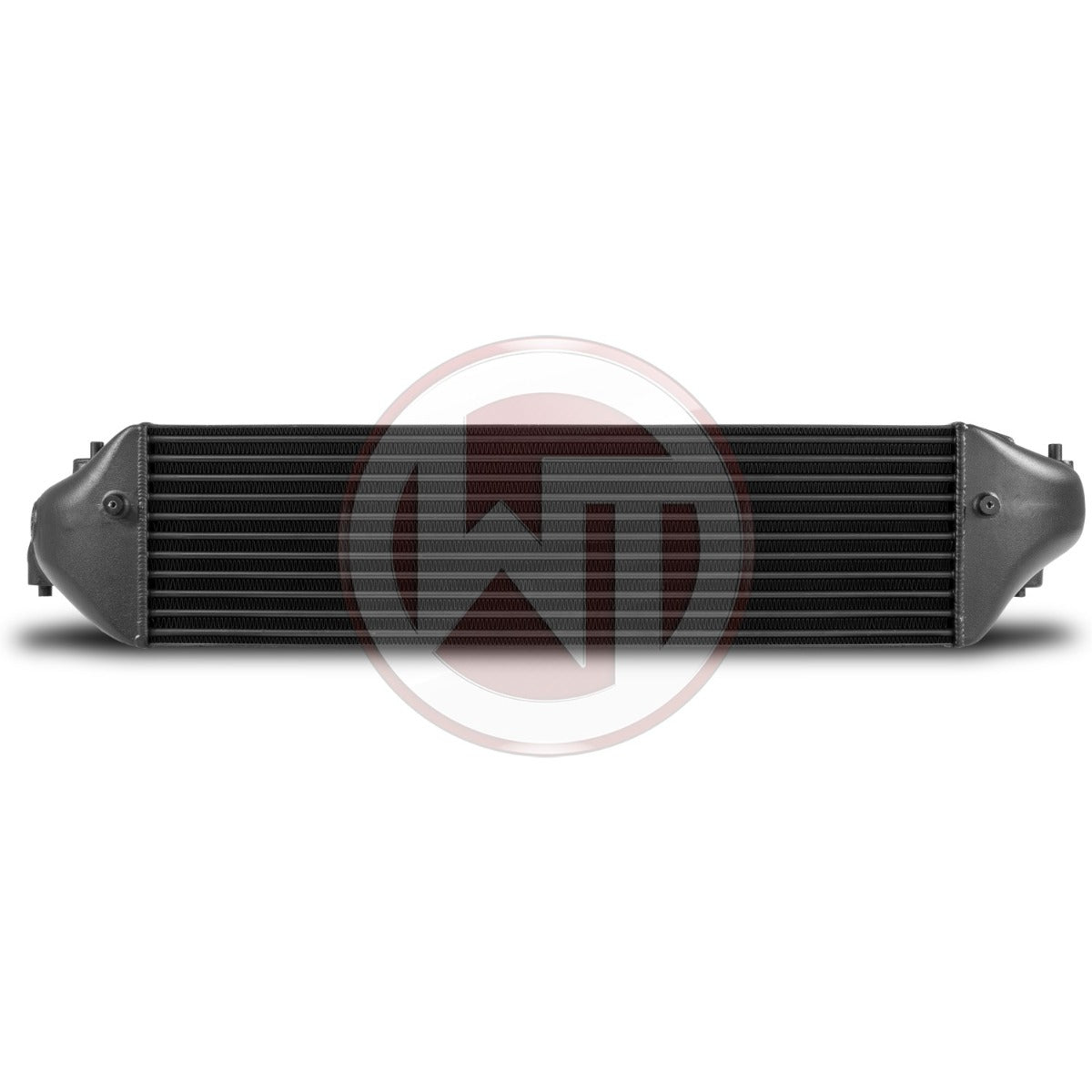

Wagner Tuning Honda Civic Type R FK8 Competition Intercooler Kit

Wagner Tuning Honda Civic Type R FK8 Competition Intercooler Kit

The Wagner Tuning high performance intercooler has got a new competition core (Tube Fin) which was developed especially for the requirements of the Honda Civic Type R FK8. This high-performance core offers an 91% larger frontal surface and 140% more core volume compared to the stock intercooler.

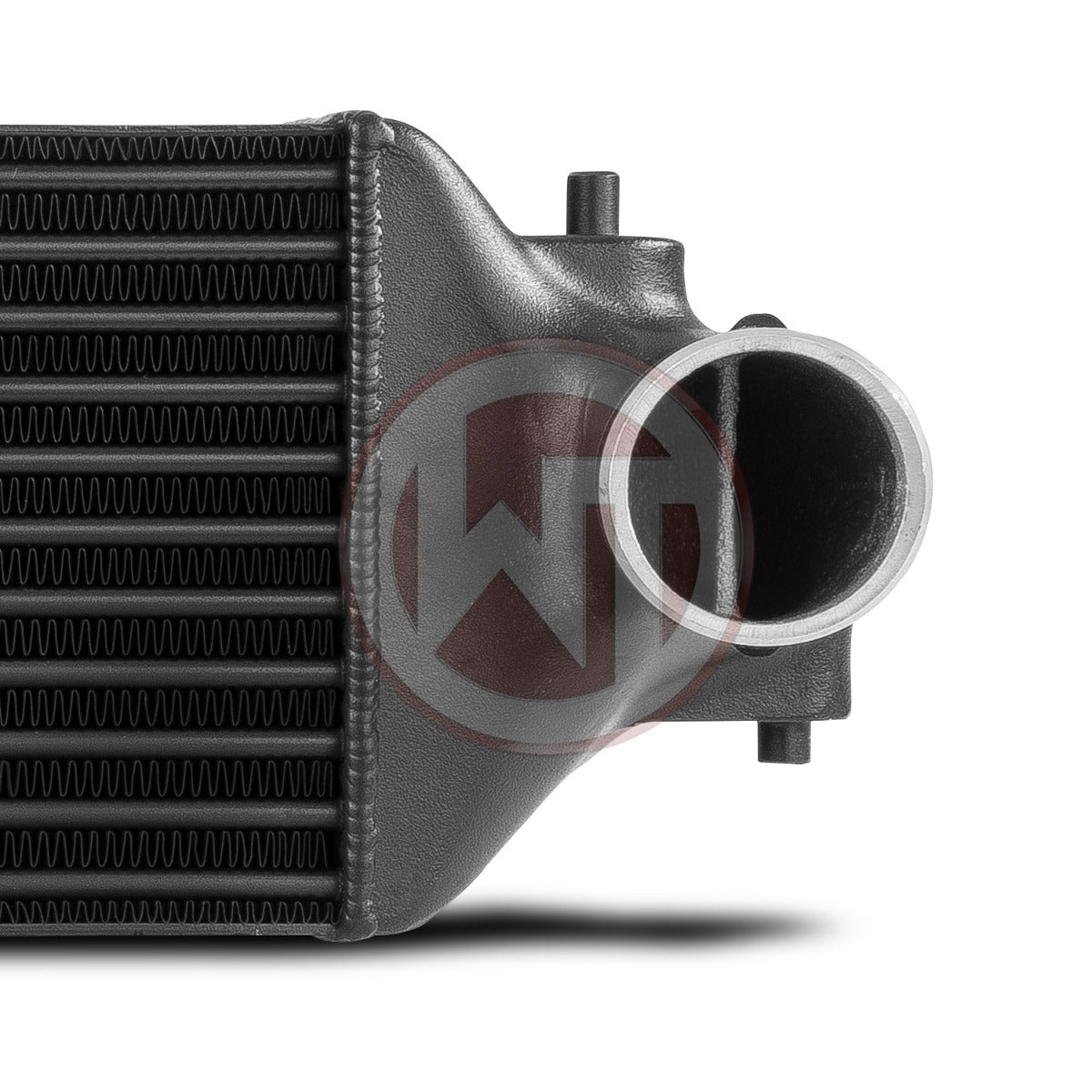

The aluminium cast end tanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensure a uniform filling of the intercooler. The result is a excellent cooling property with a minimal back pressure. The newly developed competition high performance core is very light and provides the adjoining components (for example the watercooler) enough air flow by using a specially prepared air baffle. That's why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!

An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNER TUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

Wagner Intercooler Dimensions

670 x 183.4 x 125 mm / 26.38 x 7.22 x 4.92"
V = 15.4 L / 939.76Inch³
A = 1226 cm²/ 190 Inch²
Inlet diameter: √ò65 mm/2.56" / Outlet diameter √ò70 mm/2.75"

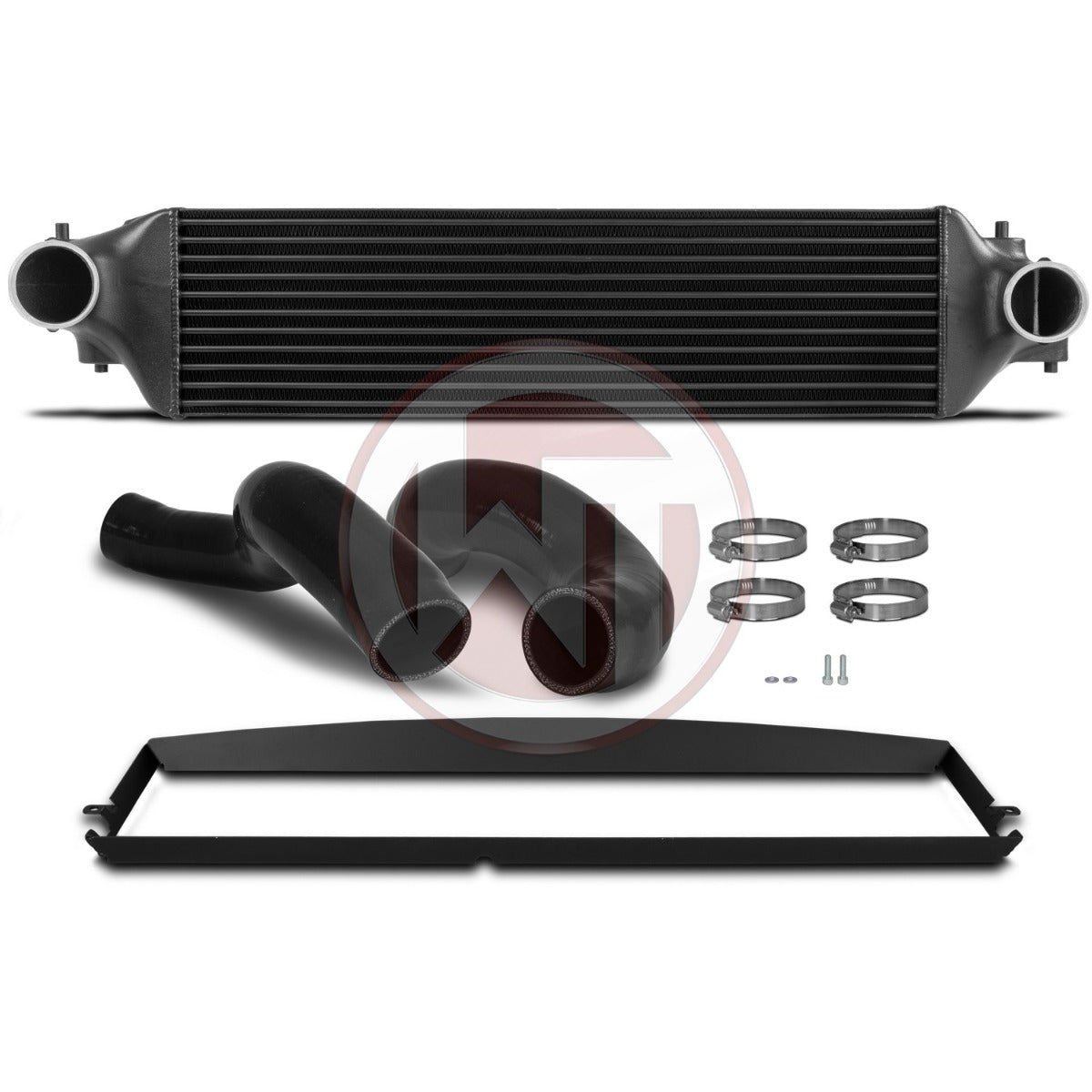

Kit Includes:
Intercooler
Air baffle
2 Silicone hoses (Black)
Mounting material
Installation instruction
Tüv certification

Fitment: Honda Civic Type R FK8

Shop the full range of Wagner Tuning products and thousands of other tuning parts at ID-Workz!

PLEASE NOTE - Some Wagner products are made to order. Please allow 7-14 days for dispatch.
