Xtreme Motorsport - 230mm Rigid Ceramic Triple Plate Clutch Kit Incl Flywheel - Toyota Supra 3.0 i Bi-Turbo (JZA80_) (02-93)

Xtreme Motorsport - 230mm Rigid Ceramic Triple Plate Clutch Kit Incl Flywheel - Toyota Supra 3.0 i Bi-Turbo (JZA80_) (02-93)

SKU: KTY23536-3E

£2,440.64 GBP
£2,440.64 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

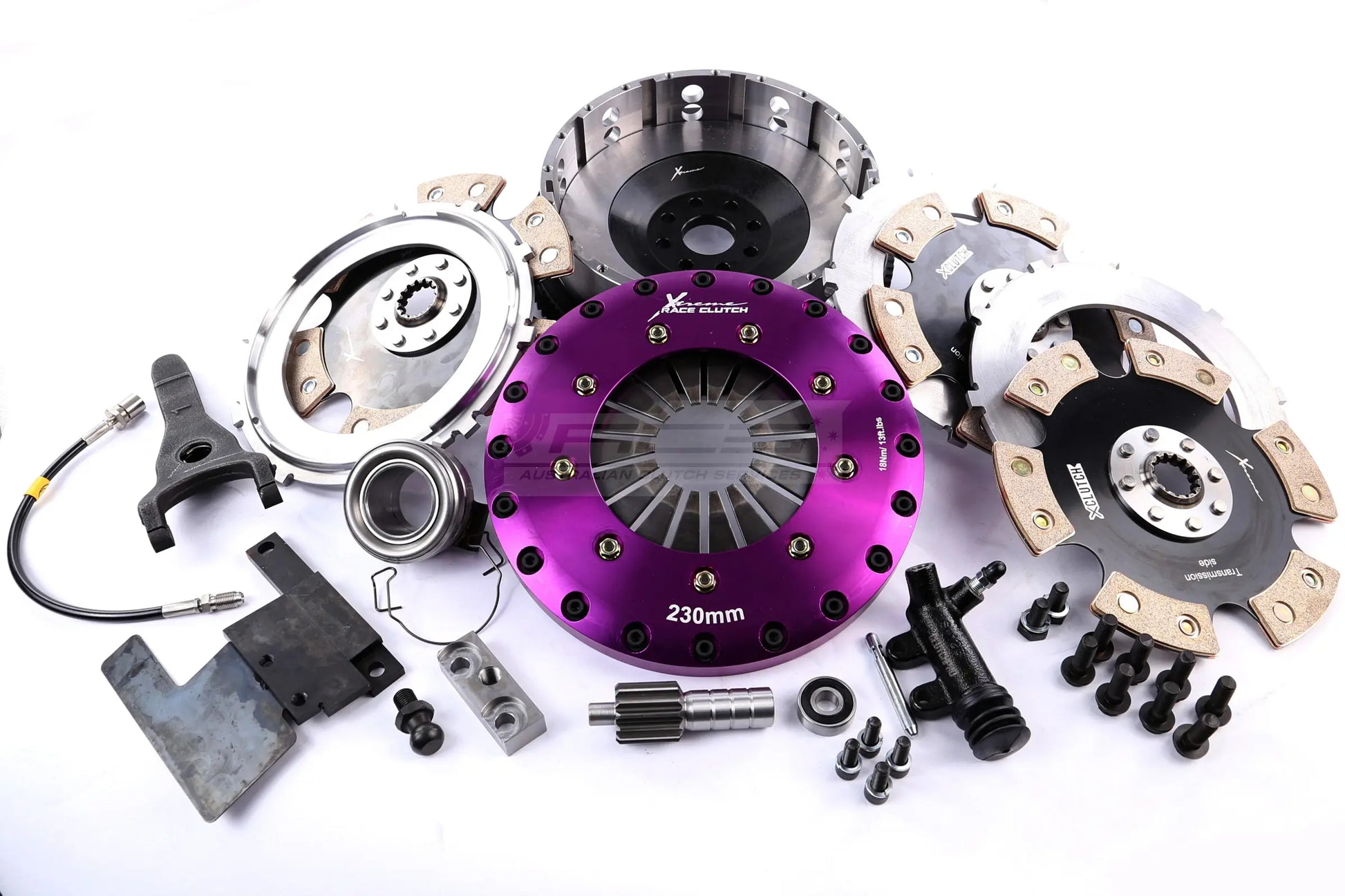

Xtreme Clutch 230mm triple plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 2700Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Applications

- Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1993.05-2002.07/2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07) , \n - Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1994.03-2002.07/2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07) , \n - Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1993.05-2002.07/2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 14\nClutch Disc Spline Diameter (mm): 32\nTorque (Nm): 2700\nFlywheel Step: +3.8mm\nDesign: Triple Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

230mm Triple Plate

Vehicle group: Toyota Supra 3.0 i Bi-Turbo (JZA80_)

Additional info: Parameter 1: 2700 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1993.05-2002.07) 2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07) Pull To Push Type Conversion 2700 Motorsport Single Mass Flywheel
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1994.03-2002.07) 2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07) Pull To Push Type Conversion 2700 Motorsport Single Mass Flywheel
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1993.05-2002.07) 2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07) Pull To Push Type Conversion 2700 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
