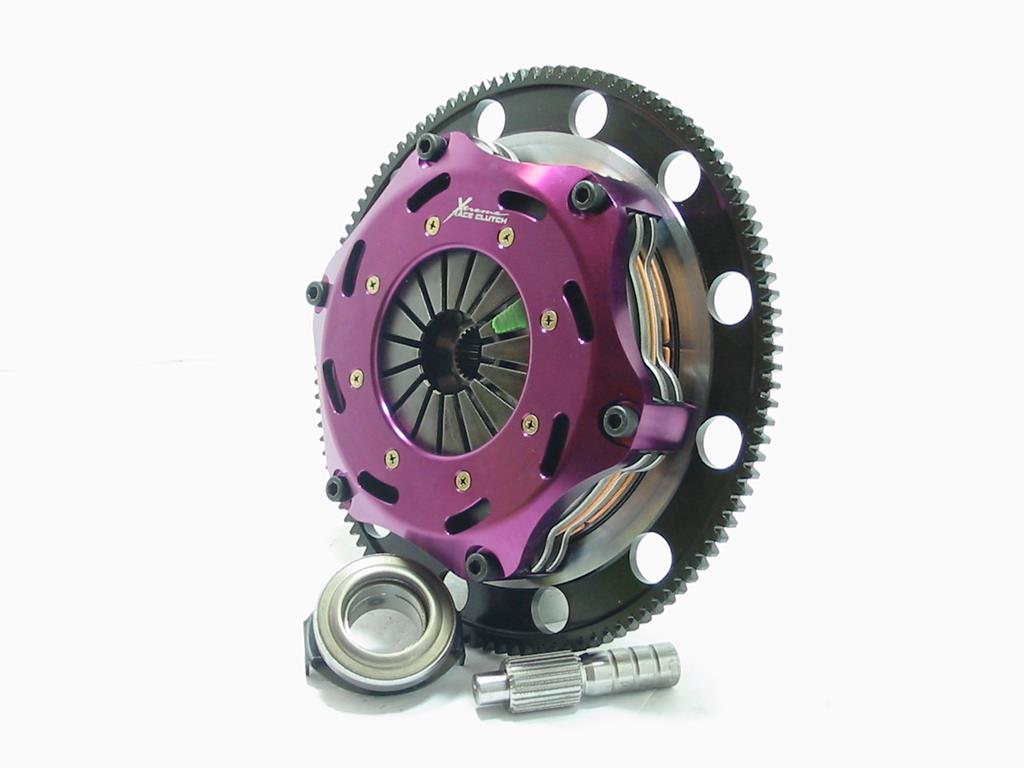

• Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Honda Civic Gen. VI (01-97)
1 1

Xtreme Performance

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Honda Civic Gen. VI (01-97)

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Honda Civic Gen. VI (01-97)

SKU: KHN18522-2E

£1,323.24 GBP
£1,323.24 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")

Applications

- Honda/Civic/Gen. V | 1.6 VTi (EG9)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - Honda/Civic/Gen. V | 1.6 VTi 16V (EG6)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - Honda/Civic/Gen. VI | 1.6 VTi (EK4)/1995.11-2001.02/B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) , \n - Honda/Civic/Gen. VI | 1.6 i Vtec (EM1)/1999.04-2000.12/B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) , \n - Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11) , \n - Honda/Integra/1.8 ESI (DB7)/1993.09-2001.08/B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08) , \n - Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11) , \n - Honda/Integra/1.8 VTiR (DC2)/1993.07-1999.11/B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11) , \n - Honda/Civic/Gen. VI | 1.8 16V (MB6)/1997.01-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) , \n - Honda/Civic/Gen. VI | 1.8 16V (MC2)/1998.04-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) , \n - Honda/Integra/1.8 Type-R (DC2)/1997.11-2001.10/B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10) , \n - Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1995.10-2001.12/B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12) , \n - Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1999.01-2002.02/B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02) , \n - Honda/CR-V/2.0 (RD1)/1999.04-2002.02/B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) ,

Additional Info

Clutch Disc Diameter (mm): 184\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 26\nTorque (Nm): 1220\nFlywheel Step: +2.5mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: 900Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

184mm Twin Plate

Vehicle group: Honda Civic Gen. VI

Additional info: Parameter 1: 1220 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Honda Civic Gen. VI | 1.8 16V (MB6) (1997.01-2001.02) B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) 1220 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.8 16V (MC2) (1998.04-2001.02) B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) 1220 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.6 VTEC Type R (EK9) (1997.08-2000.09) B16B 1595 Petrol 136 kW 185 BHP (1997.08 - 2000.09) 1220 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.6 VTi (EK4) (1995.11-2001.02) B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) 1220 Motorsport Single Mass Flywheel
Honda Civic Gen. VI | 1.6 i Vtec (EM1) (1999.04-2000.12) B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) 1220 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
