• Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Honda Prelude BB (01-96)
1 1

Xtreme Performance

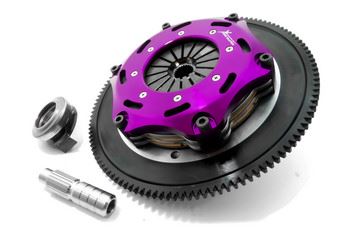

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Honda Prelude BB (01-96)

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Honda Prelude BB (01-96)

SKU: KHN18524-2E

£1,512.50 GBP
£1,512.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")

Applications

- Honda/Prelude/Gen. IV | 2.2 S (BA8)/1991.12-1996.11/F22A1 2156 Petrol 96 kW 131 BHP (1991.12 - 1996.11) , \n - Honda/Prelude/Gen. V | 2.2 Si (BB5)/1997.03-2001.04/F22Z6 2156 Petrol 118 kW 160 BHP (1997.03 - 2001.04) , \n - Honda/Prelude/Gen. IV | 2.2 VTi-R (BB1)/1994.02-1997.02/H22A1 2156 Petrol 142 kW 193 BHP (1994.02 - 1997.02) , \n - Honda/Prelude/Gen. V | 2.2 VTi-R (BB6)/1997.03-1998.10/H22A4 2156 Petrol 142 kW 193 BHP (1997.03 - 1998.10) , \n - Honda/Prelude/Gen. V | 2.2 16V (BB6. BB8)/1996.10-2000.10/H22A5, H22A4, H22A6, H22A8, H22Z1 2156 Petrol 147 kW 200 BHP (1996.10 - 2000.10) , \n - Honda/Prelude/Gen. IV | 2.3 i 16V (BB2)/1992.02-1996.09/H23A2 2259 Petrol 118 kW 160 BHP (1992.02 - 1996.09) ,

Additional Info

Clutch Disc Diameter (mm): 184\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 26\nTorque (Nm): 1220\nFlywheel Step: \nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

184mm Twin Plate

Vehicle group: Honda Prelude BB

Additional info: Parameter 1: 1220 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Honda Prelude BB | 2.2 VTi-R (BB6, BB8) (1996.10-2001.12) H22A4, H22A5, H22A6, H22A8, H22Z1 2156 Petrol 147 kW 200 BHP (1996.10 - 2001.12) 1220 Motorsport Single Mass Flywheel
Honda Prelude BB | 2.2 VTi-R (BB6) (1997.03-1998.10) H22A4 2156 Petrol 142 kW 193 BHP (1997.03 - 1998.10) 1220 Motorsport Single Mass Flywheel
Honda Prelude BB | 2.2 Si (BB5) (1997.03-2001.04) F22Z6 2156 Petrol 118 kW 160 BHP (1997.03 - 2001.04) 1220 Motorsport Single Mass Flywheel
Honda Prelude BB | 2.3 i 16V (BB2) (1992.02-1996.09) H23A2 2259 Petrol 118 kW 160 BHP (1992.02 - 1996.09) 1220 Motorsport Single Mass Flywheel
Honda Prelude BB | 2.2 VTi-R (BB1) (1994.02-1997.02) H22A1 2156 Petrol 142 kW 193 BHP (1994.02 - 1997.02) 1220 Motorsport Single Mass Flywheel
Honda Prelude BB | 2.2 S (BA8) (1991.12-1996.11) F22A1 2156 Petrol 96 kW 131 BHP (1991.12 - 1996.11) 1220 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
