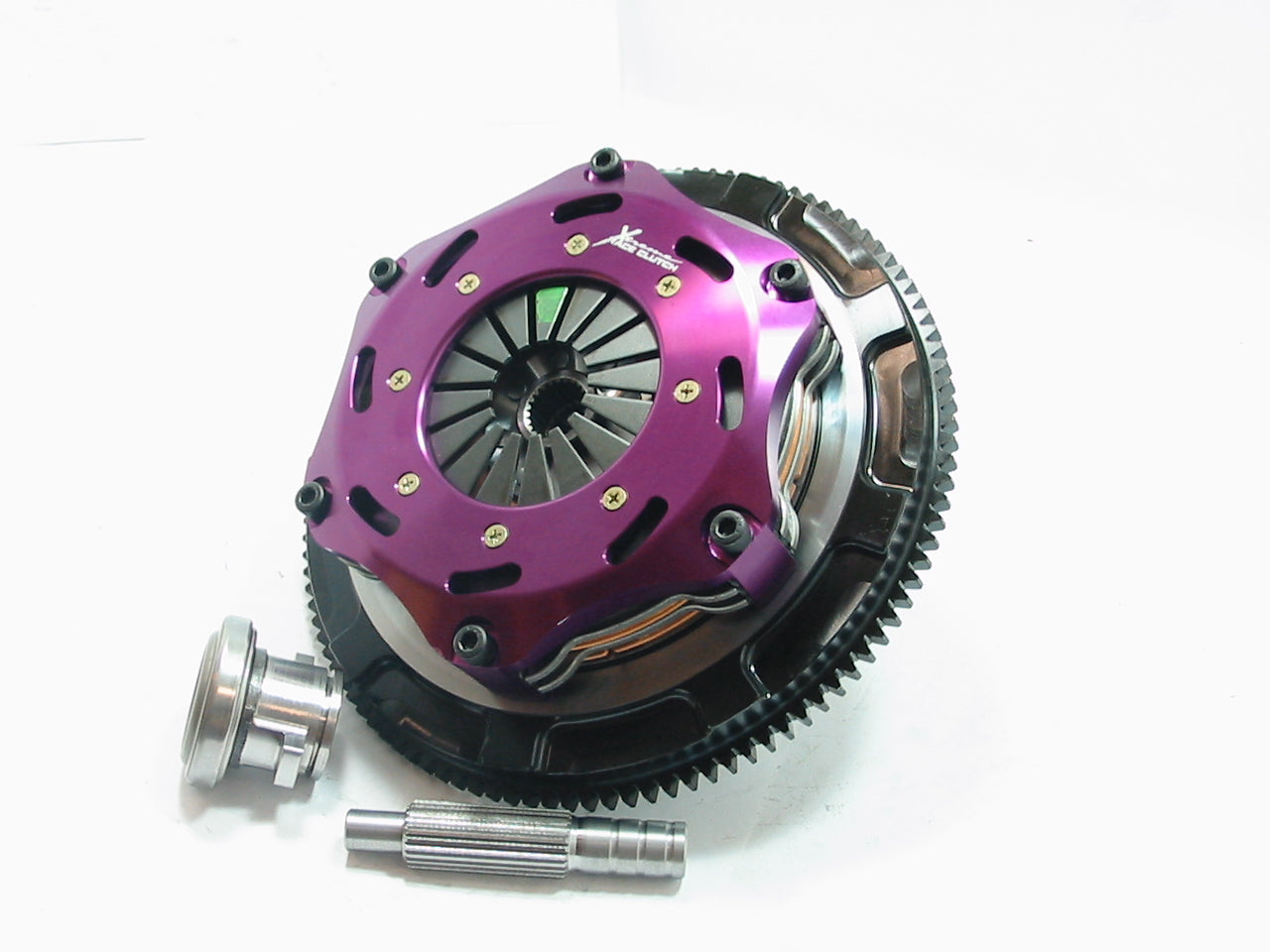

• Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Nissan 200SX S14 (00-94)
1 1

Xtreme Performance

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Nissan 200SX S14 (00-94)

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Nissan 200SX S14 (00-94)

SKU: KNI18521-2E

£1,419.36 GBP
£1,419.36 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 184mm twin plate
Designed for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

Product Features:
  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design
Replacement Parts
Light Diaphragm Alloy Hat Assembly (2.6mm) 185-10B-PP-L Heavy Diaphragm Alloy Hat Assembly (2.8mm) 185-10B-PP Pressure Plate Casting 185-10B-PPC Intermediate Plate 185-10B-IP Pressure Plate Bolt BOLT-8X1.125X50 Pressure Plate Washer WASHER-8MM-C
Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force 950kg 1080kg
Torque Rating 1060Nm 1210Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 210kg 260kg
Release Travel Required 5mm
Assembly Mass (without flywheel) 4.45kg
Disc Set Static Mass 1.1kg
Friction Thickness New 6.35mm (0.250")
Friction Thickness Worn 5.97mm (0.235")

Applications

- Nissan/180SX/S13 | 2.0 Turbo/1991.04 - 1994.03/SR20DET 1998 Petrol 147 kW 200 BHP (1991.04 - 1994.03) , \n - Nissan/180SX/S13 | 2.0 Turbo/1992.01 - 1997.01/SR20DET 1998 Petrol 153 kW 208 BHP (1992.01 - 1997.01) , \n - Nissan/200SX/S14 | 2.0 Turbo/1994.04 - 2000.11/SR20DET 1998 Petrol 147 kW 200 BHP (1994.04 - 2000.11) , \n - Nissan/200SX/S14 | 2.0 Turbo/1993.10 - 1999.12/SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) , \n - Nissan/Silvia/S13 | 2.0 Turbo/1991.01 - 1993.09/SR20DET 1998 Petrol 151 kW 205 BHP (1991.01 - 1993.09) , \n - Nissan/Silvia/S13 | 2.0 Turbo/1991.01 - 1993.09/SR20DET 1998 Petrol 164 kW 223 BHP (1991.01 - 1993.09) , \n - Nissan/Silvia/S14 | 2.0 Turbo/1994.04 - 1999.09/SR20DET 1998 Petrol 162 kW 220 BHP (1994.04 - 1999.09) , \n - Nissan/Silvia/S14 | 2.0 Turbo/1993.10 - 1999.12/SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) ,

Additional Info

Clutch Disc Diameter (mm): 184\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 25.5\nTorque (Nm): 1220\nFlywheel Step: +2.5mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: 900Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

184mm Twin Plate

Vehicle group: Nissan 200SX S14

Additional info: Parameter 1: 1220 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Nissan 200SX S14 | 2.0 Turbo (1994.04 - 2000.11) SR20DET 1998 Petrol 147 kW 200 BHP (1994.04 - 2000.11) 1220 Motorsport Single Mass Flywheel
Nissan 200SX S14 | 2.0 Turbo (1993.10 - 1999.12) SR20DET 1998 Petrol 147 kW 200 BHP (1993.10 - 1999.12) 1220 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
