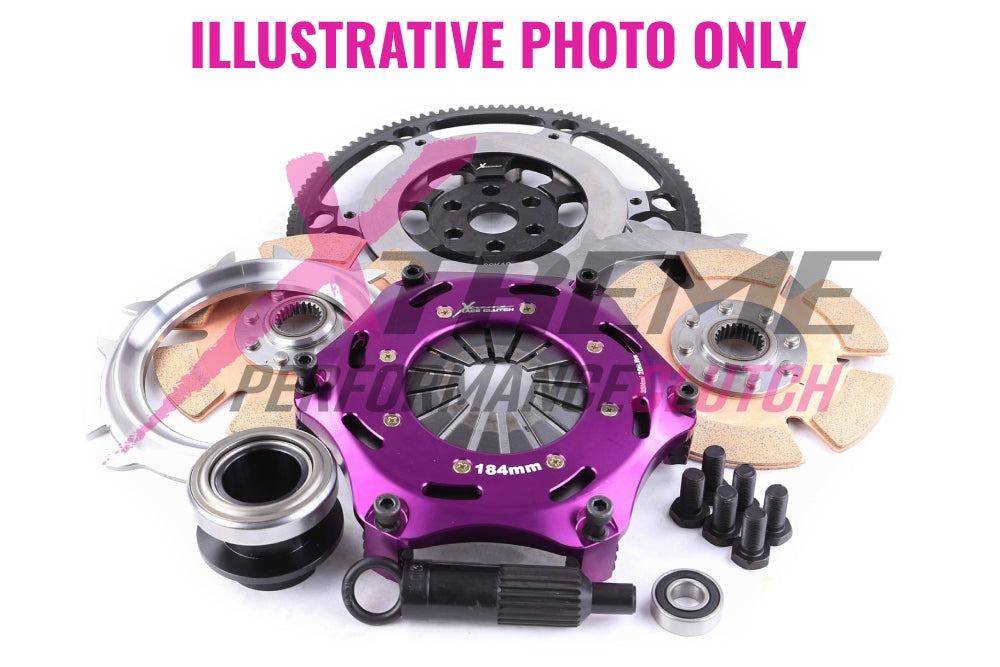

• Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Toyota Starlet 1.3 Turbo (EP82_) (89-95)
1 1

Xtreme Performance

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Toyota Starlet 1.3 Turbo (EP82_) (89-95)

Xtreme Performance - 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm - Toyota Starlet 1.3 Turbo (EP82_) (89-95)

SKU: KTY18527-2E

£2,203.98 GBP
£2,203.98 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Applications

- Toyota/Starlet/1.3 (EP91_)/1996.01-1999.07/4E-FE 1332 Petrol 55 kW 75 BHP (1996.01 - 1999.07) , \n - Toyota/Starlet/1.3 (EP82)/1989.12-1996.03/4E-FE 1332 Petrol 74 kW 100 BHP (1989.12 - 1996.03) , \n - Toyota/Starlet/1.3 Turbo (EP82_)/1989.12-1995.12/4E-FTE 1332 Petrol 99 kW 135 BHP (1989.12 - 1995.12) ,

Additional Info

Clutch Disc Diameter (mm): 184\nClutch Disc Spline Count: 21\nClutch Disc Spline Diameter (mm): 23.8\nTorque (Nm): 1060\nFlywheel Step: +2.5mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

184mm Twin Plate

Vehicle group: Toyota Starlet 1.3 Turbo (EP82_)

Additional info: Parameter 1: 1060 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Toyota Starlet 1.3 Turbo (EP82_) (1989.12-1995.12) 4E-FTE 1332 Petrol 99 kW 135 BHP (1989.12 - 1995.12) 1060 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
