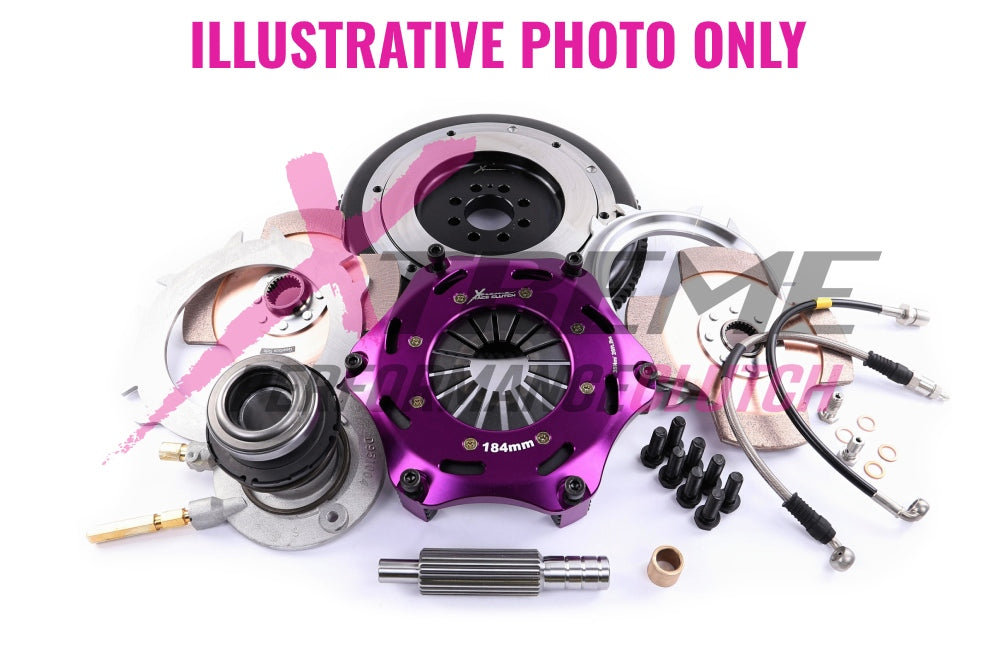

	The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.
	Ø184mm Light Diaphragm (2.6mm) Ø184mm Heavy Diaphragm (2.8mm) Clamping Force 950kg 1080kg Torque Rating 1060Nm 1210Nm Bearing Contact Diameter 44-52mm 44-52mm Bearing Load (@ 48mm) 210kg 260kg Release Travel Required 5mm 5mm Assembly Mass (without flywheel) 4.45kg 4.45kg Disc Set Static Mass 1.1kg Friction Thickness New 6.35mm (0.250") 6.35mm (0.250") Friction Thickness Worn 5.97mm (0.235") 5.97mm (0.235") Product Features: Push type billet alloy cover 4140 Chromoly pressure plate Hardened steel wear posts High and low ratio pressure plate options Low inertia Serviceable components SFI certified design

Applications

- Toyota/Yaris/1.6 GR 4WD (GXPA16)/2020.02-/G16E-GTS 1618 Petrol 200 kW 272 BHP (2020.02 -) ,

Additional Info

Torque (Nm): 1220\nFlywheel Step: +2.5\nClutch Disc Diameter (mm): 184\nClutch Disc Spline Count: 23\nClutch Disc Spline Diameter (mm): 26\nDesign: Twin Plate

184mm Twin Plate

Vehicle group: Toyota Yaris 1.6 GR 4WD (GXPA16)

Additional info: Parameter 1: 1220 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Toyota Yaris 1.6 GR 4WD (GXPA16) (2020.02-)	G16E-GTS 1618 Petrol 192 kW 261 BHP (2020.02 -)			1220	Motorsport	Single Mass Flywheel
Toyota Yaris 1.6 GR 4WD (GXPA16) (2020.02-)	G16E-GTS 1618 Petrol 200 kW 272 BHP (2020.02 -)			1220	Motorsport	Single Mass Flywheel

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
