• Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Mini Mini (R50, R53) John Copper Works (06-06)
1 1

Xtreme Performance

Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Mini Mini (R50, R53) John Copper Works (06-06)

Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Mini Mini (R50, R53) John Copper Works (06-06)

SKU: KMC20520-2E

£1,306.63 GBP
£1,306.63 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

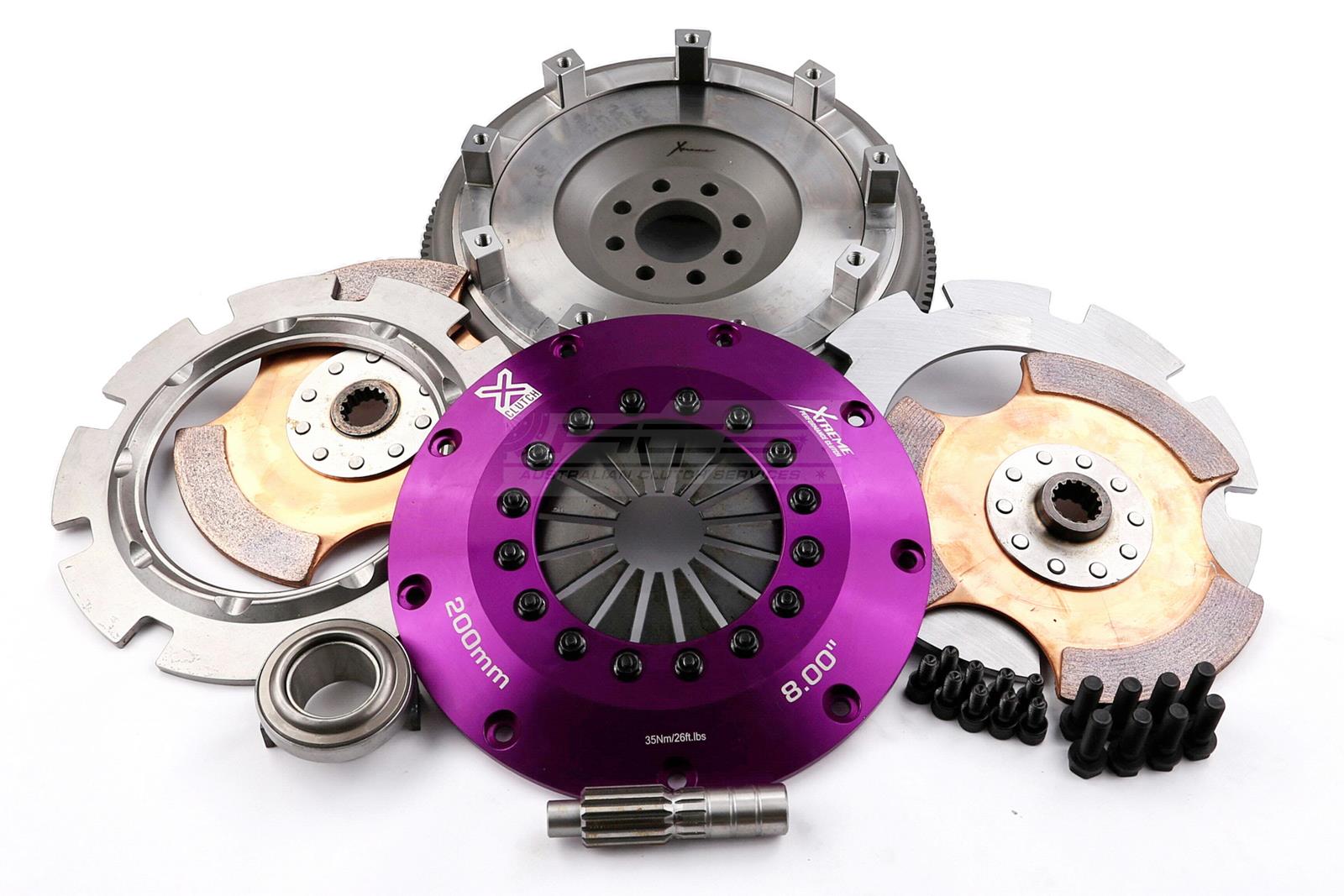

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Applications

- Mini/Mini (R50, R53)/John Copper Works/2006.03-2006.09/W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09) , \n - Mini/Convertible (R52)/John Copper Works/2004.07-2007.11/W11 B16 A 1598 Petrol 155 kW 210 BHP (2004.07 - 2007.11) , \n - Mini/Mini (R50, R53)/S Works/2003.11-2005.06/W11 B16 A 1598 Petrol 149 kW 203 BHP (2003.11 - 2005.06) , \n - Mini/Convertible (R52)/Cooper S/2004.07-2007.11/W11 B16 A 1598 Petrol 120 kW 163 BHP (2004.07 - 2007.11) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 14\nClutch Disc Spline Diameter (mm): 25\nTorque (Nm): 1200\nFlywheel Step: \nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

200mm Twin Plate

Vehicle group: Mini Mini (R50, R53) John Copper Works

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Mini Mini (R50, R53) John Copper Works (2006.03-2006.09) W11 B16 A 1598 Petrol 160 kW 218 BHP (2006.03 - 2006.09) nan nan nan
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
