Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Mitsubishi Lancer EVO X - FQ400 (CZ4A) (09-10)

Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Mitsubishi Lancer EVO X - FQ400 (CZ4A) (09-10)

SKU: KMI20523-2E

£1,455.50 GBP
£1,455.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

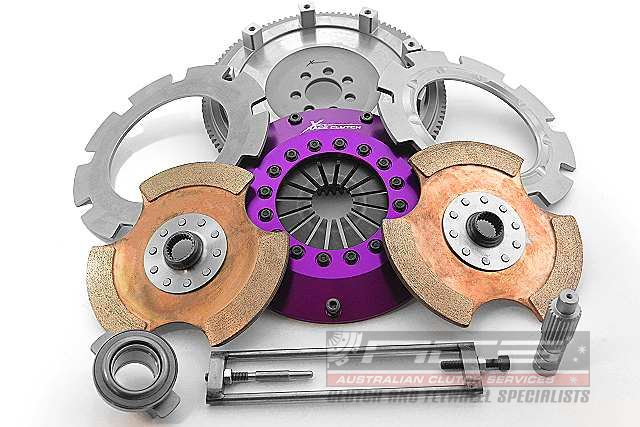

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Applications

- Mitsubishi/Lancer/2.0 i Ralliart 4WD (CY4A)/2008.10-2015/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015) , \n - Mitsubishi/Lancer/2.0 Ralliart 4WD (CX4A)/2008.10-2015/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015) , \n - Mitsubishi/Lancer/EVO X (CZ4A)/2008.06-2015.12/4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12) , \n - Mitsubishi/Lancer/EVO X (CZ4A)/2008.06-2015.03/4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03) , \n - Mitsubishi/Lancer/EVO X (CZ4A)/2014.09-2015.12/4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12) , \n - Mitsubishi/Lancer/EVO X - FQ400 (CZ4A)/2009.05-2010.12/4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12) , \n - Mitsubishi/Lancer/EVO X - FQ440 (CZ4A)/2014.05-2014.06/4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 23\nClutch Disc Spline Diameter (mm): 26\nTorque (Nm): 1200\nFlywheel Step: +2.2mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: 1100Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

200mm Twin Plate

Vehicle group: Mitsubishi Lancer EVO X - FQ400 (CZ4A)

Additional info: Parameter 1: 1200 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Mitsubishi Lancer EVO X - FQ400 (CZ4A) (2009.05-2010.12) 4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12) Pull to Push Type Conversion 1200 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
