• Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Subaru Impreza 2.0 WRX STi AWD (GDB) (01-05)
1 1

Xtreme Performance

Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Subaru Impreza 2.0 WRX STi AWD (GDB) (01-05)

Xtreme Performance - 200mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Subaru Impreza 2.0 WRX STi AWD (GDB) (01-05)

SKU: KSU20520-2E

£1,460.82 GBP
£1,460.82 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

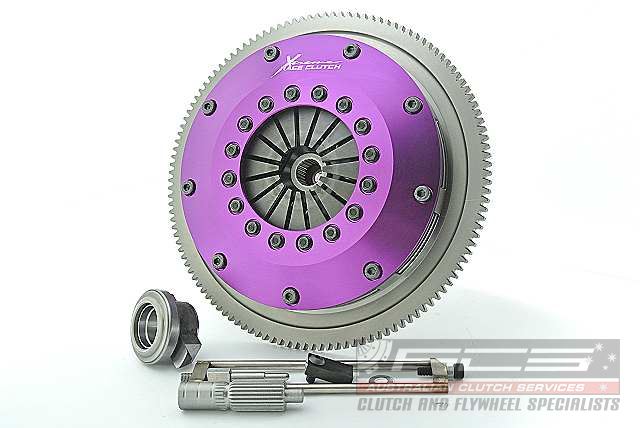

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Rigid driven discs (individual hubs)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7kg
Disc Set Static Mass 1.75kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Applications

- Subaru/Impreza/2.0 i Turbo AWD (GF8)/1994.03-2000.12/EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1994.03-2000.12/EJ20 (Turbo) 1994 Petrol 155 kW 211 BHP (1994.03 - 2000.12) , Suits 5 Speed Gearbox\n - Subaru/Forester/2.0 S Turbo AWD (SF5)/1998.06-2001.04/EJ205 1994 Petrol 125 kW 170 BHP (1998.06 - 2001.04) , Suits 5 Speed Gearbox\n - Subaru/Forester/2.0 S Turbo AWD (SF5)/2001.04-2002.09/EJ205 1994 Petrol 130 kW 177 BHP (2001.04 - 2002.09) , Suits 5 Speed Gearbox\n - Subaru/Forester/2.0 S Turbo AWD (SG5)/2002.02-2005.05/EJ205 1994 Petrol 130 kW 177 BHP (2002.02 - 2005.05) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 WRX Turbo AWD (GDA) 5 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) , Suits 5 Speed Gearbox\n - Subaru/Legacy/2.0 AWD (BE5)/2002.02-2003.06/EJ206 1994 Petrol 190 kW 258 BHP (2002.02 - 2003.06) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) , Suits 5 Speed Gearbox\n - Subaru/Legacy/2.0 AWD (BE5)/2002.06-2003.08/EJ208 1994 Petrol 206 kW 280 BHP (2002.06 - 2003.08) , Suits 5 Speed Gearbox\n - Subaru/Impreza/2.0 Turbo AWD (GC8)/1996.12-2000.12/EJ20G 1994 Petrol 155 kW 211 BHP (1996.12 - 2000.12) , Suits 5 Speed Gearbox\n - Subaru/Legacy/2000 Turbo 4WD (BC5)/1992.05-1994.07/EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) , Suits 5 Speed Gearbox\n - Subaru/Legacy/2000 Turbo Super 4WD (BF5)/1992.05-1994.07/EJ20-GN 1994 Petrol 147 kW 200 BHP (1992.05 - 1994.07) , Suits 5 Speed Gearbox\n - Subaru/Forester/2.5 AWD (SG9)/2003.12-2005.05/EJ25 2457 Petrol 155 kW 211 BHP (2003.12 - 2005.05) , Suits 5 Speed Gearbox\n - Subaru/Forester/2.5 Prodrive Performance Pack AWD/2005.05-2005.09/EJ255 2457 Petrol 188 kW 256 BHP (2005.05 - 2005.09) , Suits 5 Speed Gearbox

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 25.5\nTorque (Nm): 1200\nFlywheel Step: +2.2mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-200-2-X.pdf' target='_blank'>TSB-200-2-X</a>\nClamp Load: 1100Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

200mm Twin Plate - 5 Speed Gearbox

Vehicle group: Subaru Impreza 2.0 WRX STi AWD (GDB)

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Subaru Impreza 2.0 WRX STi AWD (GDB) (2001.11-2005.07) EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) Suits 5 Speed Gearbox nan nan nan
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
