• Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 3-Series E30 (82-85)
1 1

Xtreme Performance

Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 3-Series E30 (82-85)

Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 3-Series E30 (82-85)

SKU: KBM20531-2B

£1,888.37 GBP
£1,888.37 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

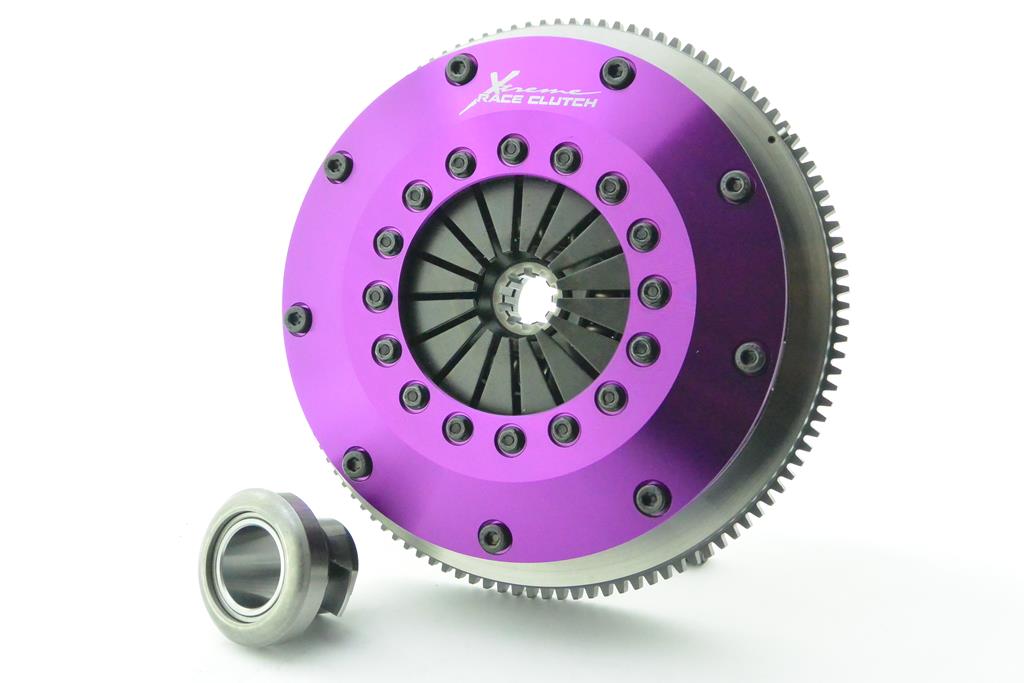

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Applications

- BMW/3-Series/E30 | M3/1988-1991/2302cc | 143KW | 195HP | S14 B23 (234EA) (1988-1991) , \n - BMW/3-Series/E30 | M3/1986-1991/2302cc | 143KW | 195HP | S14 B23 (234EA);S14 B23 (234S1);S14 B23 (234S2) (1986-1991) , \n - BMW/3-Series/E30 | M3/1987-1989/2302cc | 147KW | 200HP | S14 B23 (234EA);S14 B23 (234S2) (1987-1989) , \n - BMW/3-Series/E30 | M3/1986-1990/2302cc | 158KW | 215HP | S14 B23 (234EA);S14 B23 (234S2) (1986-1990) , \n - BMW/3-Series/E30 | M3 EVO I 2.3/1988-1990/2302cc | 162KW | 220HP | S14 B23 (234EA) (1988-1990) , \n - BMW/3-Series/E30 | 323i/1982-1983/2316cc | 102KW | 139HP | M20 B23 (236EB) (1982-1983) , \n - BMW/3-Series/E30 | 323i/1983-1986/2316cc | 110KW | 150HP | M20 B23 (236EC);M20 B23 (236EW) (1983-1986) , \n - BMW/3-Series/E30 | M3 EVO II 2.5/1990-1992/2467cc | 175KW | 238HP | S14 B25 (254S1) (1990-1992) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 10\nClutch Disc Spline Diameter (mm): 29\nTorque (Nm): 1200\nFlywheel Step: +2.2mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

200mm Twin Plate

Vehicle group: BMW 3-Series E30

Additional info: Parameter 1: 1200 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
BMW 3-Series E30 | 323i (1982.09-1985.12) M20 B23 (236EB) 2316 Petrol 102 kW 139 BHP (1982.09 - 1985.12) 1200 Motorsport Single Mass Flywheel
BMW 3-Series E30 | 323i (1983.09-1986.09) M20 B23 (236EC), M20 B23 (236EW) 2316 Petrol 110 kW 150 BHP (1983.09 - 1986.09) 1200 Motorsport Single Mass Flywheel
BMW 3-Series E30 | 320is (1988.05-1990.12) S14 B20 (204EA) 1990 Petrol 141 kW 192 BHP (1988.05 - 1990.12) 1200 Motorsport Single Mass Flywheel
BMW 3-Series E30 | M3 (1986.07-1991.06) S14 B23 (234EA), S14 B23 (234S1), S14 B23 (234S2) 2302 Petrol 143 kW 195 BHP (1986.07 - 1991.06) 1200 Motorsport Single Mass Flywheel
BMW 3-Series E30 | M3 (1987.02-1989.05) S14 B23 (234EA), S14 B23 (234S2) 2302 Petrol 147 kW 200 BHP (1987.02 - 1989.05) 1200 Motorsport Single Mass Flywheel
BMW 3-Series E30 | M3 (1986.01-1990.10) S14 B23 (234EA), S14 B23 (234S2) 2302 Petrol 158 kW 215 BHP (1986.01 - 1990.10) 1200 Motorsport Single Mass Flywheel
BMW 3-Series E30 | M3 EVO I 2.3 (1988.10-1990.10) S14 B23 (234EA) 2302 Petrol 162 kW 220 BHP (1988.10 - 1990.10) 1200 Motorsport Single Mass Flywheel
BMW 3-Series E30 | M3 EVO II 2.5 (1990.01-1992.01) S14 B25 (254S1) 2467 Petrol 175 kW 238 BHP (1990.01 - 1992.01) 1200 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
