Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Mazda 323 1.8 16V 4WD (BG8S) (89-94)

Xtreme Performance - 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm - Mazda 323 1.8 16V 4WD (BG8S) (89-94)

SKU: KFD20523-2B

£1,348.60 GBP
£1,348.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

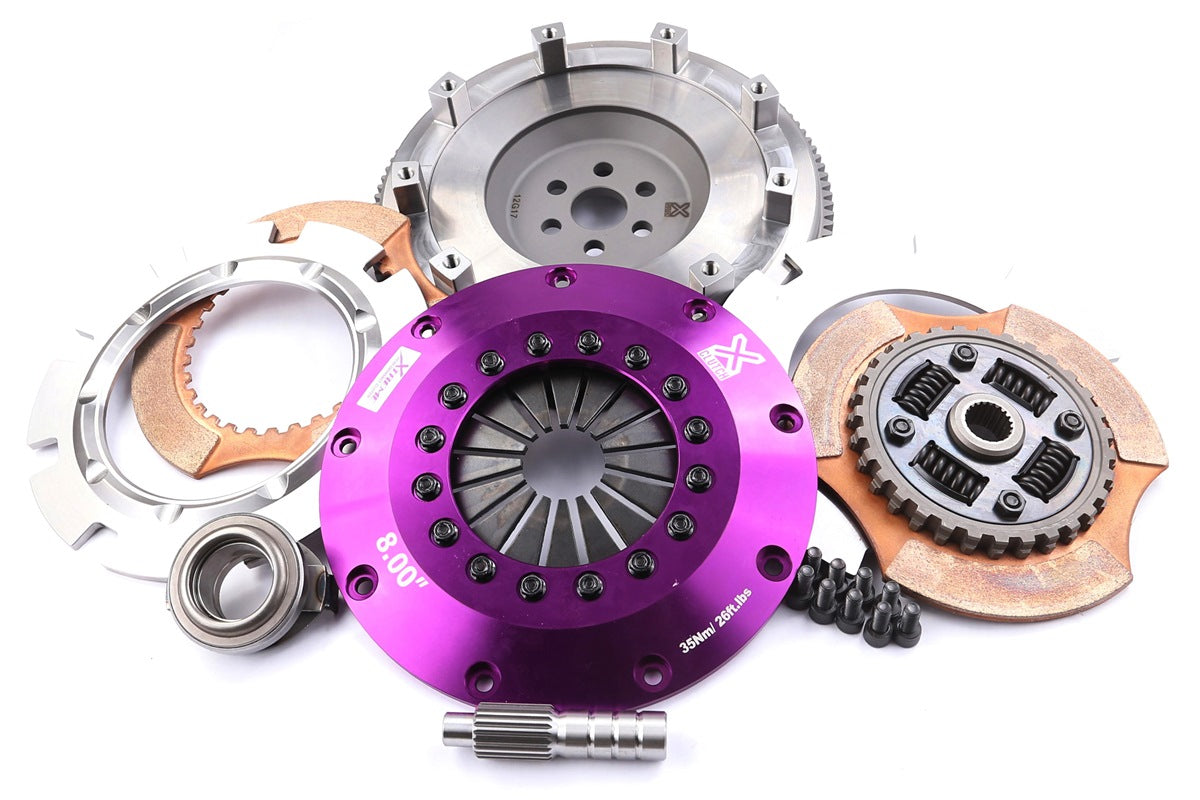

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • High torque sprung driven discs (common hub)
  • Push type billet alloy cover
  • 4140 Chromoly pressure & intermediate plates
  • Hardened steel wear posts
  • Low inertia
  • Serviceable components
  • SFI certified design
Clamping Force 1000kg
Torque Rating 1200Nm
Bearing Contact Diameter 44-52mm
Bearing Load (@ 48mm) 218kg
Release Travel Required 6mm
Assembly Mass (without flywheel) 7.4kg
Disc Set Static Mass 2.15kg
Friction Thickness New 7mm (0.275")
Friction Thickness Worn 6.48mm (0.255")

Applications

- Mazda/323/1.8 16V Turbo 4WD (BG8S)/1990.09-1992.12/BP Turbo 1840 Petrol 120 kW 163 BHP (1990.09 - 1992.12) , \n - Mazda/323/1.8 16V 4WD (BG8S)/1989.08-1994.05/BP Turbo 1840 Petrol 132 kW 179 BHP (1989.08 - 1994.05) , \n - Mazda/323/1.8 16V Turbo 4WD (BG8S)/1993.01-1994.07/BP Turbo 1840 Petrol 136 kW 185 BHP (1993.01 - 1994.07) , \n - Mazda/323/1.8 GT-R 4WD (BG8S)/1992.01-1994.05/BP Turbo 1840 Petrol 154 kW 209 BHP (1992.01 - 1994.05) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 22\nClutch Disc Spline Diameter (mm): 24.5\nTorque (Nm): 1200\nFlywheel Step: +2.2mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

200mm Twin Plate

Vehicle group: Mazda 323 1.8 16V 4WD (BG8S)

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Mazda 323 1.8 16V 4WD (BG8S) (1989.08-1994.05) BP Turbo 1840 Petrol 132 kW 179 BHP (1989.08 - 1994.05) nan nan nan
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
