• Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 2-Series F22, F87 (15-18)
1 1

Xtreme Performance

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 2-Series F22, F87 (15-18)

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 2-Series F22, F87 (15-18)

SKU: KBM23560-2G

£2,631.89 GBP
£2,631.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

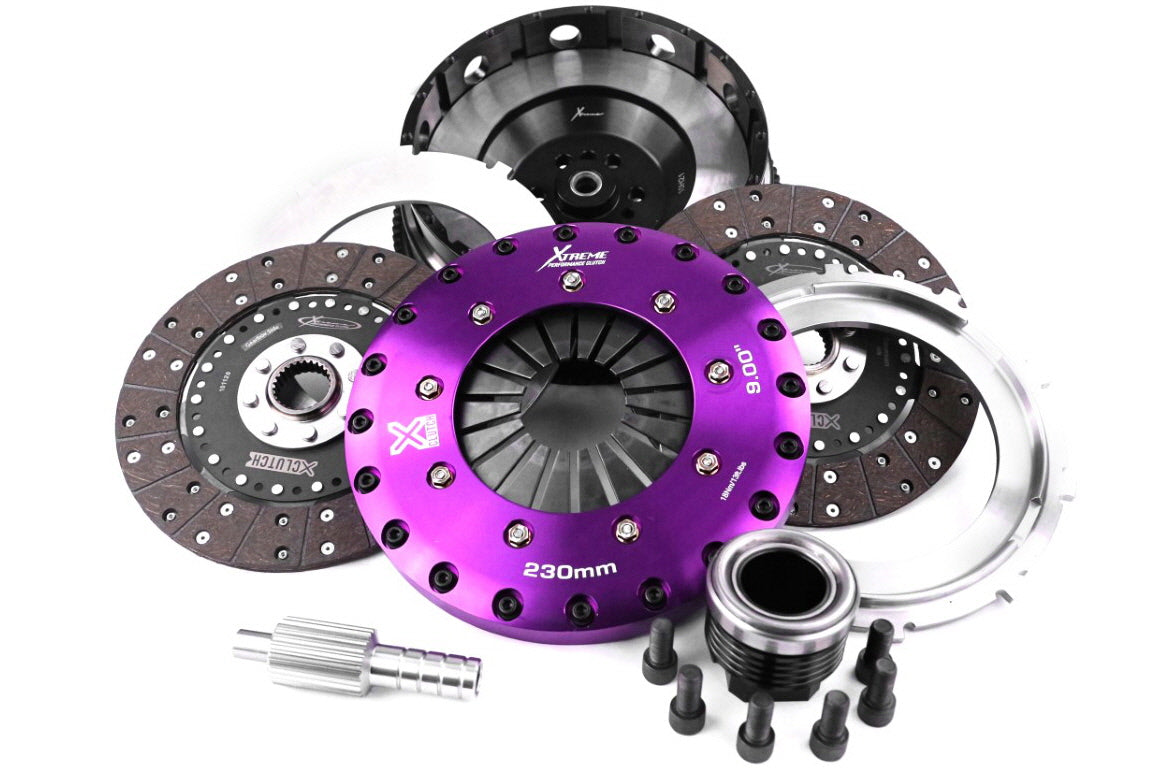

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design

Applications

- BMW/2-Series/F22, F87 | M2/2015-2018/2979cc | 272KW | 370HP | N55 B30 A (2015-2018) , \n - BMW/2-Series/F22, F87 | M2 Competition/2018.06-2021.06/2979cc | 302KW | 411HP | S55 B30 A (2018.06-2021.06) , \n - BMW/4-Series/F32, F82 | M4/2014.03-2020.06/2979cc | 317KW | 431HP | S55 B30 A (2014.03-2020.06) , \n - BMW/4-Series/F33, F83 | M4/2014.03-2020.06/2979cc | 317KW | 431HP | S55 B30 A (2014.03-2020.06) , \n - BMW/3-Series/F30, F80 | M3/2014-2018/2979cc | 317KW | 431HP | S55 B30 A (2014-2018) , \n - BMW/3-Series/F30, F80 | M3 Competition/2016-2018/2979cc | 331KW | 450HP | S55 B30 A (2016-2018) , \n - BMW/2-Series/F22, F87 | M2 CS/2019.11-2021.06/2979cc | 331KW | 450HP | S55 B30 A (2019.11-2021.06) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 26\nClutch Disc Spline Diameter (mm): 35\nTorque (Nm): 1210\nFlywheel Step: +3.8mm\nDesign: Twin Plate\nStage: Multiplate - street use only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-166.pdf' target='_blank'>TSB-166</a><a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-269.pdf' target='_blank'>TSB-269</a>\nClamp Load: \nRecommended for: High horsepower street driven vehicles\nRing Gear Tooth count: \nAdditional infotmation: Conversion from dual-mass flywheel to single-mass flywheel

230mm Twin Plate

Vehicle group: BMW 2-Series F22, F87

Additional info: Parameter 1: 1200 | Parameter 2: High Power Street Upgrade | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
BMW 2-Series F22, F87 | M2 (2015.11-2018.06) N55 B30 A 2979 Petrol 272 kW 370 BHP (2015.11 - 2018.06) Suits only Manual Gearbox 1200 High Power Street Upgrade Single Mass Flywheel
BMW 2-Series F22, F87 | M2 Competition (2018.06-2021.06) S55 B30 A 2979 Petrol 302 kW 411 BHP (2018.06 - 2021.06) Suits only Manual Gearbox 1200 High Power Street Upgrade Single Mass Flywheel
BMW 2-Series F22, F87 | M2 CS (2019.11-2021.06) S55 B30 A 2979 Petrol 331 kW 450 BHP (2019.11 - 2021.06) Suits only Manual Gearbox 1200 High Power Street Upgrade Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
