• Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 3-Series F30, F80 (11-15)
1 1

Xtreme Performance

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 3-Series F30, F80 (11-15)

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW 3-Series F30, F80 (11-15)

SKU: KBM23596-2G

£1,992.52 GBP
£1,992.52 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

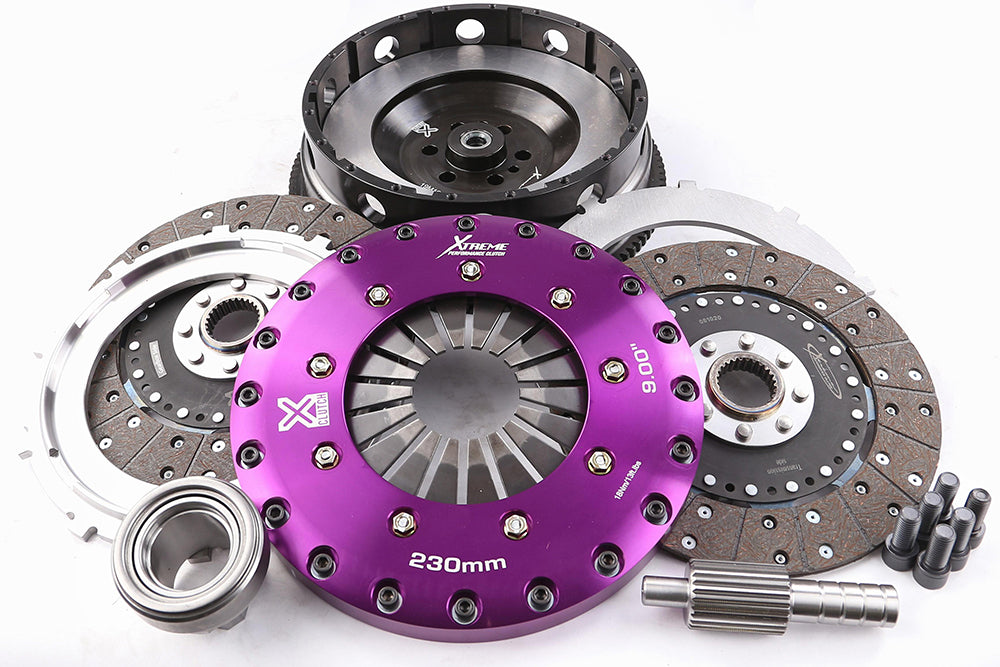

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design

Applications

- BMW/3-Series/E90 | 335i/2006-2011/2979cc | 225KW | 306HP | N55 B30 A (2006-2011) , \n - BMW/3-Series/E91 | 335i/2006-2012/2979cc | 225KW | 306HP | N55 B30 A (2006-2012) , \n - BMW/3-Series/E92 | 335i/2006-2013/2979cc | 225KW | 306HP | N55 B30 A (2006-2013) , \n - BMW/3-Series/E93 | 335i/2006-2013/2979cc | 225KW | 306HP | N55 B30 A (2006-2013) , \n - BMW/3-Series/E91 | 335Xi/2007-2008/2979cc | 225KW | 306HP | N55 B30 A (2007-2008) , \n - BMW/3-Series/E92 | 335Xi/2007-2010/2979cc | 225KW | 306HP | N55 B30 A (2007-2010) , \n - BMW/1-Series/E82 | 135i/2007-2013/2979cc | 225KW | 306HP | N55 B30 A (2007-2013) , \n - BMW/3-Series/E90 | 335i xDrive/2008-2011/2979cc | 225KW | 306HP | N55 B30 A (2008-2011) , \n - BMW/3-Series/E91 | 335i xDrive/2008-2012/2979cc | 225KW | 306HP | N55 B30 A (2008-2012) , \n - BMW/1-Series/E88 | 135i/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013) , \n - BMW/3-Series/E92 | 335i xDrive/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013) , \n - BMW/5-Series/F10 | 535i/2010-2016/2979cc | 225KW | 306HP | N55 B30 A (2010-2016) , \n - BMW/5-Series/F11 | 535i/2010-2017/2979cc | 225KW | 306HP | N55 B30 A (2010-2017) , \n - BMW/3-Series/F30, F80 | 335i/2011-2015/2979cc | 225KW | 306HP | N55 B30 A (2011-2015) , \n - BMW/3-Series/F30, F80 | 335i xDrive/2012-2015/2979cc | 225KW | 306HP | N55 B30 A (2012-2015) , \n - BMW/3-Series/F31 | 335i/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015) , \n - BMW/3-Series/F31 | 335i xDrive/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015) , \n - BMW/3-Series/F34 | 335i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/F32, F82 | 435i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/F33, F83 | 435i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/4-Series/F32, F82 | 435i xDrive/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016) , \n - BMW/1-Series/E82 | 135i/2007-2013/2979cc | 240KW | 326HP | N55 B30 A (2007-2013) , \n - BMW/1-Series/E88 | 135i/2008-2013/2979cc | 240KW | 326HP | N55 B30 A (2008-2013) , \n - BMW/3-Series/F30, F80 | 335i xDrive/2012-2013/2979cc | 240KW | 326HP | N55 B30 A (2012-2013) , \n - BMW/1-Series/E82 | 1M/2011.03-2012.06/2979cc | 250KW | 340HP | N54 B30 A (2011.03-2012.06) , \n - BMW/3-Series/F30, F80 | 335i xDrive/2013-2015/2979cc | 250KW | 340HP | N55 B30 A (2013-2015) , \n - BMW/4-Series/F32, F82 | 435i/2013-2016/2979cc | 250KW | 340HP | N55 B30 A (2013-2016) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 26\nClutch Disc Spline Diameter (mm): 35\nTorque (Nm): 1200\nFlywheel Step: +3.8mm\nDesign: Twin Plate\nStage: Multiplate - street use only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-214.pdf' target='_blank'>TSB-214</a><a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-166.pdf' target='_blank'>TSB-166</a><a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-269.pdf' target='_blank'>TSB-269</a>\nClamp Load: 1300Kg\nRecommended for: High horsepower street driven vehicles\nRing Gear Tooth count: \nAdditional infotmation:

230mm Twin Plate

Vehicle group: BMW 3-Series F30, F80

Additional info: Parameter 1: 1200 | Parameter 2: High Power Street Upgrade | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
BMW 3-Series F30, F80 | 335i (2011.11-2015.07) N55 B30 A 2979 Petrol 225 kW 306 BHP (2011.11 - 2015.07) 1200 High Power Street Upgrade Single Mass Flywheel
BMW 3-Series F30, F80 | 335i xDrive (2012.07-2015.07) N55 B30 A 2979 Petrol 225 kW 306 BHP (2012.07 - 2015.07) 1200 High Power Street Upgrade Single Mass Flywheel
BMW 3-Series F30, F80 | 335i xDrive (2012.07-2013.06) N55 B30 A 2979 Petrol 240 kW 326 BHP (2012.07 - 2013.06) 1200 High Power Street Upgrade Single Mass Flywheel
BMW 3-Series F30, F80 | 335i xDrive (2012.07-2015.07) N55 B30 A 2979 Petrol 250 kW 340 BHP (2012.07 - 2015.07) 1200 High Power Street Upgrade Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
