• Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW Z3 E36 (95-99)
1 1

Xtreme Performance

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW Z3 E36 (95-99)

Xtreme Performance - 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm - BMW Z3 E36 (95-99)

SKU: KBM23589-2G

£1,894.46 GBP
£1,894.46 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

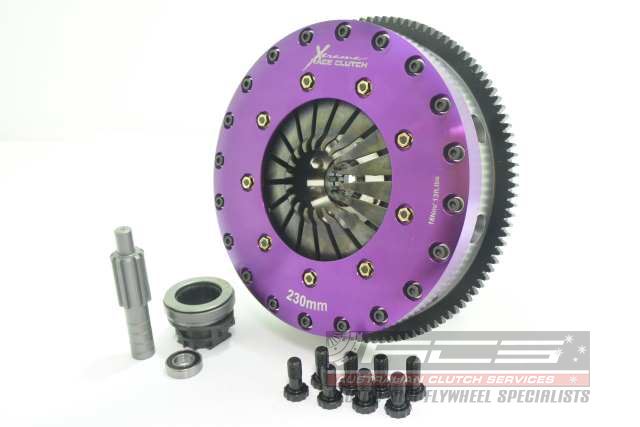

The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1200Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design

Applications

- BMW/3-Series/E30 | 318is/1989-1991/1796cc | 100KW | 136HP | M42 B18 (184S1) (1989-1991) , \n - BMW/3-Series/E36 | 318is/1992-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1992-1995) , \n - BMW/3-Series/E36 | 318is/1993-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1993-1995) , \n - BMW/3-Series/E36 | 318Ti/1994-1995/1796cc | 103KW | 140HP | M42 B18 (184S1) (1994-1995) , \n - BMW/5-Series/E34 | 518i/1989-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1989-1994) , \n - BMW/5-Series/E34 | 518i/1993-1994/1796cc | 83KW | 113HP | M40 B18 (184E1) (1993-1994) , \n - BMW/5-Series/E34 | 518i/1994-1995/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1995) , \n - BMW/5-Series/E34 | 518i/1994-1996/1796cc | 85KW | 115HP | M43 B18 (184E2) (1994-1996) , \n - BMW/Z3/E36 | 1.9i/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) , \n - BMW/3-Series/E36 | 318is/1995-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1995-1999) , \n - BMW/3-Series/E36 | 318is/1996-1998/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1998) , \n - BMW/3-Series/E36 | 318Ti/1996-1999/1895cc | 103KW | 140HP | M44 B19 (194S1) (1996-1999) , \n - BMW/5-Series/E39 | 520i/1997-2001/1990cc | 100KW | 136HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) , \n - BMW/5-Series/E39 | 520i/1996-2003/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1996-2003) , \n - BMW/5-Series/E39 | 520i/1997-2001/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) , \n - BMW/3-Series/E46 | 320i/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000) , \n - BMW/3-Series/E46 | 320i/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000) , \n - BMW/3-Series/E46 | 320Ci/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001) , \n - BMW/Z3/E36 | 2.0i/1999-2003/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2003) , \n - BMW/3-Series/E46 | 320i/2000-2005/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2005) , \n - BMW/3-Series/E46 | 320Ci/2000-2006/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2006) , \n - BMW/Z3/E36 | 2.2i/2000-2002/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2002) , \n - BMW/5-Series/E39 | 520i/2000-2003/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2003) , \n - BMW/3-Series/E46 | 320i/2000-2005/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2005) , \n - BMW/3-Series/E46 | 320Ci/2000-2006/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2006) , \n - BMW/3-Series/E46 | 320Ci/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007) , \n - BMW/3-Series/E46 | 323i/1998-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1998-2000) , \n - BMW/3-Series/E46 | 323Ci/1999-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1999-2000) , \n - BMW/3-Series/E46 | 323Ci/2000-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (2000-2000) , \n - BMW/5-Series/E34 | 525i/1988-1990/2494cc | 125KW | 170HP | M20 B25 (256K1) (1988-1990) , \n - BMW/3-Series/E36 | 323Ti/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000) , \n - BMW/5-Series/E39 | 523i/1995-2000/2494cc | 125KW | 170HP | M52 B25 (256S3);M52 B25 (256S4) (1995-2000) , \n - BMW/5-Series/E39 | 523i/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3);M52 B25 (256S4) (1997-2000) , \n - BMW/3-Series/E46 | 323i/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000) , \n - BMW/3-Series/E46 | 323Ci/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000) , \n - BMW/3-Series/E46 | 323Ci/2000-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (2000-2000) , \n - BMW/3-Series/E36 | 325i/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) , \n - BMW/5-Series/E34 | 525i 24V/1990-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1990-1995) , \n - BMW/3-Series/E36 | 325i/1991-1995/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1995) , \n - BMW/5-Series/E34 | 525i/1991-1996/2494cc | 141KW | 192HP | M50 B25 (256S1);M50 B25 (256S2) (1991-1996) , \n - BMW/3-Series/E36 | 325i/1993-1995/2494cc | 141KW | 192HP | M50 B25 (256S2) (1993-1995) , \n - BMW/5-Series/E39 | 525i/2000-2003/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2003) , \n - BMW/3-Series/E46 | 325i/2000-2005/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2005) , \n - BMW/5-Series/E28 | 525E/1981-1987/2693cc | 90KW | 122HP | M20 B27 (276KA), M20 B27 (276KB) (1981-1987) , \n - BMW/5-Series/E28 | 525E/1983-1987/2693cc | 92KW | 125HP | M20 B27 (276EA) (1983-1987) , \n - BMW/5-Series/E28 | 525E/1985-1987/2693cc | 95KW | 129HP | M20 B27 (276EB), M20 B27 (276KB) (1985-1987) , \n - BMW/3-Series/E36 | 328i/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998) , \n - BMW/3-Series/E36 | 328i/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999) , \n - BMW/Z3/E36 | 2.8i/1996-2000/2793cc | 142KW | 193HP | M52 B28 (286S1) (1996-2000) , \n - BMW/5-Series/E39 528i/1995-2000/2793cc | 142KW | 193HP | M52 B28 (286S1), M52 B28 (286S2) (1995-2000) , \n - BMW/5-Series/E39 528i/1996-2000/2793cc | 142KW | 193HP | M52 B28 (286S1), M52 B28 (286S2) (1996-2000) , \n - BMW/Z3/E36 | 2.8i/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S1);M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/E46 | 328Ci/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/E46 | 328i/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/E46 | 328i/1999-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000) , \n - BMW/Z3/E36 | 3.0i/2000-2003/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2003) , \n - BMW/3-Series/E46 | 330i/2000-2005/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2005) 5 Speed, \n - BMW/3-Series/E46 | 330Ci/2000-2006/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2006) 5 Speed, \n - BMW/3-Series/E36 | M3 3.0/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995) , \n - BMW/3-Series/E36 | M3 3.0/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995) , \n - BMW/3-Series/E36 | M3 3.0/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995) , \n - BMW/3-Series/E36 | M3 3.2/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998) , \n - BMW/3-Series/E36 | M3 3.2/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999) , \n - BMW/Z3/E36 | M3/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000) , \n - BMW/Z3/E36 | M3/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 10\nClutch Disc Spline Diameter (mm): 29\nTorque (Nm): 1200\nFlywheel Step: +3.8mm\nDesign: Twin Plate\nStage: Multiplate - street use only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-166.pdf' target='_blank'>TSB-166</a><a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-269.pdf' target='_blank'>TSB-269</a><a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-BM03 ClutchPro.pdf' target='_blank'>TSB-BM03</a>\nClamp Load: \nRecommended for: High horsepower street driven vehicles\nRing Gear Tooth count: \nAdditional infotmation:

230mm Twin Plate

Vehicle group: BMW Z3 E36

Additional info: Parameter 1: 1200 | Parameter 2: High Power Street Upgrade | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
BMW Z3 E36 | 1.9 (1995.11-1999.03) M44 B19 (194S1) 1895 Petrol 103 kW 140 BHP (1995.11 - 1999.03) 1200 High Power Street Upgrade Single Mass Flywheel
BMW Z3 E36 | 2.0 (1999.04-2003.01) M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1999.04 - 2003.01) 1200 High Power Street Upgrade Single Mass Flywheel
BMW Z3 E36 | 2.2 (2000.10-2002.06) M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.10 - 2002.06) 1200 High Power Street Upgrade Single Mass Flywheel
BMW Z3 E36 | 2.8 (1996.11-2000.05) M52 B28 (286S1), M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1996.11 - 2000.05) 1200 High Power Street Upgrade Single Mass Flywheel
BMW Z3 E36 | 3.0 (2000.06-2003.06) M54 B30 (306S3) 2979 Petrol 170 kW 231 BHP (2000.06 - 2003.06) 1200 High Power Street Upgrade Single Mass Flywheel
BMW Z3 E36 | M3 (1997.01-2000.06) S50 B32 (326S1) 3201 Petrol 236 kW 321 BHP (1997.01 - 2000.06) 1200 High Power Street Upgrade Single Mass Flywheel
BMW Z3 E36 | M3 (1998.02-2001.06) S50 B32 (326S1), S50 B32 (326S3) 3201 Petrol 236 kW 321 BHP (1998.02 - 2001.06) 1200 High Power Street Upgrade Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
