• Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm - Mazda RX-7 1.3 (FC1032) (88-92)
1 1

Xtreme Performance

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm - Mazda RX-7 1.3 (FC1032) (88-92)

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm - Mazda RX-7 1.3 (FC1032) (88-92)

SKU: KMZ23520-2E

£1,455.72 GBP
£1,455.72 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

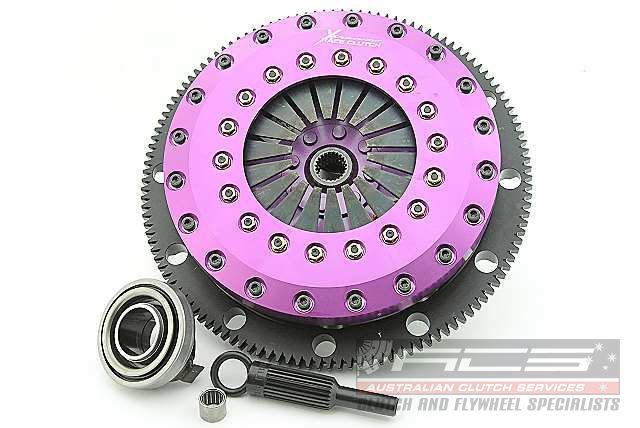

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Applications

- Mazda/RX-7/1.3 (FC1032)/1988.01-1992.06/13B 1308 Petrol 110 kW 150 BHP (1988.01 - 1992.06) , \n - Mazda/RX-7/1.3 Turbo (FC1032)/1989.03-1991.12/13B-MSP 1308 Petrol 147 kW 200 BHP (1989.03 - 1991.12) , \n - Mazda/RX-7/1.3 (FC3S. FC1031)/1985.11-1989.04/RE13B 1308 Petrol 110 kW 150 BHP (1985.11 - 1989.04) , \n - Mazda/RX-7/1.3 Turbo (FC3S. FC1031)/1987.06-1989.11/RE13B 1308 Petrol 133 kW 181 BHP (1987.06 - 1989.11) , \n - Mazda/RX-7/1.3 Turbo (FC3S. FC1031)/1989.03-1991.12/RE13B 1308 Petrol 147 kW 200 BHP (1989.03 - 1991.12) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 23\nClutch Disc Spline Diameter (mm): 26.3\nTorque (Nm): 1830\nFlywheel Step: +3.8mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

230mm Twin Plate

Vehicle group: Mazda RX-7 1.3 (FC1032)

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Mazda RX-7 1.3 (FC1032) (1988.01-1992.06) 13B 1308 Petrol 110 kW 150 BHP (1988.01 - 1992.06) nan nan nan
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
