• Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm - Nissan Skyline R34 (00-98)
1 1

Xtreme Performance

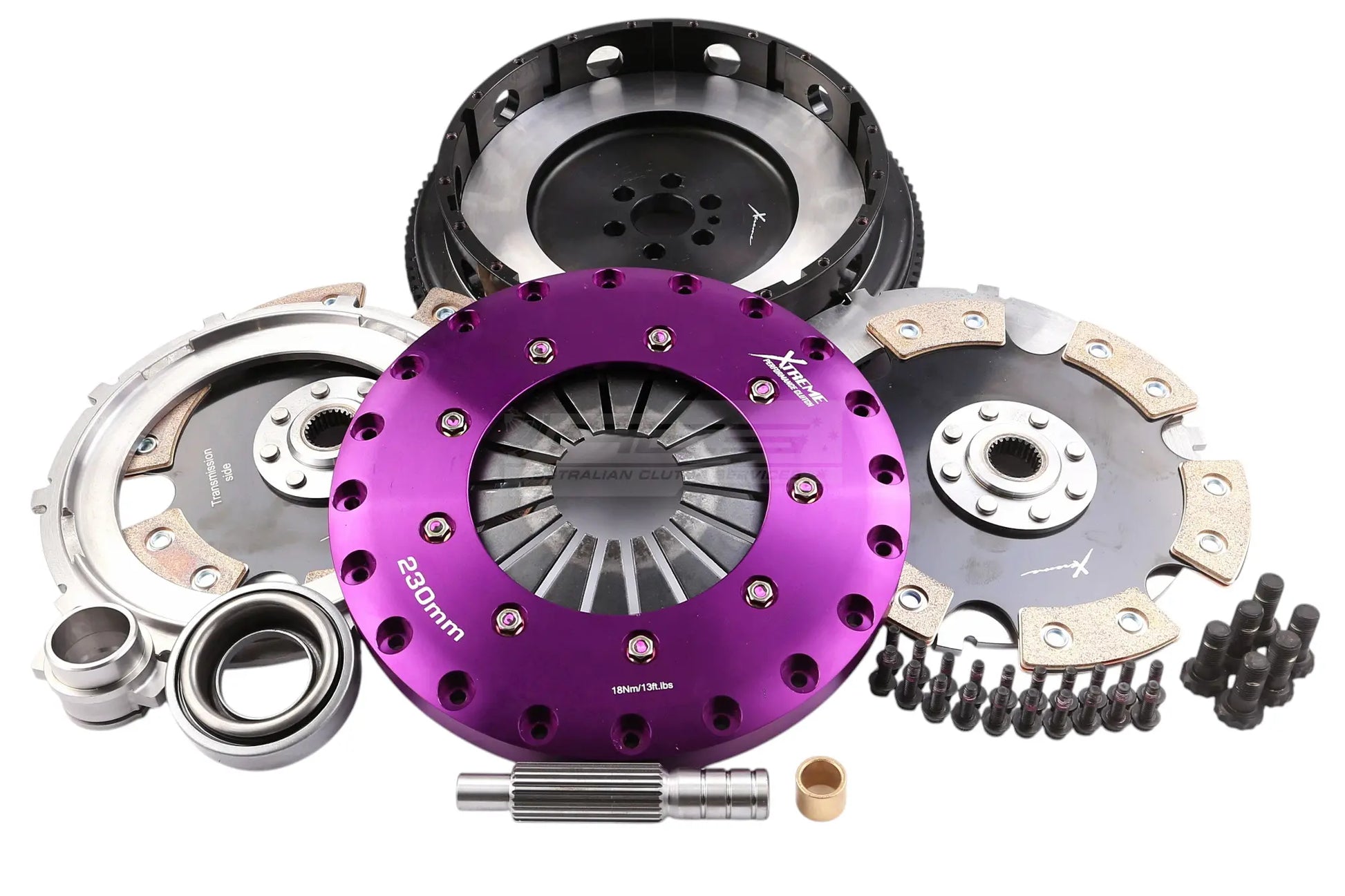

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm - Nissan Skyline R34 (00-98)

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm - Nissan Skyline R34 (00-98)

SKU: KNI23530-2E

£1,388.50 GBP
£1,388.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Applications

- Holden/Calais/VL | 3.0 EFi/1986.03-1988.09/RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09) , \n - Holden/Commodore/VL | 3.0 EFi/1986.03-1988.09/RB30E 2962 Petrol 114 kW 155 BHP (1986.03 - 1988.09) , \n - Holden/Calais/VL | 3.0 EFi Turbo/1986.01-1988.08/RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08) , \n - Holden/Commodore/VL | 3.0 EFi Turbo/1986.01-1988.08/RB30ET 2962 Petrol 150 kW 204 BHP (1986.01 - 1988.08) , \n - Nissan/Patrol/K260 | 3.0/1989.03-1993.09/RB30S 2962 Petrol 99 kW 135 BHP (1989.03 - 1993.09) , \n - Nissan/Patrol/Y60 | 3.0 4WD/1990.01-1997.12/RB30S 2962 Petrol 100 kW 136 BHP (1990.01 - 1997.12) , \n - Nissan/Skyline/R31 | 3.0/1986.07-1990.12/RB30E 2962 Petrol 117 kW 159 BHP (1986.07 - 1990.12) , \n - Nissan/Skyline/R31 | 3.0/1985.08-1989.03/RB30S 2962 Petrol 105 kW 143 BHP (1985.08 - 1989.03) , \n - Nissan/Skyline/R32 | 2.0 Turbo/1990.01-1993.01/RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01) , \n - Nissan/Skyline/R32 | 2.0 Turbo/1989.03-1993.06/RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06) , \n - Nissan/Skyline/R32 | 2.0 Turbo 4x4/1989.03-1993.06/RB20DET 1998 Petrol 158 kW 215 BHP (1989.03 - 1993.06) , \n - Nissan/Skyline/R32 | 2.5/1989.03-1993.06/RB25DE 2498 Petrol 132 kW 179 BHP (1989.03 - 1993.06) , \n - Nissan/Skyline/R33 | 2.5/1993.07-1998.05/RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05) , \n - Nissan/Skyline/R33 | 2.5 4x4/1993.07-1998.05/RB25DE 2498 Petrol 140 kW 190 BHP (1993.07 - 1998.05) , \n - Nissan/Skyline/R34 | 2.5/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) , \n - Nissan/Skyline/R34 | 2.5 4x4/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) , \n - Nissan/Skyline/R32 | 2.0 Turbo 4x4/1990.01-1993.01/RB20DET 1998 Petrol 160 kW 218 BHP (1990.01 - 1993.01) , \n - Nissan/Skyline/R32 | 2.0 Turbo/1990.01-1993.01/RB20DET 1998 Petrol 153 kW 208 BHP (1990.01 - 1993.01) , \n - Nissan/Skyline/R32 | 2.6 Twin Turbo 4x4/1989.04-1993.06/RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06) , \n - Nissan/Skyline/R33 | 2.5 Turbo/1994.01-2000.07/RB25DET 2498 Petrol 184 kW 250 BHP (1994.01 - 2000.07) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 25.4\nTorque (Nm): 1830\nFlywheel Step: +3.8mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-166.pdf' target='_blank'>TSB-166</a>\nClamp Load: 1300Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

230mm Twin Plate

Vehicle group: Nissan Skyline R34

Additional info: Parameter 1: 1830 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Nissan Skyline R34 | 2.5 (1998.06-2000.07) RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) 1830 Motorsport Single Mass Flywheel
Nissan Skyline R34 | 2.5 4x4 (1998.06-2000.07) RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) 1830 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
