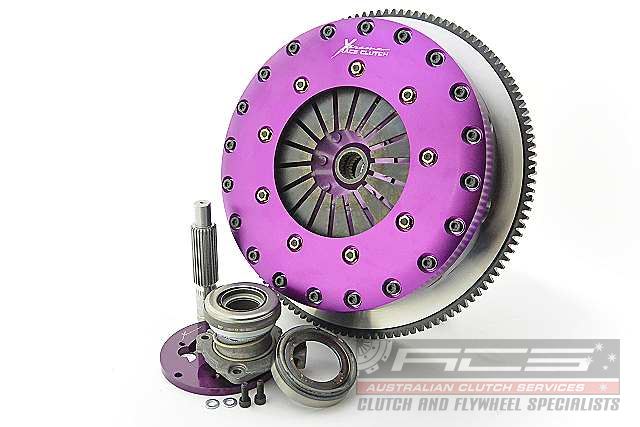

• Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1800Nm - Nissan Skyline V36 (07-15)
1 1

Xtreme Performance

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1800Nm - Nissan Skyline V36 (07-15)

Xtreme Performance - 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1800Nm - Nissan Skyline V36 (07-15)

SKU: KNI23688-2E

£2,391.55 GBP
£2,391.55 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1800Nm 1800Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")

Applications

- Infiniti/G35/3.5/2002.09-2006.12/VQ35DE 3498 Petrol 209 kW 284 BHP (2002.09 - 2006.12) , \n - Infiniti/Q60/3.7/2013.10-2016.09/VQ37VHR 3696 Petrol 243 kW 330 BHP 2013.10 - 2016.09) , \n - Infiniti/Q60/3.7/2013.10-2016.09/VQ37VHR 3696 Petrol 235 kW 320 BHP (2013.10 - 2016.09) , \n - Nissan/370Z/Z34 | 3.7/2009.04-2022.05/VQ37VHR 3696 Petrol 241 kW 328 BHP (2009.04 - 2022.05) , \n - Nissan/370Z/Z34 | 3.7/2009.06-2022.05/VQ37VHR 3696 Petrol 243 kW 330 BHP (2009.06 - 2022.05) , \n - Nissan/370Z/Z34 | 3.7 NISMO/2013.01-2022.05/VQ37VHR 3696 Petrol 245 kW 344 BHP (2013.01 - 2022.05) , \n - Nissan/370Z/Z34 | 3.7/2009.04-2022.05/VQ37VHR 3696 Petrol 248 kW 337 BHP (2009.04 - 2022.05) , \n - Nissan/Skyline/V36 | 370GT/2008.12-2014.12/VQ37VHR 3696 Petrol 243 kW 330 BHP (2008.12 - 2014.12) , \n - Nissan/350Z/Z33 | 3.5/2005.09-2009.12/VQ35HR 3498 Petrol 230 kW 313 BHP (2005.09 - 2009.12) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 25.4\nTorque (Nm): 1830\nFlywheel Step: +3.8mm\nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: 1350Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

230mm Twin Plate

Vehicle group: Nissan Skyline V36

Additional info: Parameter 1: 1830 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Nissan Skyline V36 | 370GT (2007.10-2015.03) VQ37VHR 3696 Petrol 245 kW 333 BHP (2007.10 - 2015.03) 1830 Motorsport Single Mass Flywheel
Nissan Skyline V36 | 370GT 4x4 (2008.12-2014.12) VQ37VHR 3696 Petrol 243 kW 330 BHP (2008.12 - 2014.12) 1830 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
