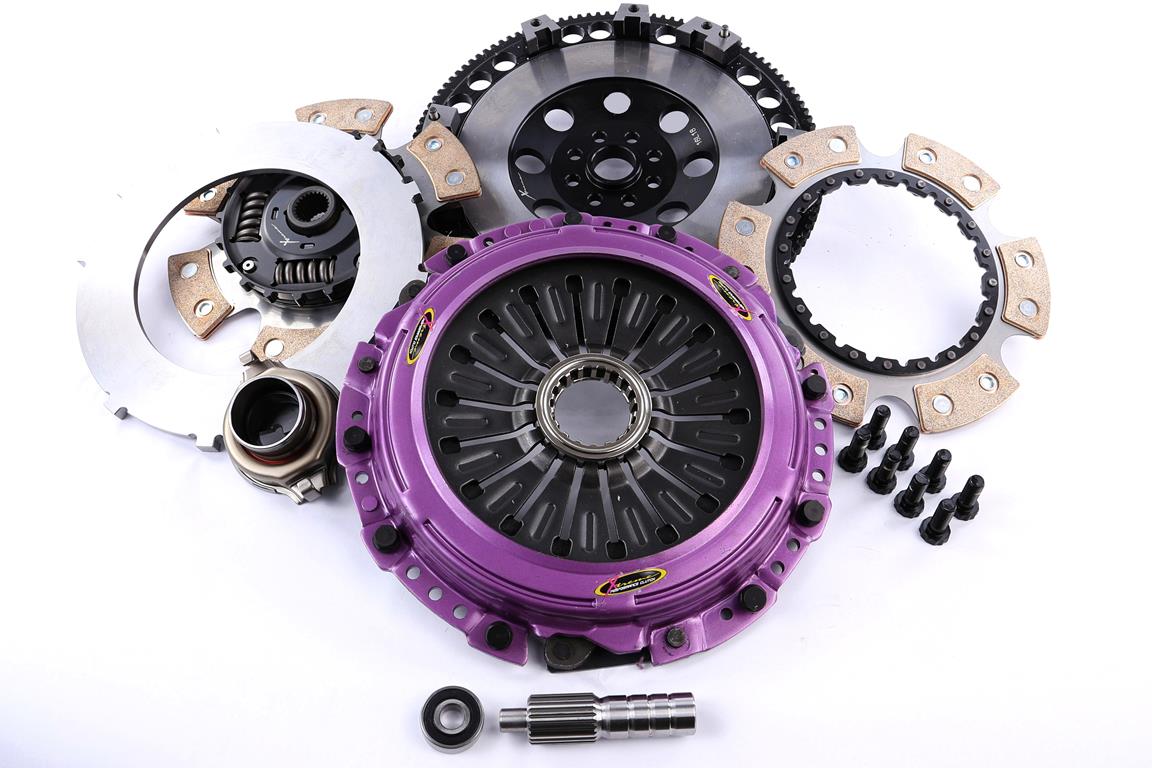

• Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Subaru Impreza 2.5 WRX STi AWD (GDF) (05-07)
1 1

Xtreme Performance

Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Subaru Impreza 2.5 WRX STi AWD (GDF) (05-07)

Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Subaru Impreza 2.5 WRX STi AWD (GDF) (05-07)

SKU: KSU23531-2B

£1,928.90 GBP
£1,928.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Pull type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1000Nm 1000Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")
\n

Applications

- Subaru/Impreza/2.0 Turbo GT AWD (GC8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 Turbo GT AWD (GF8)/1998.06-2000.12/EJ205 1994 Petrol 160 kW 218 BHP (1998.06 - 2000.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 Turbo AWD (GGA)/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 WRX Turbo AWD (GDA) 6 speed/2000.12-2005.12/EJ205 1994 Petrol 160 kW 218 BHP (2000.12 - 2005.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 WRX Turbo AWD (GGA)/2002.12-2006.09/EJ205 1994 Petrol 165 kW 225 BHP (2002.12 - 2006.09) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 WRX AWD (GGA)/2001.09-2005.12/EJ205 1994 Petrol 169 kW 230 BHP (2001.09 - 2005.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 AWD (GC8)/1998.09-2000.09/EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 - 2000.09) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 WRX STi AWD (GDB)/2001.11-2005.07/EJ207 1994 Petrol 195 kW 265 BHP (2001.11 - 2005.07) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 WRX STi AWD (GGB)/2000.10-2002.10/EJ207 1994 Petrol 206 kW 280 BHP (2000.10 - 2002.10) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 AWD (GDB)/2005.10-2007.03/EJ207 1994 Petrol 206 kW 280 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.0 WRX STi AWD/2004.02-2005.07/EJ207 1994 Petrol 235 kW 320 BHP (2004.02 - 2005.07) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 WRX STI AWD (GVF)/2010-2014/EJ255 2457 Petrol 221 kW 301 BHP (2010 - 2014) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 i WRX STI AWD/2005.09-2007.12/EJ257 2457 Petrol 195 kW 265 BHP (2005.09 - 2007.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 WRX STi AWD (GDF)/2005.09-2007.12/EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 AWD/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 AWD (GDF)/2005.10-2007.03/EJ257 2457 Petrol 221 kW 300 BHP (2005.10 - 2007.03) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 WRX STI AWD (GRF)/2008.01-2013.08/EJ257 2457 Petrol 221 kW 301 BHP (2008.01 - 2013.08) , Suits 6 Speed Gearbox\n - Subaru/WRX/STi 2.5 AWD/2014.06-2021/EJ257 2457 Petrol 221 kW 301 BHP (2014.06 - 2021) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 WRX STI 330S AWD/2009.05-2010.12/EJ257 2457 Petrol 243 kW 330 BHP (2009.05 - 2010.12) , Suits 6 Speed Gearbox\n - Subaru/Impreza/2.5 STI CS400 AWD (GRF)/2010.04-2013.08/EJ257 2457 Petrol 294 kW 400 BHP (2010.04 - 2013.08) , Suits 6 Speed Gearbox

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 25.2\nTorque (Nm): 1000\nFlywheel Step: \nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

230mm Twin Plate - 6 Speed Gearbox

Vehicle group: Subaru Impreza 2.5 WRX STi AWD (GDF)

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Subaru Impreza 2.5 WRX STi AWD (GDF) (2005.09-2007.12) EJ257 2457 Petrol 206 kW 280 BHP (2005.09 - 2007.12) Suits 6 Speed Gearbox nan nan nan
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
