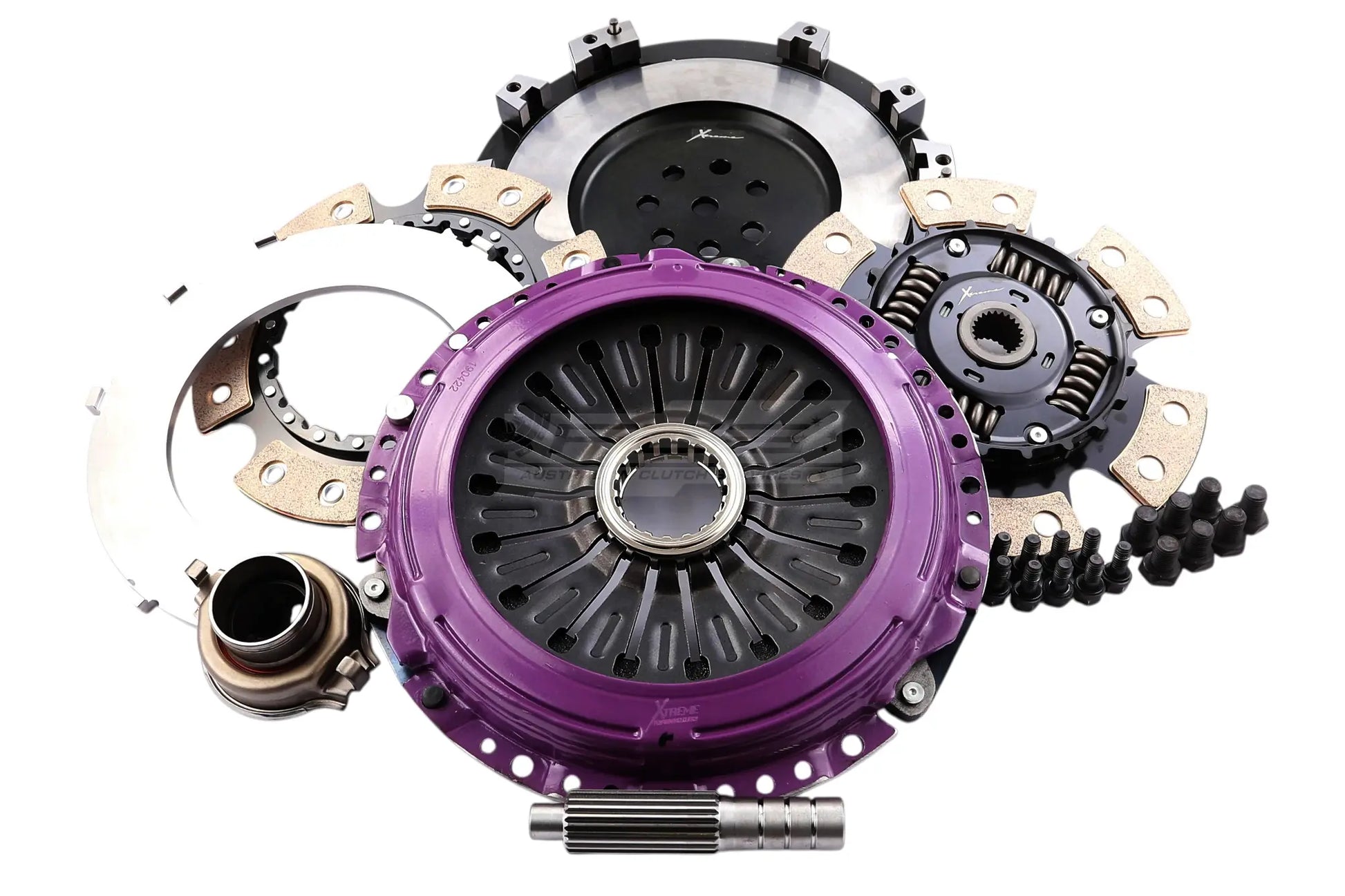

Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel - Mitsubishi Lancer EVO VII (CT9A) (01-03)

Xtreme Performance - 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel - Mitsubishi Lancer EVO VII (CT9A) (01-03)

SKU: KMI23522-2B

£1,973.90 GBP
£1,973.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.

The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design
Flat Diaphragm Rolled Diaphragm
Clamping Force 1300kg 1300kg
Torque Rating 1000Nm 1000Nm
Bearing Contact Diameter 65mm FLAT BEARING
Bearing Load (@ 48mm) 180kg 150kg
Release Travel Required 7mm 7mm
Assembly Mass (without flywheel) 8.30kg 8.30kg
Disc Set Static Mass 2.25kg 2.25kg
Friction Thickness New 8mm (0.315") 8mm (0.315")
Friction Thickness Worn 7.5mm (0.295") 7.5mm (0.295")
\n

Applications

- Mitsubishi/Lancer/EVO VIII - 260 (CT9A)/2004.03-2005.07/4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07) , \n - Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01) , \n - Mitsubishi/Lancer/EVO V (CP9A. CT9A)/1998.01-1998.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12) , \n - Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01) , \n - Mitsubishi/Lancer/EVO VIII (CT9A)/2003.04-2005.03/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03) , \n - Mitsubishi/Lancer/EVO IX (CT9A)/2005.01-2007.09/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09) , \n - Mitsubishi/Lancer/EVO IX (CT9A)/2005.08-2006.09/4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09) , \n - Mitsubishi/Lancer/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04) , \n - Mitsubishi/Lancer/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04) , \n - Mitsubishi/Lancer/EVO IX - FQ-300 (CT9A)/2005.06-2006.12/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12) , \n - Mitsubishi/Lancer/EVO VIII - FQ-320 (CT9A)/2004.04-2006.08/4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08) , \n - Mitsubishi/Lancer/EVO VIII - FQ-330 (CT9A)/2003.10-2006.08/4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08) , \n - Mitsubishi/Lancer/EVO VIII - FQ-340 (CT9A)/2004.04-2005.03/4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03) , \n - Mitsubishi/Lancer/EVO IX - FQ-340 (CT9A)/2005.06-2007.12/4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12) , \n - Mitsubishi/Lancer/EVO IX - FQ-360 (CT9A)/2006.07-2007.12/4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12) , \n - Mitsubishi/Lancer/EVO VIII - FQ-400 (CT9A)/2004.10-2006.08/4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 23\nClutch Disc Spline Diameter (mm): 26\nTorque (Nm): 1000\nFlywheel Step: \nDesign: Twin Plate\nStage: Multiplate - track use only\nTech Bulletins: \nClamp Load: \nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

230mm Twin Plate

Vehicle group: Mitsubishi Lancer EVO VII (CT9A)

Additional info: Parameter 1: 1000 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Mitsubishi Lancer EVO VII (CT9A) (2001.01-2003.01) 4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01) 1000 Motorsport Single Mass Flywheel
Mitsubishi Lancer EVO VII (CT9A) (2001.01-2003.01) 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01) 1000 Motorsport Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
