Xtreme Performance

Xtreme Performance - 230mm Sprung hub Organic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Mazda 3 2.3 MPS Turbo (BK14) (06-09)

Xtreme Performance - 230mm Sprung hub Organic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Mazda 3 2.3 MPS Turbo (BK14) (06-09)

SKU: KMZ23530-2A

£1,872.72 GBP
£1,872.72 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

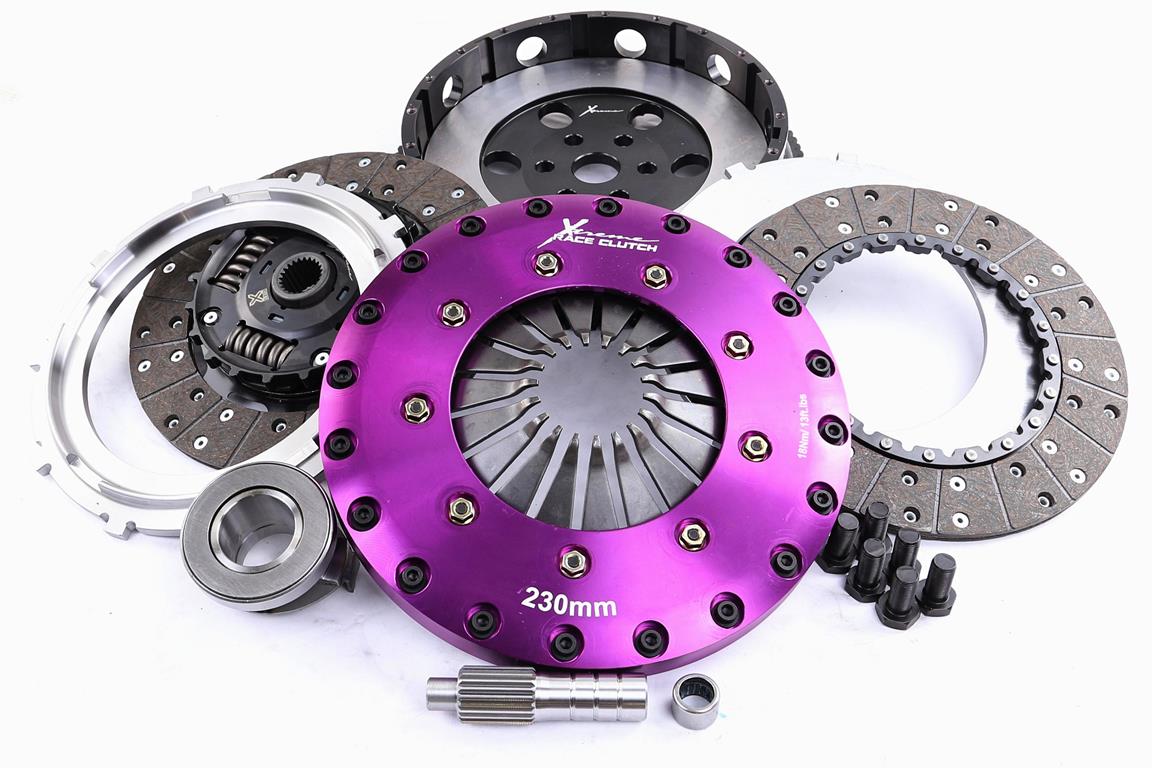

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

The Xtreme 230mm Twin Plate Sprung Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles that require reduced shock loading on the transmission in comparison to conventional rigid style discs. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design

Applications

- Mazda/6/2.3 MPS Turbo (GG3P)/2005.12-2007.08/L3KG 2261 Petrol 191 kW 260 BHP (2005.12 - 2007.08) , \n - Mazda/3/2.3 MPS Turbo (BK14)/2006.12-2009.06/L3M6 2261 Petrol 191 kW 260 BHP (2006.12 - 2009.06) , \n - Mazda/CX-7/2.3 MZR DISI Turbo AWD (ER3P)/2007.10-2009.08/L3-VDT 2261 Petrol 190 kW 258 BHP (2007.10 - 2009.08) , \n - Mazda/CX-7/2.3 MZR DISI Turbo AWD (ER3P)/2009.06-2013.03/L3-VDT 2261 Petrol 191 kW 260 BHP (2009.06 - 2013.03) , \n - Mazda/3/2.3 MPS Turbo (BL14)/2008.12-2014.09/L3Y7 2261 Petrol 191 kW 260 BHP (2008.12 - 2014.09) , \n - Mazda/3/2.3 DiSi Turbo MPS (BK3P)/2006.06-2009.06/L3YH 2261 Petrol 184 kW 250 BHP (2006.06 - 2009.06) , \n - Mazda/CX-7/2.5 MZR (ER10L)/2009.07-2013.03/L5-VE 2488 Petrol 120 kW 163 BHP (2009.07 - 2013.03) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 23\nClutch Disc Spline Diameter (mm): 26.3\nTorque (Nm): 1000\nFlywheel Step: \nDesign: Twin Plate\nStage: Multiplate - street use only\nTech Bulletins: \nClamp Load: \nRecommended for: High horsepower street driven vehicles\nRing Gear Tooth count: \nAdditional infotmation: Conversion from dual-mass flywheel to single-mass flywheel

230mm Twin Plate

Vehicle group: Mazda 3 2.3 MPS Turbo (BK14)

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Mazda 3 2.3 MPS Turbo (BK14) (2006.12-2009.06) L3M6 2261 Petrol 191 kW 260 BHP (2006.12 - 2009.06) nan nan nan
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
