• Xtreme Performance - 230mm Sprung Organic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Toyota Supra 3.0 i Bi-Turbo (JZA80_) (02-93)
1 1

Xtreme Performance

Xtreme Performance - 230mm Sprung Organic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Toyota Supra 3.0 i Bi-Turbo (JZA80_) (02-93)

Xtreme Performance - 230mm Sprung Organic Twin Plate Clutch Kit Incl Flywheel 1000Nm - Toyota Supra 3.0 i Bi-Turbo (JZA80_) (02-93)

SKU: KTY23536-2A

£2,194.50 GBP
£2,194.50 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Xtreme Clutch 230mm twin plate kit
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.

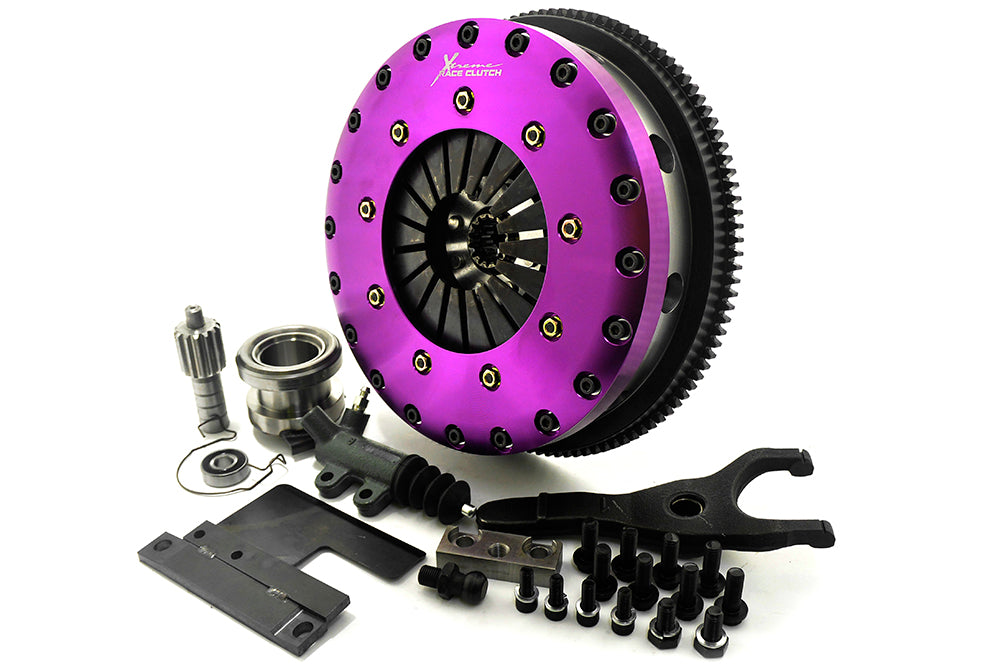

The Xtreme 230mm Twin Plate Sprung Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles that require reduced shock loading on the transmission in comparison to conventional rigid style discs. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.

Product Features:

  • Torque capacity 1000Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design

Applications

- Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1993.05-2002.07/2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07) , \n - Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1994.03-2002.07/2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07) , \n - Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1993.05-2002.07/2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07) ,

Additional Info

Clutch Disc Diameter (mm): 230\nClutch Disc Spline Count: 14\nClutch Disc Spline Diameter (mm): 32\nTorque (Nm): 1000\nFlywheel Step: +3.8mm\nDesign: Twin Plate\nStage: Multiplate - street use only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-166.pdf' target='_blank'>TSB-166</a>\nRecommended for: High horsepower street driven vehicles

230mm Twin Plate

Vehicle group: Toyota Supra 3.0 i Bi-Turbo (JZA80_)

Additional info: Parameter 1: 1000 | Parameter 2: High Power Street Upgrade | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year Engine Description Note Parameter 1 Parameter 2 Parameter 3
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1993.05-2002.07) 2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07) Pull To Push Type Conversion 1000 High Power Street Upgrade Single Mass Flywheel
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1994.03-2002.07) 2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07) Pull To Push Type Conversion 1000 High Power Street Upgrade Single Mass Flywheel
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1993.05-2002.07) 2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07) Pull To Push Type Conversion 1000 High Power Street Upgrade Single Mass Flywheel
Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
