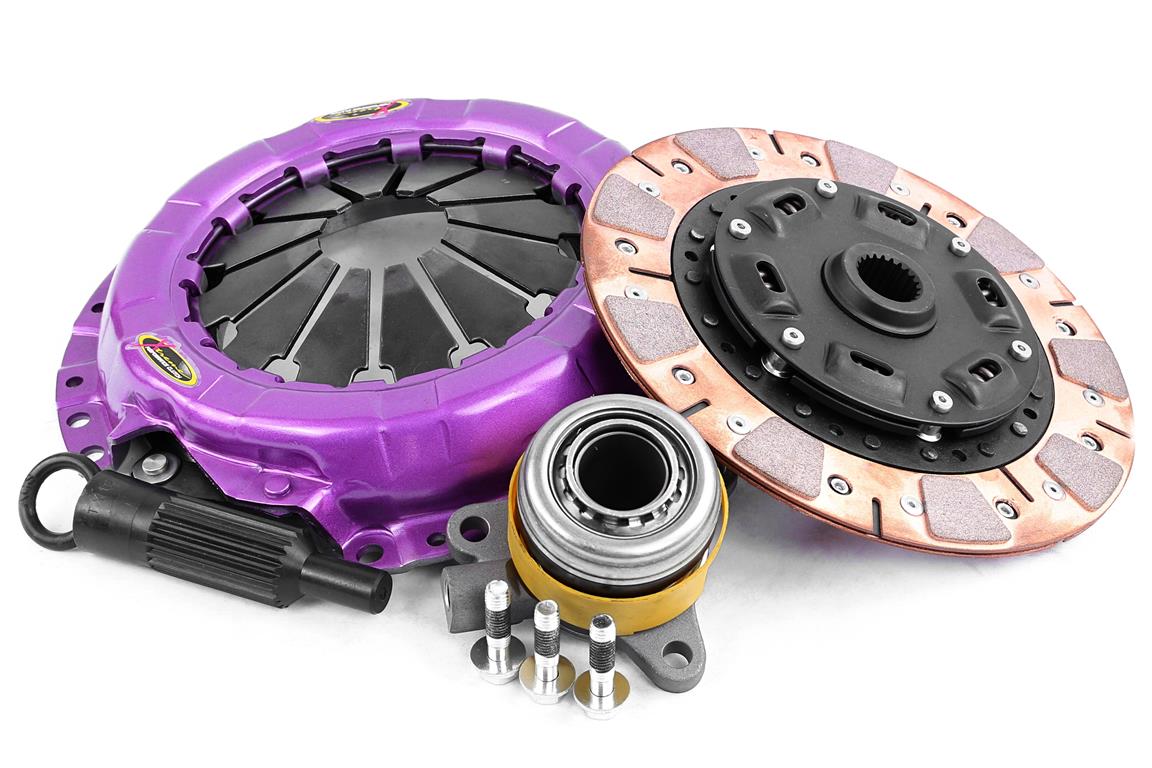

Xtreme Performance Clutch Kit Heavy Duty Cushioned Ceramic 16% increased 390Nm - Toyota Auris E15 (07-12)

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 390Nm
• Clamp load 0,16 Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Lotus/Elise/1.6/2010-2018/1ZR-FAE 1598 Petrol 100 kW 136 BHP(2010-2018) , \n - Toyota/Avensis/1.6 (ZRT270_)/2008.11-2018.10/1ZR-FAE 1598 Petrol 97 kW 132 BHP (2008.11 - 2018.10) , \n - Toyota/Verso/1.6 (ZGR20_)/2009.04-2018.08/1ZR-FAE 1598 Petrol 97 kW 132 BHP (2009.04 - 2018.08) , \n - Toyota/Auris/1.6 (ZRE151_)/2009.05-2012.09/1ZR-FAE 1598 Petrol 97 kW 132 BHP (2009.05 - 2012.09) , \n - Toyota/Auris/1.6 (ZRE181_. ZRE185_)/2012.10-2018.12/1ZR-FAE 1598 Petrol 97 kW 132 BHP (2012.10 - 2018.12) , \n - Toyota/Corolla/1.6 (ZRE181_)/2013.06-2018.12/1ZR-FAE 1598 Petrol 97 kW 132 BHP (2013.06 - 2018.12) , \n - Toyota/Auris/1.6 (ZRE185_)/2013.07-2018.12/1ZR-FAE 1598 Petrol 97 kW 132 BHP (2013.07 - 2018.12) , \n - Toyota/Corolla/1.6 VVTi (ZRE151)/2007.03-2010.12/1ZR-FE 1598 Petrol 100 kW 136 BHP (2007.03 - 2010.12) , \n - Toyota/Corolla/1.6 VVTi (ZRE141_. ZRE151_)/2010.07-2014.05/1ZR-FE 1598 Petrol 90 kW 122 BHP (2010.07 - 2014.05) , \n - Toyota/Corolla/1.6 Dual VVTi (ZRE141. ZRE151)/2007.01-2014.07/1ZR-FE 1598 Petrol 91 kW 124 BHP (2007.01 - 2014.07) , \n - Toyota/Auris/1.6 (ZRE151_)/2007.03-2012.09/1ZR-FE 1598 Petrol 91 kW 124 BHP (2007.03 - 2012.09) , \n - Toyota/Corolla/1.6 (ZRE151)/2006.11-2013.11/1ZR-FE, 1ZR-FAE 1598 Petrol 97 kW 132 BHP (2006.11 - 2013.11) , \n - Toyota/Auris/1.8 (ZRE152_)/2009.02-2012.09/2ZR-FAE 1798 Petrol 106 kW 144 BHP (2009.02 - 2012.09) , \n - Toyota/Auris/1.8 (ZRE152_)/2009.02-2012.09/2ZR-FAE 1798 Petrol 108 kW 147 BHP (2009.02 - 2012.09) , \n - Toyota/Avensis/1.8 (ZRT271_)/2009.02-2018.10/2ZR-FAE 1798 Petrol 108 kW 147 BHP (2009.02 - 2018.10) , \n - Toyota/Verso/1.8 (ZGR21_)/2009.04-2018.08/2ZR-FAE 1798 Petrol 108 kW 147 BHP (2009.04 - 2018.08) , \n - Toyota/Corolla/1.8 (ZRE142. ZRE152)/2006.10-2014.07/2ZR-FE 1798 Petrol 100 kW 136 BHP (2006.10 - 2014.07) , \n - Toyota/Auris/1.8 (ZRE182)/2012.10-2018.12/2ZR-FE 1798 Petrol 103 kW 140 BHP (2012.10 - 2018.12) , \n - Toyota/Auris/1.8 (ZRE152_. ZZE122)/2006.10-2012.09/2ZR-FE, 2ZR-FAE 1798 Petrol 100 kW 136 BHP (2006.10 - 2012.09) , \n - Toyota/Corolla/1.8 VVTi (ZRE172. ZRE182)/2013.06-2019.08/2ZR-FE, 2ZR-FBE 1798 Petrol 103 kW 140 BHP (2013.06 - 2019.08) , \n - Lotus/Elise/1.8/2012-2020/2ZR-GZE 1798 Petrol 162 kW 220 BHP (2012-2020) , \n - Lotus/Elise/1.8 CUP 250/2018-2021/2ZR-GZE 1798 Petrol 183 kW 246 BHP (2018- 2021) ,

Additional Info

Clutch Disc Diameter (mm): 215\nClutch Disc Spline Count: 21\nClutch Disc Spline Diameter (mm): 24\nTorque (Nm): 390\nFlywheel Step: 0,50\nDesign: Single Plate\nStage: Stage 2\nTech Bulletins: \nClamp Load: 16% increased\nRecommended for: Track - Stage 2\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Toyota Auris E15

Additional info: Parameter 1: 390 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Toyota Auris E15 | 1.6 (ZRE151_) (2007.03-2012.09)	1ZR-FE 1598 Petrol 91 kW 124 BHP (2007.03 - 2012.09)			390	Track Use	Not included
Toyota Auris E15 | 1.6 (ZRE151_) (2009.05-2012.09)	1ZR-FAE 1598 Petrol 97 kW 132 BHP (2009.05 - 2012.09)			390	Track Use	Not included
Toyota Auris E15 | 1.8 (ZRE152) (2006.10-2012.09)	2ZR-FE, 2ZR-FAE 1798 Petrol 100 kW 136 BHP (2006.10 - 2012.09)		Suits vehicles manufactured from 01/2009.	390	Track Use	Not included
Toyota Auris E15 | 1.8 (ZRE152) (2009.02-2012.09)	2ZR-FAE 1798 Petrol 106 kW 144 BHP (2009.02 - 2012.09)			390	Track Use	Not included
Toyota Auris E15 | 1.8 (ZRE152) (2009.02-2012.09)	2ZR-FAE 1798 Petrol 108 kW 147 BHP (2009.02 - 2012.09)			390	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
