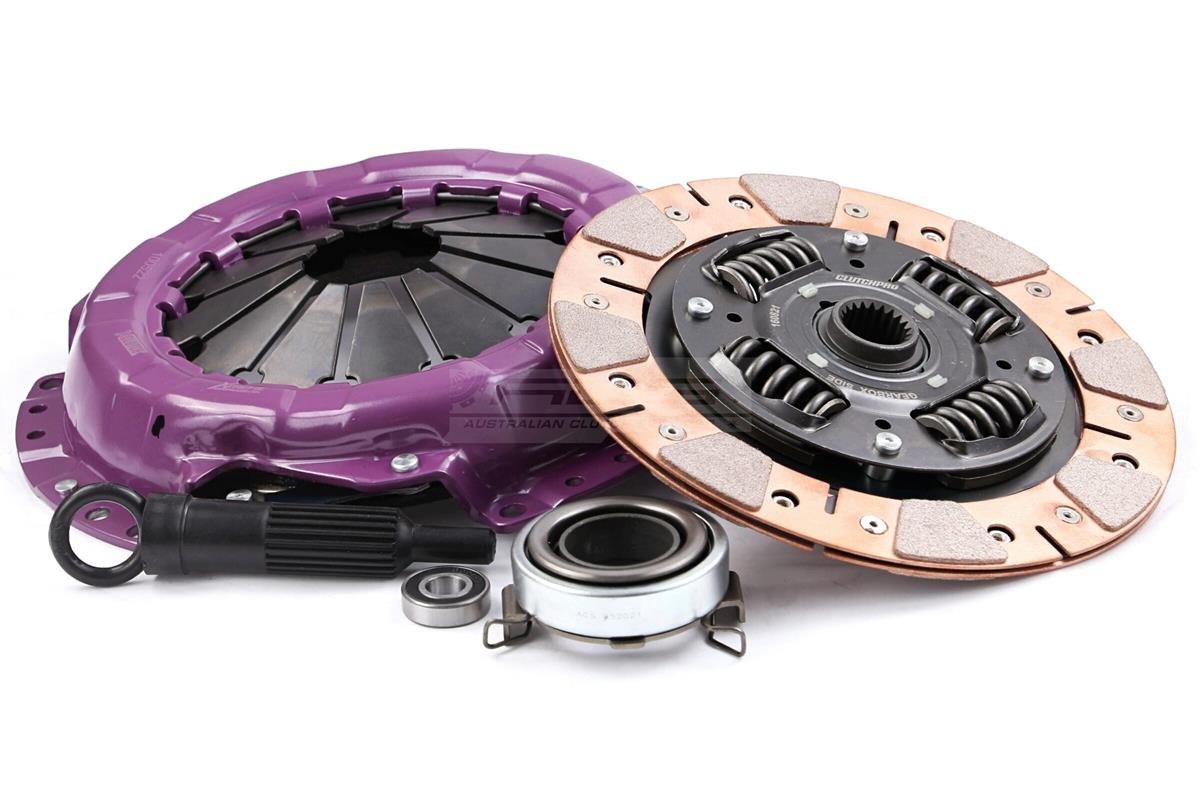

Xtreme Performance Clutch Kit Heavy Duty Cushioned Ceramic 390Nm - Toyota Corolla E9 (87-92)

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 390Nm
• Clamp load Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Toyota/Starlet/1.5 D (NP70L)/1986.12-1989.12/1N 1453 Diesel 40 kW 54 BHP (1986.12 - 1989.12) , \n - Toyota/Corolla/1.3 i (EE90)/1987.08-1992.04/2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04) , \n - Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.11-1990.06/4A-GEL 1587 Petrol 91 kW 124 BHP (1984.11 - 1990.06) , \n - Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.06-1989.11/4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 - 1989.11) , \n - Toyota/MR2/Gen. I | 1.6 (AW11)/1984.11-1989.12/4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 - 1989.12) , \n - Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.11-1990.06/4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 - 1990.06) , \n - Toyota/Corolla/1.6 (AE82)/1983.06-1987.08/4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08) , \n - Toyota/Corolla/1.6 (AE82)/1985.08-1987.08/4A-LC 1587 Petrol 54 kW 73 BHP (1985.08 - 1987.08) , \n - Toyota/Carina/1.6 (AT151_)/1983.10-1987.11/4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 - 1987.11) ,

Additional Info

Clutch Disc Diameter (mm): 215\nClutch Disc Spline Count: 21\nClutch Disc Spline Diameter (mm): 23.8\nTorque (Nm): 390\nFlywheel Step: +.5mm/.020""\nDesign: Single Plate\nStage: Stage 2\nTech Bulletins: \nClamp Load: \nRecommended for: Track - Stage 2\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Toyota Corolla E9

Additional info: Parameter 1: 390 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Toyota Corolla E9 | 1.3 (EE90) (1987.08-1992.04)	2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04)			390	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
