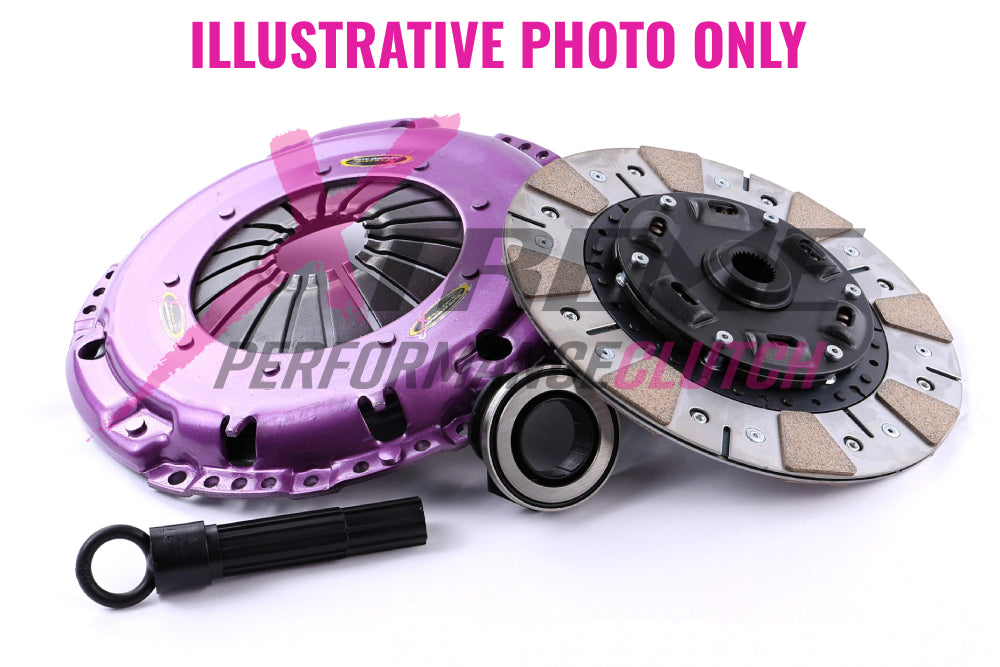

Xtreme Performance Clutch Kit Heavy Duty Cushioned Ceramic 550Kg (40% inc.) 320Nm - Toyota Platz 1.3 (NCP10_) (05-99)

Recommended for: Motorsport Applications

These kits are available with cushioned ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 320Nm
• Clamp load 550Kg 40% Increased over standard
• Cushioned Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The Xtreme Clutch cushioned ceramic range of upgrades offers exceptional heat capacity and torque capacity whilst providing cushioning between the friction surfaces of the disc, ensuring excellent driveability. The discs still retain the sprung hub that helps to reduce shock loading. These kits are commonly used in vehicles that are used on the road occasionally but mainly focused on track applications.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Toyota/Corolla/1.5 (NZE121. NZE120. ZZE123. ZZA120)/2001.10-2007.10/1NZ-FE 1497 Petrol 78 kW 106 BHP (2001.10 - 2007.10) , \n - Toyota/Platz/1.3 (NCP16_)/1999.08-2005.08/2NZ-FE 1299 Petrol 63 kW 86 BHP (1999.08 - 2005.08) , \n - Toyota/Yaris / Vios/1.3 (NCP92_)/2006.01-2013.04/2NZ-FE 1299 Petrol 63 kW 86 BHP (2006.01 - 2013.04) , \n - Toyota/Yaris/1.3 (NCP130_)/2011.12-2017.01/2NZ-FE 1299 Petrol 63 kW 86 BHP (2011.12-2017.01) , \n - Toyota/Corolla/1.3 (NZE120_. ZZE120_)/2000.08-2004.05/2NZ-FE 1299 Petrol 65 kW 88 BHP (2000.08 - 2004.05) , \n - Toyota/Yaris / Vios/1.3 (NCP92_. SCP92_)/2005.09-2013.10/2NZ-FE, 2SZ-FE 1298 Petrol 64 kW 87 BHP (2005.09 - 2013.10) , \n - Toyota/Yaris/1.3 VVT-i (NCP90_)/2005.11-2012.12/2NZ-FE, 2SZ-FE 1299 Petrol 63 kW 86 BHP (2005.11 - 2012.12) , \n - Toyota/Corolla/1.6 (AE92)/1987.05-1992.11/4A-F 1587 Petrol 66 kW 90 BHP (1987.05 - 1992.11) , \n - Toyota/Corolla/1.6 (AE92)/1987.05-1992.04/4A-F 1587 Petrol 70 kW 95 BHP (1987.05 - 1992.04) , \n - Holden/H Series/1.6/1991.09-1994.10/4A-FC 1587 Petrol 67 kW 90 BHP (1991.09 - 1994.10) , \n - Toyota/Corolla/1.6 (AE92)/1987.05-1992.05/4A-FE 1587 Petrol 76 kW 103 BHP (1987.05 - 1992.05) , \n - Toyota/Corolla/1.6 i (AE92)/1987.05-1992.05/4A-FE 1587 Petrol 77 kW 105 BHP (1987.05 - 1992.05) , \n - Toyota/Corolla/1.4 (ZZE111_)/1999.10-2002.01/4ZZ-FE 1398 Petrol 71 kW 97 BHP (1999.10 - 2002.01) , \n - Toyota/Corolla/1.4 16V (ZZE111_)/2000.02-2001.11/4ZZ-FE 1398 Petrol 71 kW 97 BHP (2000.02 - 2001.11) , \n - Toyota/Corolla/1.4 VVT-i (ZZE120_)/2001.11-2007.02/4ZZ-FE 1398 Petrol 71 kW 97 BHP (2001.11 - 2007.02) , \n - Holden/H Series/1.4/1991.09-1992.11/6A-FC 1397 Petrol 60 kW 80 BHP (1991.09 - 1992.11) , \n - Toyota/Corolla/1.4 (AE90)/1989.07-1992.11/6A-FC 1397 Petrol 60 kW 82 BHP (1989.07 - 1992.11) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 21\nClutch Disc Spline Diameter (mm): 23.8\nTorque (Nm): 320\nFlywheel Step: +.5mm/.020""\nDesign: Single Plate\nStage: Stage 2\nTech Bulletins: \nClamp Load: 550Kg (40% inc.)\nRecommended for: Track - Stage 2\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Toyota Platz 1.3 (NCP10_)

Additional info: Parameter 1: 320 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Toyota Platz 1.3 (NCP10_) (1999.08-2005.08)	2NZ-FE 1299 Petrol 63 kW 86 BHP (1999.08 - 2005.08)		Suits vehicles manufactured until 11/2005.	320	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
