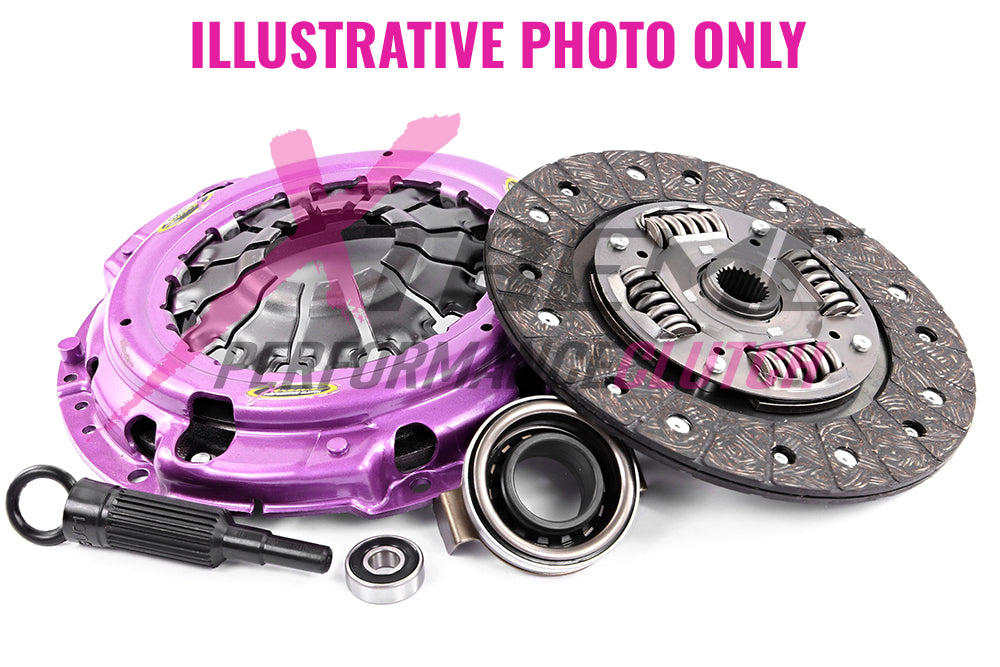

Xtreme Performance Clutch Kit Heavy Duty Organic 190Nm 500kg (60% inc.) - Mazda 323 1.3 (BW) (86-87)

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

• Torque capacity 190Nm

• Clamp load 500kg 60% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Toyota/Starlet/1.0 (KP60)/1978.02-1984.09/2K 993 Petrol 33 kW 45 BHP (1978.02 - 1984.09) , \n - Toyota/Corolla/1.2 (KE36. KE25. KE30. KE26)/1975.07-1979.07/3K-B, 3K-C, 3K, 3K-H 1166 Petrol 40 kW 54 BHP (1975.07 - 1979.07) , \n - Toyota/Corolla/1.2 (KE20. KE25. KE30)/1974.08-1980.12/3K-B, 3K-C, 3K-H 1166 Petrol 40 kW 54 BHP (1974.08 - 1980.12) , \n - Toyota/Corolla/1.2 (KE35)/1975.07-1980.01/3K-B, 3K-C, 3K-H 1166 Petrol 40 kW 54 BHP (1975.07 - 1980.01) , \n - Toyota/Corolla/1.2 (KE36_)/1976.09-1980.01/3K-B, 3K-C, 3K-H 1166 Petrol 40 kW 54 BHP (1976.09 - 1980.01) , \n - Toyota/Starlet/1.2 S (KP62)/1978.10-1982.08/3K-H 1166 Petrol 39 kW 53 BHP (1978.10 - 1982.08) , \n - Toyota/Starlet/1.2 (KP61_)/1978.02-1982.09/3K-H 1166 Petrol 41 kW 56 BHP (1978.02 - 1982.09) , \n - Toyota/Starlet/1.3 (KP61_)/1978.02-1984.09/4K 1290 Petrol 41 kW 56 BHP (1978.02 - 1984.09) , \n - Toyota/Corolla/1.3 (KE70)/1979.09-1983.06/4K 1290 Petrol 44 kW 60 BHP (1979.09 - 1983.06) , \n - Toyota/Starlet/1.3 (KP61_)/1981.08-1982.08/4K 1290 Petrol 46 kW 63 BHP (1981.08 - 1982.08) , \n - Toyota/Corolla/1.3 (KE70)/1982.02-1987.08/4K 1290 Petrol 48 kW 65 BHP (1982.02 - 1987.08) , \n - Toyota/Starlet/1.3 S (KP61)/1982.08-1984.09/4K 1290 Petrol 48 kW 65 BHP (1982.08 - 1984.09) , \n - Toyota/Corolla/1.3 (KE55)/1978.11-1981.11/4K-C 1290 Petrol 44 kW 60 BHP (1978.11 - 1981.11) , \n - Toyota/Corolla/1.3 (KE70)/1979.12-1982.01/4K-C 1290 Petrol 44 kW 60 BHP (1979.12 - 1982.01) , \n - Toyota/Starlet/1.3 (KP61_)/1982.09-1984.09/4K-C 1290 Petrol 44 kW 60 BHP (1982.09 - 1984.09) , \n - Mazda/323/1.3 (BW)/1986.01-1987.06/B335 1324 Petrol 52 kW 71 BHP (1986.01 - 1987.06) ,

Additional Info

Clutch Disc Diameter (mm): 180\nClutch Disc Spline Count: 19\nClutch Disc Spline Diameter (mm): 21.5\nTorque (Nm): 190\nFlywheel Step: +1.0mm/.040""\nDesign: Single Plate\nStage: Stage 1\nTech Bulletins: \nClamp Load: 500Kg (60% inc.)\nRecommended for: Street Performance & Towing - Stage 1\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Mazda 323 1.3 (BW)

Additional info: Parameter 1: 190 | Parameter 2: Street Upgrade | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Mazda 323 1.3 (BW) (1986.01-1987.06)	B335 1324 Petrol 52 kW 71 BHP (1986.01 - 1987.06)			190	Street Upgrade	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
