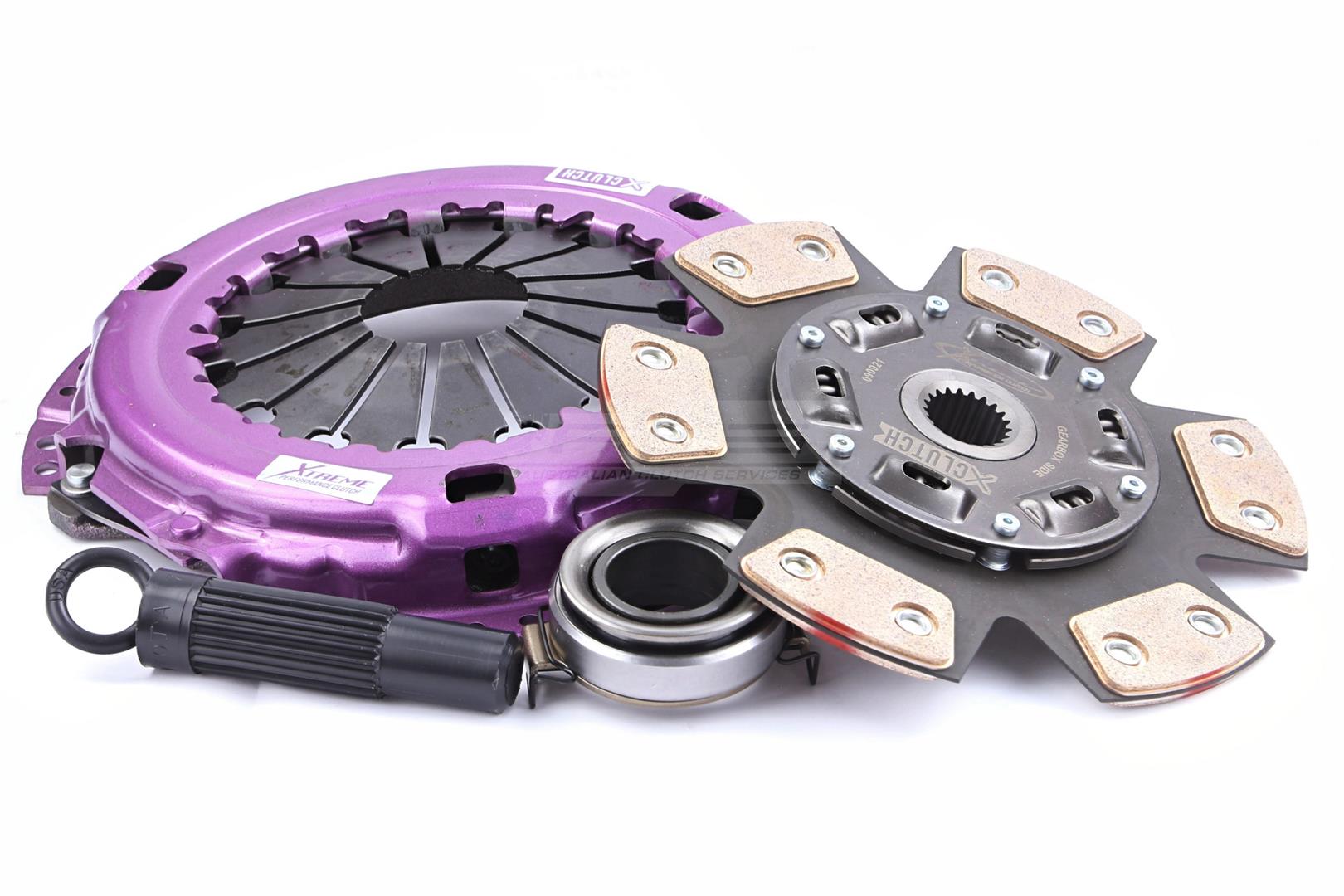

Xtreme Performance Clutch Kit Heavy Duty Sprung Ceramic 630Nm 820kg (30% inc.) - Toyota Celica 2.0 GTi (ST183) (90-93)

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 630Nm
• Clamp load 820kg 30% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Toyota/Celica/2.0 GTi (ST182)/1989.10-1993.11/3S-GE 1998 Petrol 115 kW 156 BHP (1989.10 - 1993.11) , \n - Toyota/Celica/2.0 GTi (ST183)/1990.10-1993.10/3S-GE 1998 Petrol 118 kW 160 BHP (1990.10 - 1993.10) , \n - Toyota/Celica/2.0 (ST182. ST183)/1989.10-1993.09/3S-GE 1998 Petrol 123 kW 167 BHP (1989.10 - 1993.09) , \n - Toyota/Celica/2.0 4WD (ST185)/1989.10-1993.11/3S-GTE 1998 Petrol 150 kW 204 BHP (1989.10 - 1993.11) , \n - Toyota/Celica/2.0 4WD (ST185)/1989.10-1994.01/3S-GTE 1998 Petrol 153 kW 208 BHP (1989.10 - 1994.01) , \n - Toyota/Celica/2.0 4WD (ST185)/1989.10-1993.09/3S-GTE 1998 Petrol 165 kW 224 BHP (1989.10 - 1993.09) , \n - Toyota/MR2/Gen. II | 2.0 (SW20)/1989.12-1999.07/3S-GTE 1998 Petrol 165 kW 225 BHP (1989.12 - 1999.07) , \n - Toyota/MR2/Gen. II | 2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 167 kW 227 BHP (1989.12 - 1999.07) , \n - Toyota/Celica/2.0 i Turbo 4WD (ST205)/1994.02-1999.11/3S-GTE 1998 Petrol 178 kW 242 BHP (1994.02 - 1999.11) , \n - Toyota/MR2/Gen. II | 2.0 Turbo (SW20_)/1989.12-1999.07/3S-GTE 1998 Petrol 180 kW 245 BHP (1989.12 - 1999.07) , \n - Toyota/Caldina/2.0 4WD (ST215W_)/2000.02-2001.09/3S-GTE 1998 Petrol 192 kW 261 BHP (2000.02 - 2001.09) , \n - Toyota/Camry/3.0 (VCV10_)/1991.06-1996.08/3VZ-FE 2959 Petrol 138 kW 188 BHP (1991.06 - 1996.08) , \n - Toyota/Camry/3.0 (VCV10)/1995.06-1996.09/3VZ-FE 2959 Petrol 140 kW 190 BHP (1995.06 - 1996.09) ,

Additional Info

Clutch Disc Diameter (mm): 232\nClutch Disc Spline Count: 21\nClutch Disc Spline Diameter (mm): 29\nTorque (Nm): 630\nFlywheel Step: +0.5mm\nDesign: Single Plate\nStage: Stage 2\nTech Bulletins: \nClamp Load: 820Kg (30% inc.)\nRecommended for: Track - Stage 2\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Toyota Celica 2.0 GTi (ST183)

Additional info: Parameter 1: 630 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Toyota Celica 2.0 GTi (ST183) (1990.10-1993.10)	3S-GE 1998 Petrol 118 kW 160 BHP (1990.10 - 1993.10)			630	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
