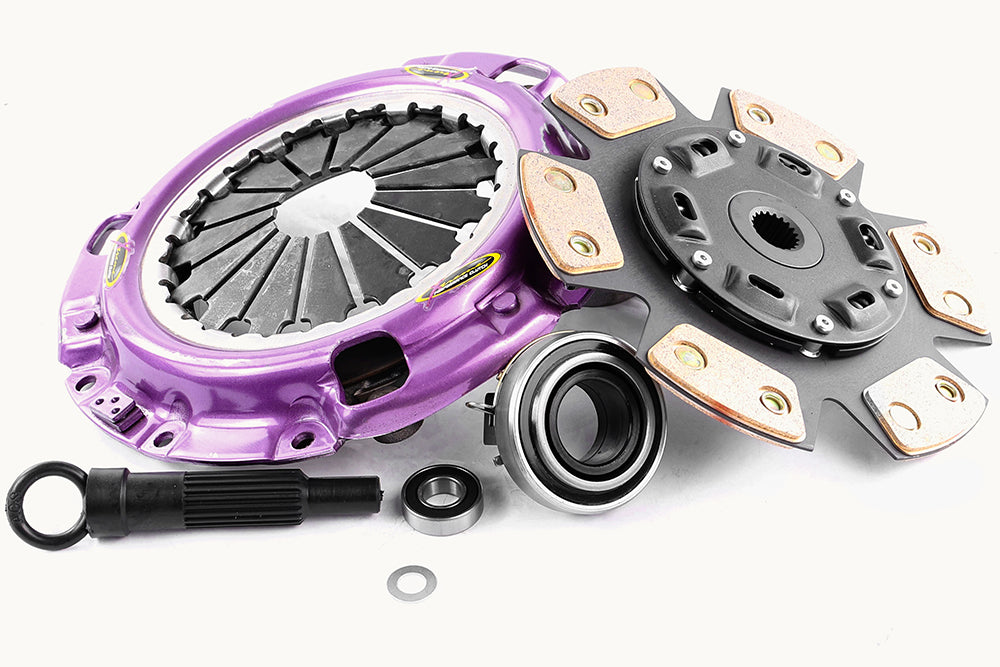

Xtreme Performance Clutch Kit Heavy Duty Sprung Ceramic 630Nm 900kg (20% inc.) - Mitsubishi Lancer EVO I (CD9A) (92-93)

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 630Nm
• Clamp load 900kg 20% Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Mitsubishi/Galant/Gen. VII | 2.0 GLSTD (E57A)/1992.11-1996.08/4D68 T 1998 Diesel 66 kW 90 BHP (1992.11 - 1996.08) , \n - Mitsubishi/Lancer/EVO I (CD9A)/1992.10-1993.12/4G63 Turbo 1997 Petrol 184 kW 250 BHP (1992.10 - 1993.12) , \n - Mitsubishi/Lancer/EVO II (CE9A)/1994.01-1995.07/4G63 Turbo 1997 Petrol 192 kW 261 BHP (1994.01 - 1995.07) , \n - Mitsubishi/Lancer/EVO III (CE9A)/1995.08-1996.07/4G63 Turbo 1997 Petrol 198 kW 269 BHP (1995.08 - 1996.07) , \n - Mitsubishi/Galant/Gen. VI | 2.0 GTI 16V Cat 4WD (E38A. E39A. E33A)/1990.10-1993.03/4G63-T (DOHC 16V) 1997 Petrol 148 kW 201 BHP (1990.10 - 1993.03) , \n - Mitsubishi/Lancer/1.8 EVO AWD/1992.11-1994.08/4G93 (DOHC 16V) 1834 Petrol 189 kW 257 BHP (1992.11 - 1994.08) , \n - Mitsubishi/Lancer/1.8 i Turbo AWD (CD5A)/1992.11-1996.07/4G93T 1834 Petrol 141 kW 192 BHP (1992.11 - 1996.07) , \n - Mitsubishi/Galant/Gen. VII | 2.0 V6-24 (E64A. E54A)/1992.11-1996.08/6A12 1999 Petrol 110 kW 150 BHP (1992.11 - 1996.08) , \n - Mitsubishi/GTO/3.0 AWD/1989.06-1996.04/6G72 (DOHC 24V) 2972 Petrol 165 kW 224 BHP (1989.06 - 1996.04) ,

Additional Info

Clutch Disc Diameter (mm): 225\nClutch Disc Spline Count: 20\nClutch Disc Spline Diameter (mm): 22.4\nTorque (Nm): 630\nFlywheel Step: -15.5mm/.610""\nDesign: Single Plate\nStage: Stage 2\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-MI02.pdf' target='_blank'>TSB-MI02</a>\nClamp Load: 900Kg (20% inc.)\nRecommended for: Track - Stage 2\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Mitsubishi Lancer EVO I (CD9A)

Additional info: Parameter 1: 630 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Mitsubishi Lancer EVO I (CD9A) (1992.10-1993.12)	4G63 Turbo 1997 Petrol 184 kW 250 BHP (1992.10 - 1993.12)			630	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
