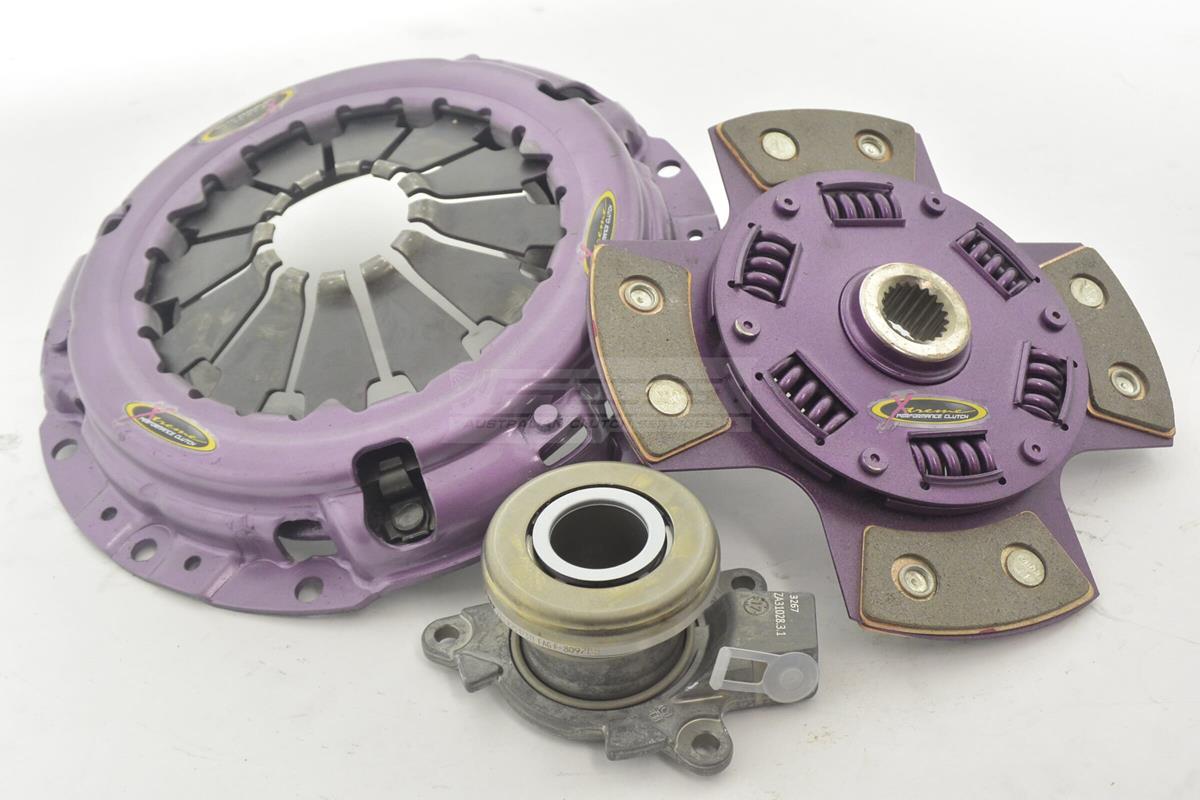

Xtreme Performance Clutch Kit Heavy Duty Sprung Ceramic Incl CSC 390Nm 600 kg - Suzuki SX4 1.6 AWD (RW 416) (07-11)

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 390Nm
• Clamp load 600kg Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Suzuki/SX4/1.5 (RW 415)/2006.06-2010.07/M15A 1490 Petrol 73 kW 99 BHP (2006.06 - 2010.07) , \n - Suzuki/SX4/1.5 VVT (RW 415)/2010.07-2013/M15A 1490 Petrol 82 kW 112 BHP (2010.07 - 2013) , \n - Suzuki/SX4/1.6 (RW 416)/2006.06-2010/M16A 1586 Petrol 74 kW 101 BHP (2006.06 - 2010) , \n - Suzuki/SX4/1.6 VVT (RW 416)/2006.06-2010/M16A 1586 Petrol 79 kW 107 BHP (2006.06 - 2010) , \n - Suzuki/SX4/1.6 VVT 4x4 (RW 416)/2006.06-2010/M16A 1586 Petrol 79 kW 107 BHP (2006.06 - 2010) , \n - Suzuki/SX4/1.6 AWD (RW 416)/2007.10-2011.12/M16A 1586 Petrol 79 kW 107 BHP (2007.10 - 2011.12) , \n - Suzuki/SX4/1.6 (RW 416)/2007.10-2009/M16A 1586 Petrol 79 kW 107 BHP (2007.10 - 2019) , \n - Suzuki/SX4/1.6 VVT 4x4 (RW 416)/2009.07-2013/M16A 1586 Petrol 82 kW 112 BHP (2009.07 - 2013) , \n - Suzuki/SX4/1.6 VVT/2010.11-2015.12/M16A 1586 Petrol 82 kW 112 BHP (2010.11 - 2015.12) , \n - Suzuki/SX4/1.6 (RW 416)/2007.10-2013/M16A 1586 Petrol 88 kW 120 BHP (2007.10 - 2013) , \n - Suzuki/SX4/1.6 VVT (RW 416)/2009.07-2013/M16A 1586 Petrol 88 kW 120 BHP (2009.07 - 2013) , \n - Suzuki/SX4/1.6 VVT 4x4 (RW 416)/2009.07-2013/M16A 1586 Petrol 88 kW 120 BHP (2009.07 - 2013) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 20\nClutch Disc Spline Diameter (mm): 22.4\nTorque (Nm): 390\nFlywheel Step: Flat\nDesign: Single Plate\nStage: Stage 2\nTech Bulletins: \nClamp Load: 600 Kg\nRecommended for: Track - Stage 2\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Suzuki SX4 1.6 AWD (RW 416)

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Suzuki SX4 1.6 AWD (RW 416) (2007.10-2011.12)	M16A 1586 Petrol 79 kW 107 BHP (2007.10 - 2011.12)			nan	nan	nan

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
