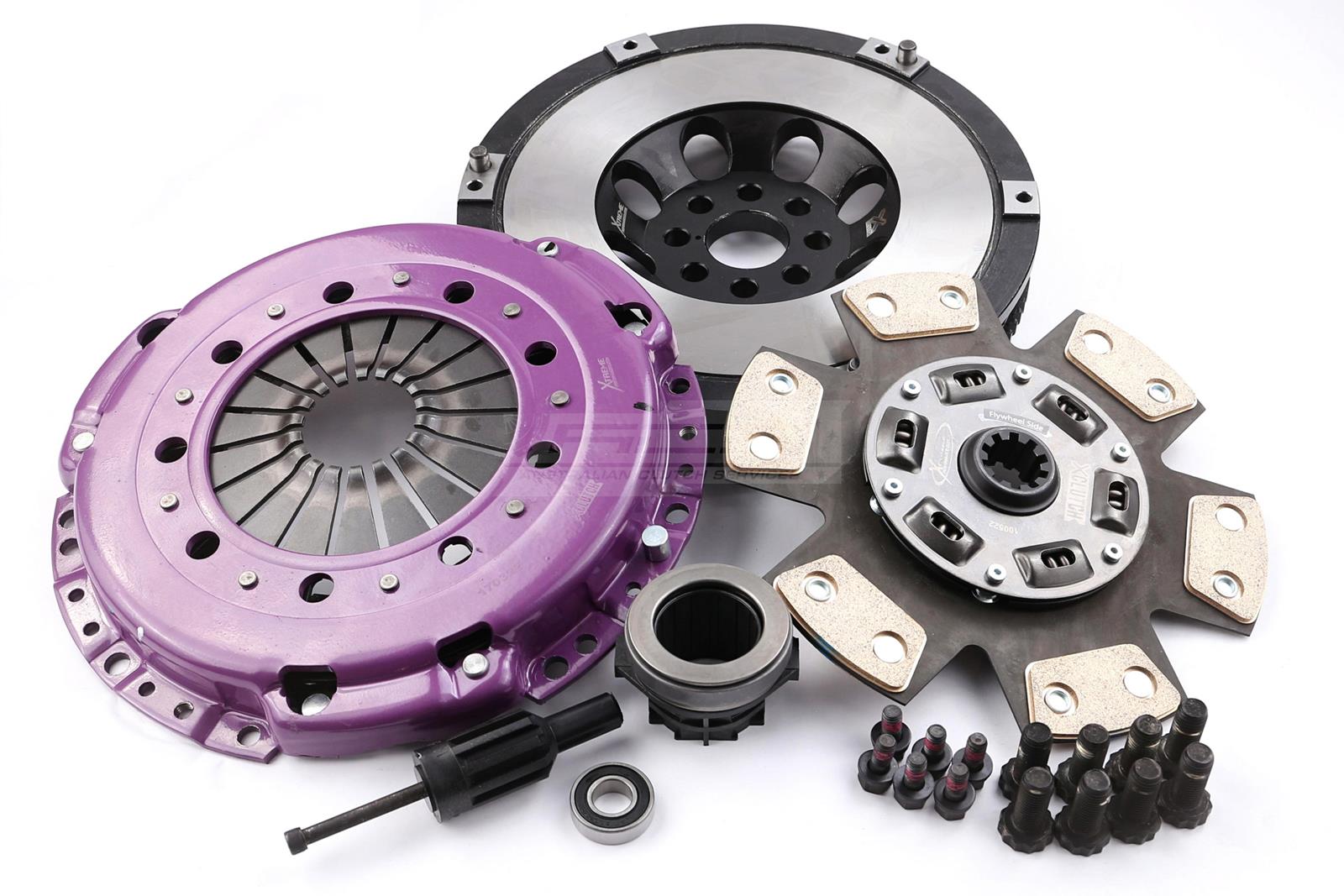

Xtreme Performance Clutch Kit Heavy Duty Sprung Ceramic Incl Flywheel 700Nm - BMW 3-Series E46 (00-98)

Recommended for: Motorsport Applications

These kits are available with sprung ceramic friction discs and are designed for motorsport applications where higher heat and torque capacity is required. These can also be used in some road applications.

• Torque capacity 700Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- BMW/5-Series/E39 | 520i/1997-2001/1990cc | 100KW | 136HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) , \n - BMW/5-Series/E39 | 520i/1996-2003/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1996-2003) , \n - BMW/5-Series/E39 | 520i/1997-2001/1990cc | 110KW | 150HP | M52 B20 (206S3);M52 B20 (206S4) (1997-2001) , \n - BMW/3-Series/E46 | 320i/1998-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1998-2000) , \n - BMW/3-Series/E46 | 320i/1999-2000/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2000) , \n - BMW/3-Series/E46 | 320Ci/1999-2001/1990cc | 110KW | 150HP | M52 B20 (206S4) (1999-2001) , \n - BMW/3-Series/E46 | 320i/2000-2005/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2005) , \n - BMW/3-Series/E46 | 320Ci/2000-2006/2171cc | 120KW | 163HP | M54 B22 (226S1) (2000-2006) , \n - BMW/5-Series/E39 | 520i/2000-2003/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2003) , \n - BMW/3-Series/E46 | 320i/2000-2005/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2005) , \n - BMW/3-Series/E46 | 320Ci/2000-2006/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2006) , \n - BMW/3-Series/E46 | 320Ci/2000-2007/2171cc | 125KW | 170HP | M54 B22 (226S1) (2000-2007) , \n - BMW/3-Series/E46 | 323i/1998-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1998-2000) , \n - BMW/3-Series/E46 | 323Ci/1999-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (1999-2000) , \n - BMW/3-Series/E46 | 323Ci/2000-2000/2494cc | 120KW | 163HP | M52 B25 (256S4) (2000-2000) , \n - BMW/3-Series/E36 | 323Ti/1997-2000/2494cc | 125KW | 170HP | M52 B25 (256S3) (1997-2000) , \n - BMW/3-Series/E46 | 323i/1998-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1998-2000) , \n - BMW/3-Series/E46 | 323Ci/1999-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (1999-2000) , \n - BMW/3-Series/E46 | 323Ci/2000-2000/2494cc | 125KW | 170HP | M52 B25 (256S4) (2000-2000) , \n - BMW/5-Series/E39 | 525i/2000-2003/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2003) , \n - BMW/3-Series/E46 | 325i/2000-2005/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2005) , \n - BMW/3-Series/E46 | 325Ci/2000-2006/2494cc | 141KW | 192HP | M54 B25 (256S5) (2000-2006) , \n - BMW/3-Series/E46 | 325Ti/2001-2004/2494cc | 141KW | 192HP | M54 B25 (256S5) (2001-2004) , \n - BMW/3-Series/E36 | 328i/1995-1998/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1998) , \n - BMW/3-Series/E36 | 328i/1995-1999/2793cc | 142KW | 193HP | M52 B28 (286S1) (1995-1999) , \n - BMW/3-Series/E46 | 328Ci/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/E46 | 328i/1998-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1998-2000) , \n - BMW/3-Series/E46 | 328i/1999-2000/2793cc | 142KW | 193HP | M52 B28 (286S2) (1999-2000) , \n - BMW/Z3/E36 | 3.0i/2000-2003/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2003) , \n - BMW/3-Series/E46 | 330i/2000-2005/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2005) 5 Speed, \n - BMW/3-Series/E46 | 330Ci/2000-2006/2979cc | 170KW | 231HP | M54 B30 (306S3) (2000-2006) 5 Speed, \n - BMW/3-Series/E36 | M3 3.0/1992-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1992-1995) , \n - BMW/3-Series/E36 | M3 3.0/1994-1995/2990cc | 210KW | 286HP | S50 B30 (306S1) (1994-1995) , \n - BMW/3-Series/E36 | M3 3.0/1993-1995/2990cc | 217KW | 295HP | S50 B30 (306S1) (1993-1995) , \n - BMW/3-Series/E36 | M3 3.2/1995-1998/3201cc | 236KW | 321HP | S50 B32 (326S1) (1995-1998) , \n - BMW/3-Series/E36 | M3 3.2/1996-1999/3201cc | 236KW | 321HP | S50 B32 (326S1) (1996-1999) , \n - BMW/Z3/E36 | M3/1997-2000/3201cc | 236KW | 321HP | S50 B32 (326S1) (1997-2000) , \n - BMW/Z3/E36 | M3/1998-2001/3201cc | 236KW | 321HP | S50 B32 (326S1);S50 B32 (326S3) (1998-2001) ,

Additional Info

Clutch Disc Diameter (mm): 240\nClutch Disc Spline Count: 10\nClutch Disc Spline Diameter (mm): 29\nTorque (Nm): 700\nFlywheel Step: -3.7mm/.145""\nDesign: Single Plate\nStage: Stage 2\nRecommended for: Track - Stage 2\nRing Gear Tooth count: \nAdditional infotmation: Conversion from dual-mass flywheel to single-mass flywheel

Single Plate - Conversion Kit to Solid Flywheel

Vehicle group: BMW 3-Series E46

Additional info: Parameter 1: 700 | Parameter 2: Track Use | Parameter 3: Conversion to Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
BMW 3-Series E46 | 320i (1998.03-2000.09)	M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1998.03 - 2000.09)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 320Ci (1999.02-2001.08)	M52 B20 (206S4) 1990 Petrol 110 kW 150 BHP (1999.02 - 2001.08)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 320i (2000.09-2005.02)	M54 B22 (226S1) 2171 Petrol 120 kW 163 BHP (2000.09 - 2005.02)		Suits vehicles manufactured until 08/2003.	700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 323i (1998.03-2000.09)	M52 B25 (256S4) 2494 Petrol 120 kW 163 BHP (1998.03 - 2000.09)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 320Ci (2000.01-2006.05)	M54 B22 (226S1) 2171 Petrol 120 kW 163 BHP (2000.01 - 2006.05)		Suits vehicles manufactured until 08/2003.	700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 323Ci (1999.04-2000.09)	M52 B25 (256S4) 2494 Petrol 120 kW 163 BHP (1999.04 - 2000.09)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 320i (2000.09-2005.02)	M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.09 - 2005.02)		Suits vehicles manufactured until 08/2003.	700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 323i (1998.03-2000.09)	M52 B25 (256S4) 2494 Petrol 125 kW 170 BHP (1998.03 - 2000.09)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 320Ci (2000.01-2007.12)	M54 B22 (226S1) 2171 Petrol 125 kW 170 BHP (2000.01 - 2006.05)		Suits vehicles manufactured until 08/2003.	700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 323Ci (1999.04-2000.09)	M52 B25 (256S4) 2494 Petrol 125 kW 170 BHP (1999.04 - 2000.09)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 325 ti (2001.04-2004.12)	M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2001.04 - 2004.12)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 325i (2000.09-2005.02)	M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2000.09 - 2005.02)		Suits vehicles manufactured until 08/2003.	700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 325Ci (2000.09-2006.08)	M54 B25 (256S5) 2494 Petrol 141 kW 192 BHP (2000.09 - 2006.08)		Suits vehicles manufactured until 08/2003.	700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 328i (1998.02-2000.06)	M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1998.02 - 2000.06)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 328Ci (1998.12-2000.05)	M52 B28 (286S2) 2793 Petrol 142 kW 193 BHP (1998.12 - 2000.05)			700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 330i (2000.06-2005.02)	M54 B30 (306S3) 2979 Petrol 170 kW 231 BHP (2000.06 - 2005.02)	Suits 5 Speed Gearbox.	Suits vehicles manufactured until 02/2003.	700	Track Use	Conversion to Single Mass Flywheel
BMW 3-Series E46 | 330Ci (2000.06-2006.08)	M54 B30 (306S3) 2979 Petrol 170 kW 231 BHP (2000.06 - 2006.08)	Suits 5 Speed Gearbox.	Suits vehicles manufactured until 02/2003.	700	Track Use	Conversion to Single Mass Flywheel

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
