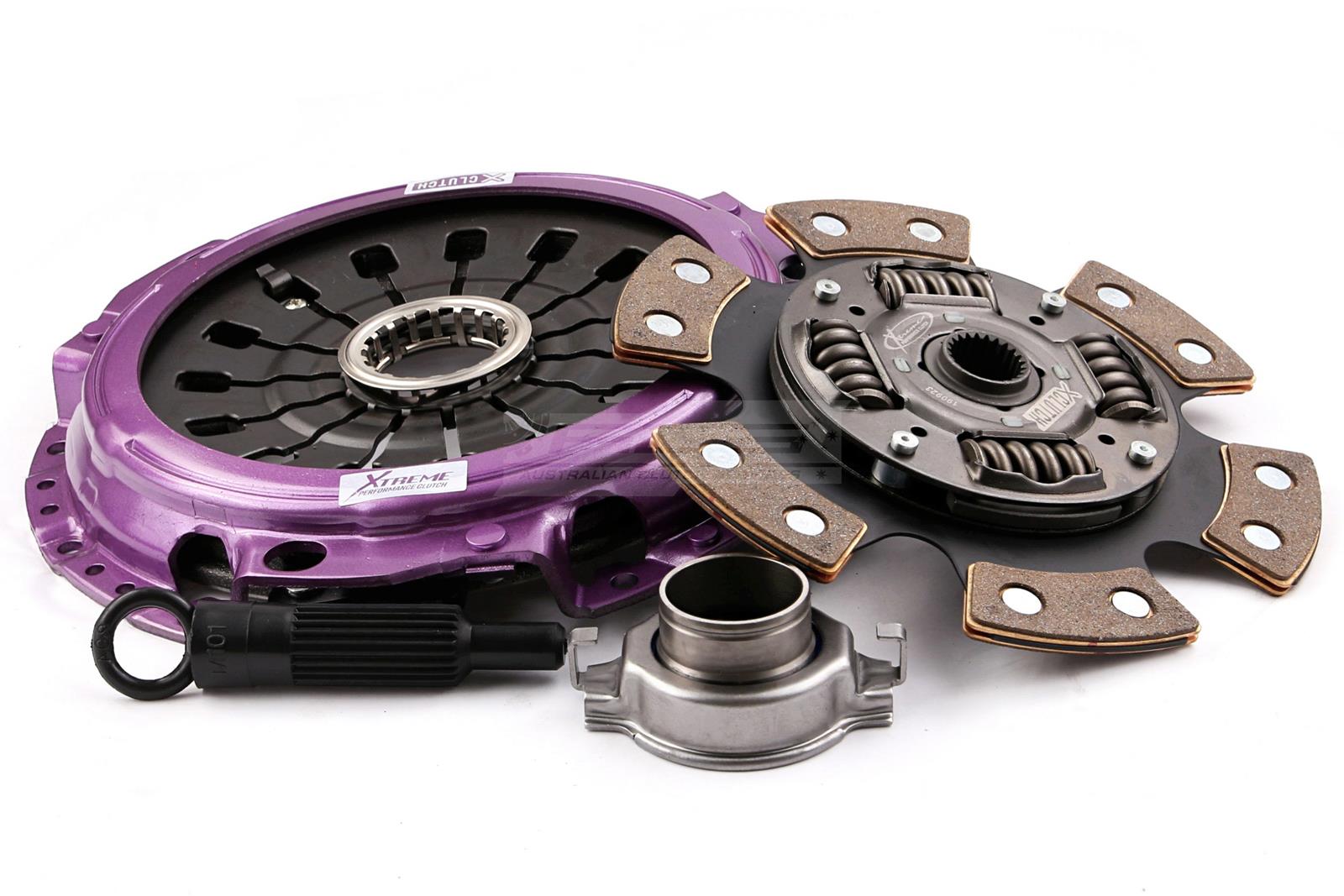

Xtreme Performance Clutch Kit Race Sprung Ceramic 1120Kg 670Nm - Mitsubishi Magna 3.5 Series II Sports VR-X (TJ) (02-03)

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 670Nm
• Clamp load 1120Kg Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Mitsubishi/Magna/3.5i Series II Sports AWD (TJ)/2002.07-2003.05/3497 Petrol 159 kW 216 BHP (2002.07 - 2003.05) , \n - Mitsubishi/Galant/Gen. VIII | 2.5 V6 24V/1996.09-2002.10/6A13TT 2498 Petrol 206 kW 280 BHP (1996.09 - 2002.10) , \n - Mitsubishi/Magna/3.5 LPG (TJ)/2002.07-2005.06/6G74 (SOHC 24V) 3497 Petrol 143 kW 194 BHP (2002.07 - 2005.06) , \n - Mitsubishi/Magna/3.5 (TH)/1999.03-2000.08/6G74 (SOHC 24V) 3497 Petrol 147 kW 200 BHP (1999.03 - 2000.08) , \n - Mitsubishi/Magna/3.5i (TH)/1999.03-2000.08/6G74 (SOHC 24V) 3497 Petrol 147 kW 200 BHP (1999.03 - 2000.08) , \n - Mitsubishi/Magna/3.5 (TJ)/2000.08-2003.05/6G74 (SOHC 24V) 3497 Petrol 147 kW 200 BHP (2000.08 - 2003.05) , \n - Mitsubishi/Magna/3.5i (TJ)/2000.08-2003.05/6G74 (SOHC 24V) 3497 Petrol 155 kW 211 BHP (2000.08 - 2003.05) , \n - Mitsubishi/Magna/3.5i (TW)/2003.06-2005.07/6G74 (SOHC 24V) 3497 Petrol 155 kW 211 BHP (2003.06 - 2005.07) , \n - Mitsubishi/Magna/3.5i (TW)/2004.10-2005.07/6G74 (SOHC 24V) 3497 Petrol 157 kW 214 BHP (2004.10 - 2005.07) , \n - Mitsubishi/Magna/3.5i Sports VR-X (TJ)/2000.08-2003.05/6G74 (SOHC 24V) 3497 Petrol 163 kW 222 BHP (2000.08 - 2003.05) , \n - Mitsubishi/Magna/3.5 Series II Sports VR-X (TJ)/2002.08-2003.05/6G74 (SOHC 24V) 3497 Petrol 163 kW 222 BHP (2002.08 - 2003.05) , \n - Mitsubishi/Magna/3.5i VR-X (TW)/2003.06-2005.07/6G74 (SOHC 24V) 3497 Petrol 163 kW 222 BHP (2003.06 - 2005.07) , \n - Mitsubishi/Magna/3.5i Series II Ralliart (TJ)/2002.08-2003.05/6G74 (SOHC 24V) 3497 Petrol 180 kW 245 BHP (2002.08 - 2003.05) ,

Additional Info

Clutch Disc Diameter (mm): 240\nClutch Disc Spline Count: 23\nClutch Disc Spline Diameter (mm): 26.1\nTorque (Nm): 670\nFlywheel Step: 0\nDesign: Single Plate\nStage: Stage 2R\nTech Bulletins: \nClamp Load: 1120Kg\nRecommended for: Race Vehicles - Stage 2R\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Mitsubishi Magna 3.5 Series II Sports VR-X (TJ)

Additional info: Parameter 1: 670 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Mitsubishi Magna 3.5 Series II Sports VR-X (TJ) (2002.08-2003.05)	6G74 (SOHC 24V) 3497 Petrol 163 kW 222 BHP (2002.08 - 2003.05)			670	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
