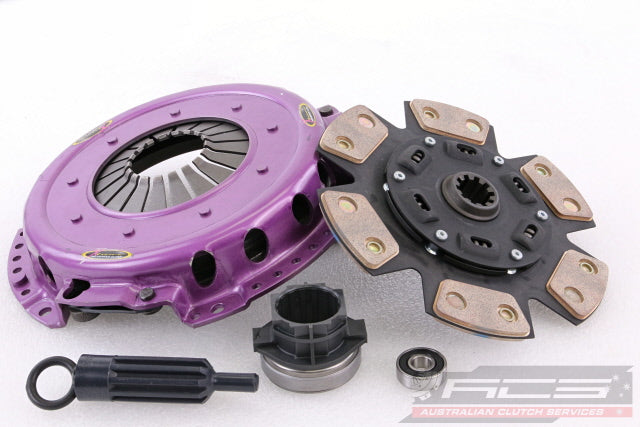

Xtreme Performance Clutch Kit Race Sprung Ceramic 1150Kg 640Nm - BMW 3-Series E30 (83-88)

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 640Nm
• Clamp load 1150Kg Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- BMW/5-Series/E28 | 520i/1981-1987/1990cc | 92KW | 125HP | M20 B20 (206EA);M20 B20 (206EB);M20 B20 (206EC);M20 B20 (206EZ) (1981-1987) , \n - BMW/3-Series/E30 | 320i/1982-1991/1990cc | 92KW | 125HP | M20 B20 (206EB) (1982-1991) , \n - BMW/3-Series/E30 | 320i/1986-1991/1990cc | 95KW | 129HP | M20 B20 (206KA) (1986-1991) , \n - BMW/3-Series/E30 | 320i/1986-1993/1990cc | 95KW | 129HP | M20 B20 (206KA) (1986-1993) , \n - BMW/5-Series/E24 | 520i/1987-1990/1990cc | 95KW | 129HP | M20 B20 (206KA) (1987-1990) , \n - BMW/3-Series/E30 | 320i/1988-1991/1991cc | 95KW | 129HP | M20 B20 (206KA) (1988-1991) , \n - BMW/3-Series/E30 | 325i/1986-1991/2494cc | 125KW | 170HP | M20 B25 (256E1);M20 B25 (256E2);M20 B25 (256EX);M20 B25 (256K1) (1986-1991) , \n - BMW/3-Series/E30 | 325i/1987-1993/2494cc | 125KW | 170HP | M20 B25 (256E2);M20 B25 (256EX);M20 B25 (256K1) (1987-1993) , \n - BMW/3-Series/E30 | 325i/1987-1993/2494cc | 125KW | 170HP | M20 B25 (256K1) (1987-1993) , \n - BMW/3-Series/E30 | 325i/1983-1989/2494cc | 126KW | 171HP | M20 B25 (256E2) (1983-1989) , \n - BMW/3-Series/E30 | 325i/1985-1987/2494cc | 126KW | 171HP | M20 B25 (256E2) (1985-1987) , \n - BMW/3-Series/E30 | 325E 2.7/1983-1988/2693cc | 90KW | 122HP | M20 B27 (276KA);M20 B27 (276KB) (1983-1988) , \n - BMW/3-Series/E30 | 325E 2.7/1985-1987/2693cc | 95KW | 129HP | M20 B27 (276KB) (1985-1987) ,

Additional Info

Clutch Disc Diameter (mm): 228\nClutch Disc Spline Count: 10\nClutch Disc Spline Diameter (mm): 29\nTorque (Nm): 640\nFlywheel Step: +.25mm/.010""\nDesign: Single Plate\nStage: Stage 2R\nTech Bulletins: \nClamp Load: 1150Kg\nRecommended for: Race Vehicles - Stage 2R\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: BMW 3-Series E30

Additional info: Parameter 1: 640 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
BMW 3-Series E30 | 325e 2.7 (1983.10-1988.12)	M20 B27 (276KA), M20 B27 (276KB) 2693 Petrol 90 kW 122 BHP (1983.10 - 1988.12)			640	Track Use	Not included
BMW 3-Series E30 | 320i (1982.09-1991.12)	M20 B20 (206EB) 1990 Petrol 92 kW 125 BHP (1982.09 - 1991.12)		Suits vehicles manufactured from 01/1985.	640	Track Use	Not included
BMW 3-Series E30 | 320i (1987.07-1993.10)	M20 B20 (206KA) 1990 Petrol 93 kW 126 BHP (1987.07 - 1993.10)			640	Track Use	Not included
BMW 3-Series E30 | 320i (1986.05-1993.11)	M20 B20 (206KA) 1990 Petrol 95 kW 129 BHP (1986.05 - 1993.11)			640	Track Use	Not included
BMW 3-Series E30 | 325e 2.7 (1985.01-1987.08)	M20 B27 (276KB) 2693 Petrol 95 kW 129 BHP (1985.01 - 1987.08)			640	Track Use	Not included
BMW 3-Series E30 | 323i (1983.09-1986.09)	M20 B23 (236EC), M20 B23 (236EW) 2316 Petrol 110 kW 150 BHP (1983.09 - 1986.09)		Suits vehicles manufactured from 04/1984.	640	Track Use	Not included
BMW 3-Series E30 | 325i (1986.12-1991.06)	M20 B25 (256E1), M20 B25 (256E2), M20 B25 (256EX), M20 B25 (256K1) 2494 Petrol 125 kW 170 BHP (1986.12 - 1991.06)			640	Track Use	Not included
BMW 3-Series E30 | 325i (1987.08-1993.11)	M20 B25 (256E2), M20 B25 (256EX), M20 B25 (256K1) 2494 Petrol 125 kW 170 BHP (1987.08 - 1993.11)			640	Track Use	Not included
BMW 3-Series E30 | 325i (1983.09-1989.11)	M20 B25 (256E1), M20 B25 (256E2) 2494 Petrol 126 kW 171 BHP (1983.09 - 1989.11)			640	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
