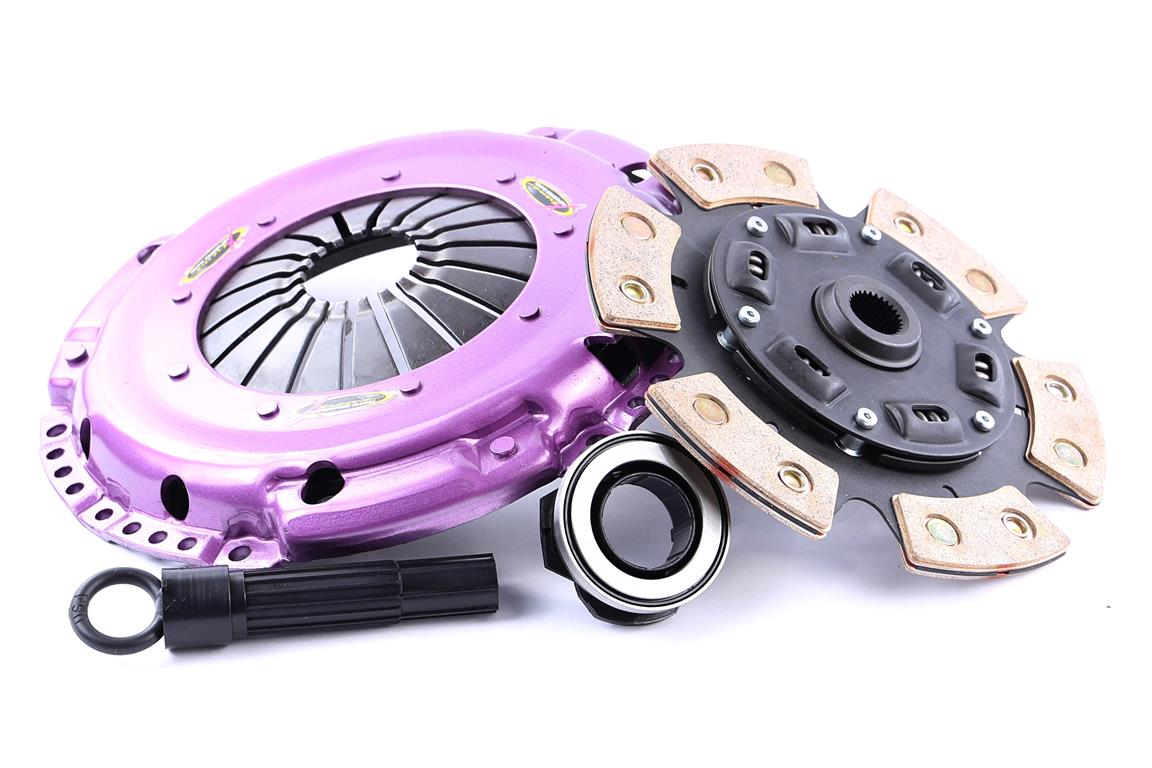

Xtreme Performance Clutch Kit Race Sprung Ceramic 1200Kg (70% inc) 800Nm - Volkswagen Transporter T4 (90-92)

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 800Nm
• Clamp load 1200Kg 70% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Volkswagen/Passat/B3/B4 | 2.0/1990.02-1997.05/2E, ADY, AGG 1984 Petrol 85 kW 115 BHP (1990.02 - 1997.05) , \n - Volkswagen/Passat/B3/B4 | 2.0 16V/1988.08-1993.09/9A 1984 Petrol 100 kW 136 BHP (1988.08 - 1993.09) , \n - Volkswagen/Passat/B3/B4 | 2.8 VR6/1991.06-1996.08/AAA 2792 Petrol 128 kW 174 BHP (1991.06 - 1996.08) , \n - Volkswagen/Golf/Gen. III | 2.8 VR6/1992.01-1997.08/AAA 2792 Petrol 128 kW 174 BHP (1992.01 - 1997.08) , \n - Volkswagen/Golf/Gen. III | 2.0 GTI 16V/1992.08-1997.08/ABF 1984 Petrol 110 kW 150 BHP (1992.08 - 1997.08) , \n - Seat/Toledo/Gen. I | 2.0 i 16V/1993.11-1999.03/ABF 1984 Petrol 110 kW 150 BHP (1993.11 - 1999.03) , \n - Seat/Ibiza/Gen. II | 2.0 i 16V/1996.08-1999.08/ABF 1984 Petrol 110 kW 150 BHP (1996.08 - 1999.08) , \n - Volkswagen/Passat/B3/B4 | 1.8 16V/1988.04-1989.12/KR 1781 Petrol 100 kW 136 BHP (1988.04 - 1989.12) ,

Additional Info

Clutch Disc Diameter (mm): 228\nClutch Disc Spline Count: 28\nClutch Disc Spline Diameter (mm): 22.1\nTorque (Nm): 800\nFlywheel Step: -12.4mm/.488""\nDesign: Single Plate\nStage: Stage 2R\nTech Bulletins: \nClamp Load: 1200Kg (70% inc)\nRecommended for: Race Vehicles - Stage 2R\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Volkswagen Transporter T4

Additional info: Parameter 1: 800 | Parameter 2: Street Upgrade | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Volkswagen Transporter T4 | 1.8 (1990.12-1992.07)	PD 1781 Petrol 49 kW 67 BHP (1990.12 - 1992.07)			800	Street Upgrade	Not included
Volkswagen Transporter T4 | 2.4 D Syncro (1992.10-1998.09)	AAB 2370 Diesel 57 kW 78 BHP (1992.10 - 1998.09)		Engine no. to: 370180	800	Street Upgrade	Not included
Volkswagen Transporter T4 | 2.4 D (1990.09-1998.04)	AAB 2370 Diesel 57 kW 78 BHP (1990.09 - 1998.04)		Engine no. to: 370180	800	Street Upgrade	Not included
Volkswagen Transporter T4 | 2.0 (1990.07-2003.04)	AAC 1968 Petrol 62 kW 84 BHP (1990.07 - 2003.04)			800	Street Upgrade	Not included
Volkswagen Transporter T4 | 2.5 Syncro (1992.11-2001.11)	AAF, ACU, AEU 2461 Petrol 81 kW 110 BHP (1992.11 - 2001.11)			800	Street Upgrade	Not included
Volkswagen Transporter T4 | 2.5 (1990.11-2003.04)	AAF, ACU, AEN, AEU 2461 Petrol 81 kW 110 BHP (1990.11 - 2003.04)			800	Street Upgrade	Not included
Volkswagen Transporter T4 | 2.5 Syncro (1996.08-2003.04)	AET, APL, AVT 2461 Petrol 85 kW 115 BHP (1996.08 - 2003.04)			800	Street Upgrade	Not included
Volkswagen Transporter T4 | 2.5 (1996.08-2003.04)	AET, APL, AVT 2461 Petrol 85 kW 115 BHP (1996.08 - 2003.04)			800	Street Upgrade	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
