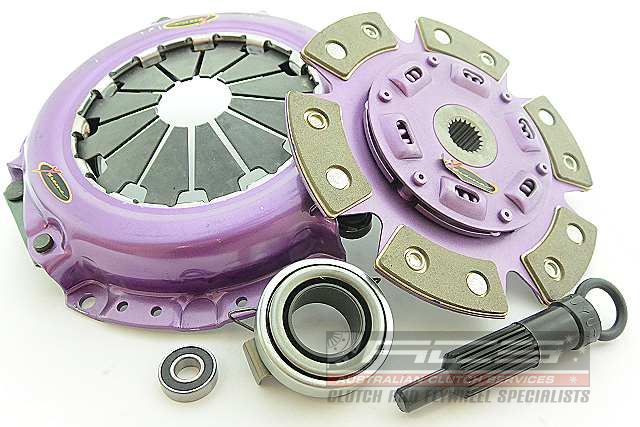

Xtreme Performance Clutch Kit Race Sprung Ceramic 750Kg 750Nm - Toyota Corolla E9 (87-92)

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 750Nm
• Clamp load 750Kg Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Toyota/Starlet/1.5 D (NP70L)/1986.12-1989.12/1N 1453 Diesel 40 kW 54 BHP (1986.12 - 1989.12) , \n - Toyota/Corolla/1.3 i (EE90)/1987.08-1992.04/2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04) , \n - Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.11-1990.06/4A-GEL 1587 Petrol 91 kW 124 BHP (1984.11 - 1990.06) , \n - Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.06-1989.11/4A-GEL 1587 Petrol 96 kW 131 BHP (1984.06 - 1989.11) , \n - Toyota/MR2/Gen. I | 1.6 (AW11)/1984.11-1989.12/4A-GELC 1587 Petrol 80 kW 109 BHP (1984.11 - 1989.12) , \n - Toyota/MR2/Gen. I | 1.6 16V (AW11)/1984.11-1990.06/4A-GELC 1587 Petrol 85 kW 116 BHP (1984.11 - 1990.06) , \n - Toyota/Corolla/1.6 (AE82)/1983.06-1987.08/4A-L 1587 Petrol 62 kW 84 BHP (1983.06 - 1987.08) , \n - Toyota/Corolla/1.6 (AE82)/1985.08-1987.08/4A-LC 1587 Petrol 54 kW 73 BHP (1985.08 - 1987.08) , \n - Toyota/Carina/1.6 (AT151_)/1983.10-1987.11/4A-LC 1587 Petrol 55 kW 75 BHP (1983.10 - 1987.11) ,

Additional Info

Clutch Disc Diameter (mm): 215\nClutch Disc Spline Count: 21\nClutch Disc Spline Diameter (mm): 23.8\nTorque (Nm): 750\nFlywheel Step: +.5mm/.020""\nDesign: Single Plate\nStage: Stage 2R\nTech Bulletins: \nClamp Load: 750Kg\nRecommended for: Race Vehicles - Stage 2R\nRing Gear Tooth count: \nAdditional infotmation:

Single Plate

Vehicle group: Toyota Corolla E9

Additional info: Parameter 1: 750 | Parameter 2: Track Use | Parameter 3: Not included

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Toyota Corolla E9 | 1.3 (EE90) (1987.08-1992.04)	2E, 2E-E 1296 Petrol 55 kW 75 BHP (1987.08 - 1992.04)			750	Track Use	Not included

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
