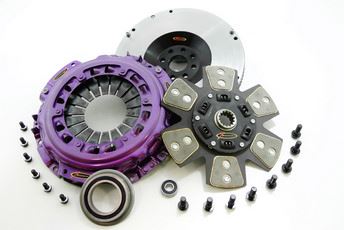

Xtreme Performance Clutch Kit Race Sprung Ceramic Incl Flywheel 1500kg (50% inc) 1070Nm - Toyota Supra 3.0 i Bi-Turbo (JZA80_) (02-93)

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 1070Nm
• Clamp load 1500kg 50% Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1993.05-2002.07/2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07) , \n - Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1994.03-2002.07/2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07) , \n - Toyota/Supra/3.0 i Bi-Turbo (JZA80_)/1993.05-2002.07/2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07) ,

Additional Info

Clutch Disc Diameter (mm): 250\nClutch Disc Spline Count: 14\nClutch Disc Spline Diameter (mm): 32\nTorque (Nm): 1070\nFlywheel Step: 0\nDesign: Single Plate\nStage: Stage 2R\nTech Bulletins: \nClamp Load: 1500kg (50% inc)\nRecommended for: Race Vehicles - Stage 2R\nRing Gear Tooth count: \nAdditional infotmation: Conversion from dual-mass flywheel to single-mass flywheel

Single Plate - Conversion Kit to Solid Flywheel

Vehicle group: Toyota Supra 3.0 i Bi-Turbo (JZA80_)

Additional info: Parameter 1: 1070 | Parameter 2: Track Use | Parameter 3: Conversion to Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1993.05-2002.07)	2JZ-GTE 2997 Petrol 210 kW 286 BHP (1993.05 - 2002.07)			1070	Track Use	Conversion to Single Mass Flywheel
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1994.03-2002.07)	2JZ-GTE 2997 Petrol 240 kW 326 BHP (1994.03 - 2002.07)			1070	Track Use	Conversion to Single Mass Flywheel
Toyota Supra 3.0 i Bi-Turbo (JZA80_) (1993.05-2002.07)	2JZ-GTE 2997 Petrol 243 kW 330 BHP (1993.05 - 2002.07)			1070	Track Use	Conversion to Single Mass Flywheel

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
