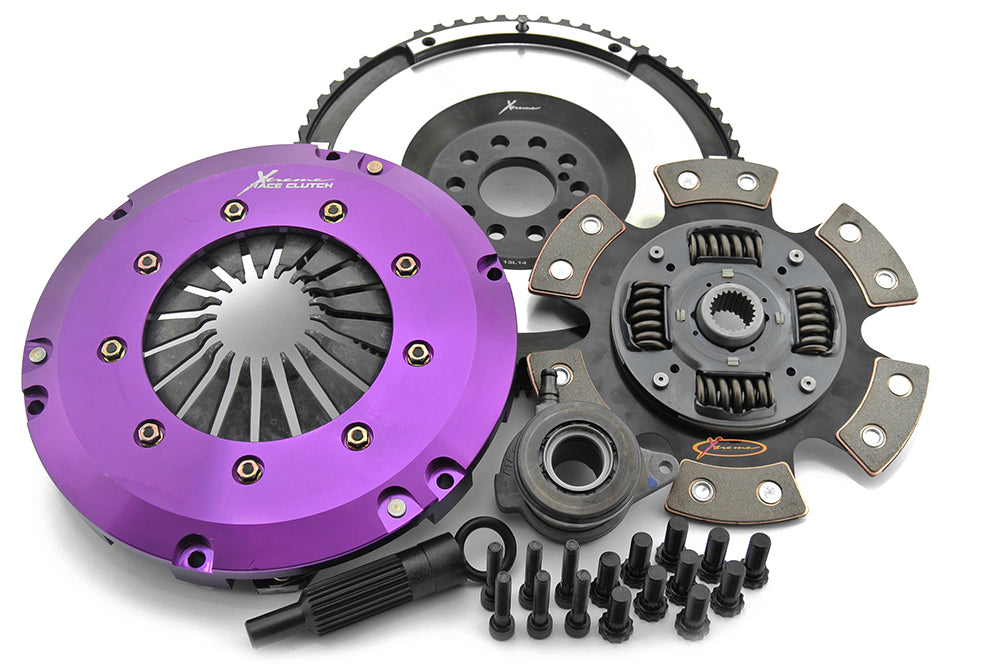

Xtreme Performance Clutch Kit Race Sprung Ceramic Incl Flywheel & CSC 910Nm - Volvo C70 T5 (06-07)

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

• Torque capacity 910Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Applications

- Volvo/XC70/2.5 T XC AWD/2002.09-2007.08/B 5254 T2 2521 Petrol 154 kW 209 BHP (2002.09 - 2007.08) , \n - Volvo/S60/2.5 T AWD/2002.07-2010.04/B 5254 T2 2521 Petrol 154 kW 210 BHP (2002.07 - 2010.04) , \n - Volvo/S40/T5/2004.01-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.01 - 2007.12) , \n - Volvo/S40/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) , \n - Volvo/V50 (545)/T5/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) , \n - Volvo/V50 (545)/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) , \n - Volvo/C70/T5/2006.03-2007.02/B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.03 - 2007.02) , \n - Volvo/C30 (533)/T5/2006.10-2012.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.10 - 2012.12) , \n - Volvo/S60/R 2.5 T AWD/2003.01-2010.04/B 5254 T4 2521 Petrol 221 kW 300 BHP (2003.01 - 2010.04) , \n - Volvo/V70/R 2.5 T AWD/2003.03-2007.08/B 5254 T4 2521 Petrol 221 kW 300 BHP (2003.03 - 2007.08) , \n - Volvo/S40/T5 AWD/2007.03-2010.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12) , \n - Volvo/V50 (545)/T5 AWD/2007.03-2010.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12) , \n - Volvo/C30 (533)/T5/2007.03-2012.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2012.12) , \n - Volvo/C70/T5/2007.03-2013.06/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2013.06) , \n - Volvo/C30 (533)/T5/2007.10-2013.12/B 5254 T7 2521 Petrol 184 kW 250 BHP (2007.10 - 2013.12) , \n - Ford/Mondeo/2.5/2007.03-2012.12/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2012.12) , \n - Ford/Mondeo/2.5/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) , \n - Ford/Mondeo/XR5 Turbo/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) , \n - Ford/S-MAX/2.5 ST/2006.05-2014.12/HUWA 2521 Petrol 162 kW 220 BHP (2006.05 - 2014.12) , \n - Ford/Focus/2.5 ST/2005.10-2012.09/HYDA 2522 Petrol 166 kW 225 BHP (2005.10 - 2012.09) , \n - Ford/Focus/2.5 RS/2009-2012/JZDA 2521 Petrol 224 kW 305 BHP (2009 - 2012) ,

Additional Info

Clutch Disc Diameter (mm): 240\nClutch Disc Spline Count: 23\nClutch Disc Spline Diameter (mm): 26\nTorque (Nm): 910\nFlywheel Step: -9.53mm\nDesign: Single Plate\nStage: Stage 2R\nTech Bulletins: \nClamp Load: \nRecommended for: Race Vehicles - Stage 2R\nRing Gear Tooth count: \nAdditional infotmation: Conversion from dual-mass flywheel to single-mass flywheel

Single Plate

Vehicle group: Volvo C70 T5

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Volvo C70 T5 (2006.03-2007.02)	B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.03 - 2007.02)			nan	nan	nan
Volvo C70 T5 (2007.03-2013.06)	B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2013.06)			nan	nan	nan

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
