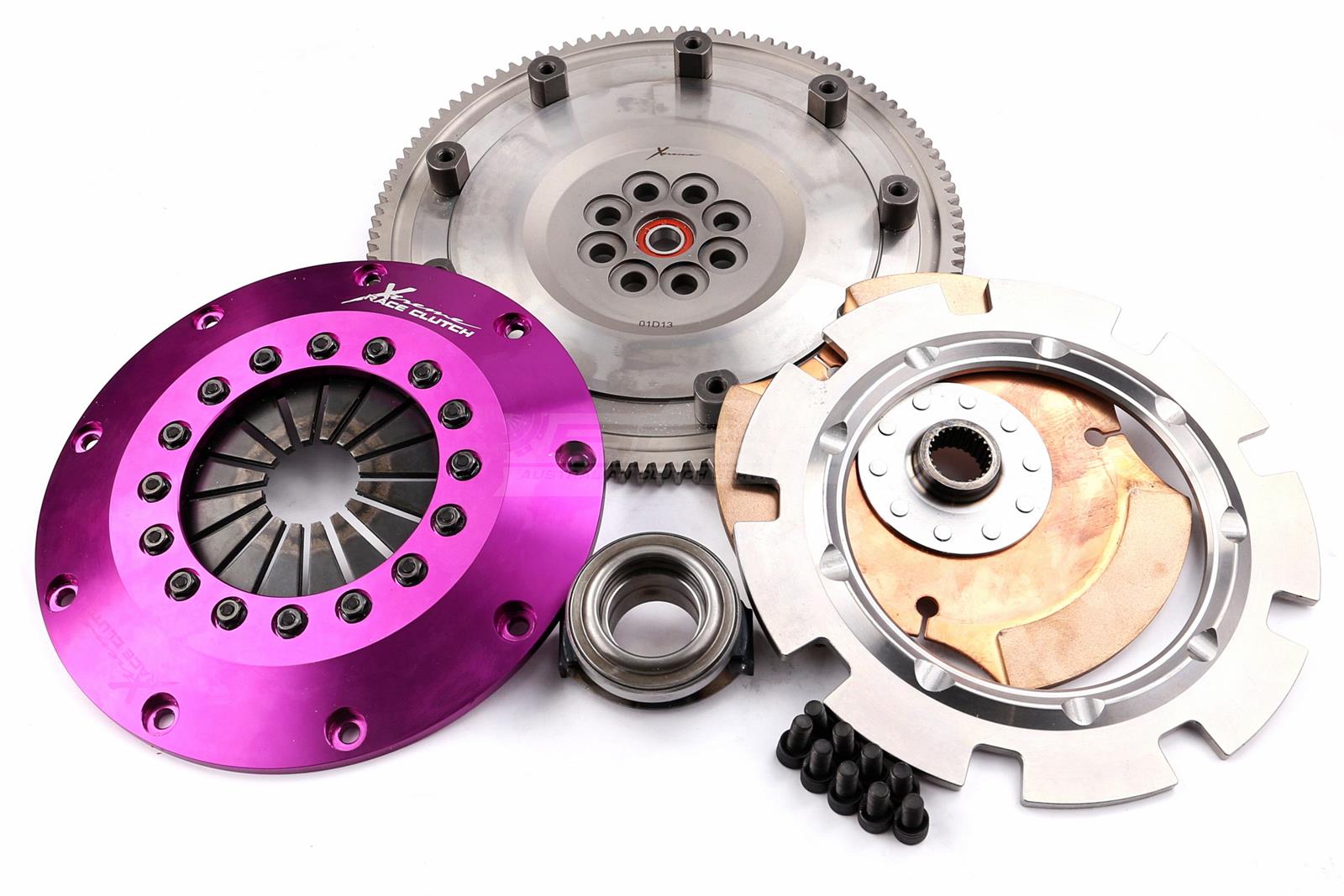

	The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality. The 200mm Race Clutch Kit’s consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
	Clamping Force 1000kg Torque Rating 900Nm Bearing Contact Diameter 44-52mm Bearing Load (@ 48mm) 218kg Release Travel Required 6mm Assembly Mass (without flywheel) 5.15kg Disc Set Static Mass 0.9kg Friction Thickness New 7mm (0.275") Friction Thickness Worn 5.7mm (0.235") Product Features: Rigid driven disc Push type billet alloy cover 4140 Chromoly pressure plate Hardened steel wear posts Low inertia Serviceable components SFI certified design

Applications

- Honda/Civic/Gen. V | 1.6 VTi (EG9)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - Honda/Civic/Gen. V | 1.6 VTi 16V (EG6)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) , \n - Honda/Civic/Gen. VI | 1.6 VTi (EK4)/1995.11-2001.02/B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) , \n - Honda/Civic/Gen. VI | 1.6 i Vtec (EM1)/1999.04-2000.12/B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) , \n - Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11) , \n - Honda/Integra/1.8 ESI (DB7)/1993.09-2001.08/B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08) , \n - Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11) , \n - Honda/Integra/1.8 VTiR (DC2)/1993.07-1999.11/B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11) , \n - Honda/Civic/Gen. VI | 1.8 16V (MB6)/1997.01-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) , \n - Honda/Civic/Gen. VI | 1.8 16V (MC2)/1998.04-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) , \n - Honda/Integra/1.8 Type-R (DC2)/1997.11-2001.10/B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10) , \n - Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1995.10-2001.12/B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12) , \n - Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1999.01-2002.02/B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02) , \n - Honda/CR-V/2.0 (RD1)/1999.04-2002.02/B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 26\nTorque (Nm): 610\nFlywheel Step: +2.2mm\nDesign: Single Plate\nStage: Track Use Only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-200-2-X.pdf' target='_blank'>TSB-200-2-X</a>\nClamp Load: 1100Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

200mm Single Plate

Vehicle group: Honda Civic Gen. VI

Additional info: Parameter 1: 610 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Honda Civic Gen. VI | 1.8 16V (MB6) (1997.01-2001.02)	B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02)			610	Motorsport	Single Mass Flywheel
Honda Civic Gen. VI | 1.8 16V (MC2) (1998.04-2001.02)	B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02)			610	Motorsport	Single Mass Flywheel
Honda Civic Gen. VI | 1.6 VTEC Type R (EK9) (1997.08-2000.09)	B16B 1595 Petrol 136 kW 185 BHP (1997.08 - 2000.09)			610	Motorsport	Single Mass Flywheel
Honda Civic Gen. VI | 1.6 VTi (EK4) (1995.11-2001.02)	B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02)			610	Motorsport	Single Mass Flywheel
Honda Civic Gen. VI | 1.6 i Vtec (EM1) (1999.04-2000.12)	B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12)			610	Motorsport	Single Mass Flywheel

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
