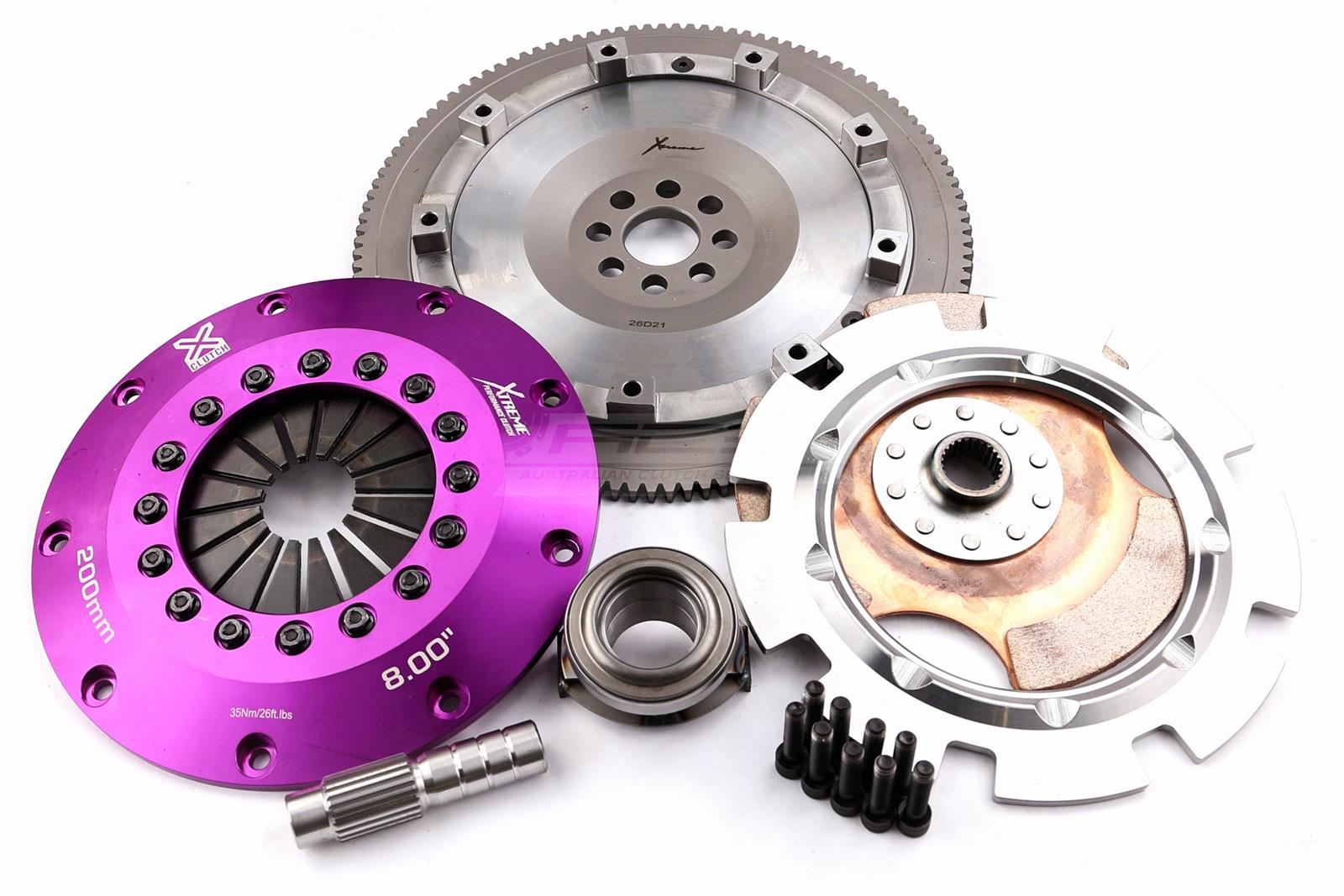

	The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality. The 200mm Race Clutch Kit’s consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
	Clamping Force 1000kg Torque Rating 900Nm Bearing Contact Diameter 44-52mm Bearing Load (@ 48mm) 218kg Release Travel Required 6mm Assembly Mass (without flywheel) 5.15kg Disc Set Static Mass 0.9kg Friction Thickness New 7mm (0.275") Friction Thickness Worn 5.7mm (0.235") Product Features: Rigid driven disc Push type billet alloy cover 4140 Chromoly pressure plate Hardened steel wear posts Low inertia Serviceable components SFI certified design

Applications

- Honda/Civic/Gen. VII | 2.0 Type-R (EP3)/2001.09-2005.09/K20A2 1998 Petrol 147 kW 200 BHP (2001.09 - 2005.09) , \n - Honda/Integra/2.0 (DC5)/2004.10-2007/K20A2 1998 Petrol 147 kW 200 BHP (2004.10 - 2007) , \n - Honda/Civic/Gen. VIII | 2.0 i-VTEC Type R (FD2)/2007.08-2010.09/K20A5 1998 Petrol 165 kW 224 BHP (2007.08 - 2010.09) , \n - Honda/Integra/2.0 Type-S/2004.10-2007.04/K20Z1 1998 Petrol 154 kW 209 BHP (2004.10 - 2007.04) , \n - Honda/Integra/2.0 16V Type-R (DC5)/2002.02-2007/K20Z1 1998 Petrol 162 kW 220 BHP (2002.02-2007) , \n - Honda/Civic/Gen. VIII | Type R (FN2)/2006.09-2012.01/K20Z4 1998 Petrol 148 kW 201 BHP (2006.09 - 2012.01) , \n - Honda/Civic/Gen. VIII | 2.0 i-VTEC Type R (FN2)/2010.03-2010.12/K20Z4 1998 Petrol 177 kW 241 BHP (2010.03 - 2010.12) ,

Additional Info

Clutch Disc Diameter (mm): 200\nClutch Disc Spline Count: 24\nClutch Disc Spline Diameter (mm): 26\nTorque (Nm): 600\nFlywheel Step: +2.2mm\nDesign: Single Plate\nStage: Track Use Only\nTech Bulletins: <a href='http://ozparts.eu/pdf/ACS-TSBs/TSB-185-2-X.pdf' target='_blank'>TSB-185-2-X</a>\nClamp Load: 1100Kg\nRecommended for: Motorsport\nRing Gear Tooth count: \nAdditional infotmation:

200mm Single Plate

Vehicle group: Honda Integra 2.0 (DC5)

Additional info: Parameter 1: 600 | Parameter 2: Motorsport | Parameter 3: Single Mass Flywheel

Fitment details:

Make / Model / Variant / Year	Engine	Description	Note	Parameter 1	Parameter 2	Parameter 3
Honda Integra 2.0 (DC5) (2004.10-)	K20A2 1998 Petrol 147 kW 200 BHP (2004.10 - )			600	Motorsport	Single Mass Flywheel

Xtreme products are special order and may be on backorder. If you require this urgently please get in touch before ordering to check stock. You will be contacted within 24 hours of your order if it is on backorder
